Low & high speeds high speed only, Diagram #8, Diagram #7 – Derale Performance High Output 17" Electric Fan__Black Steel Shroud Kit User Manual

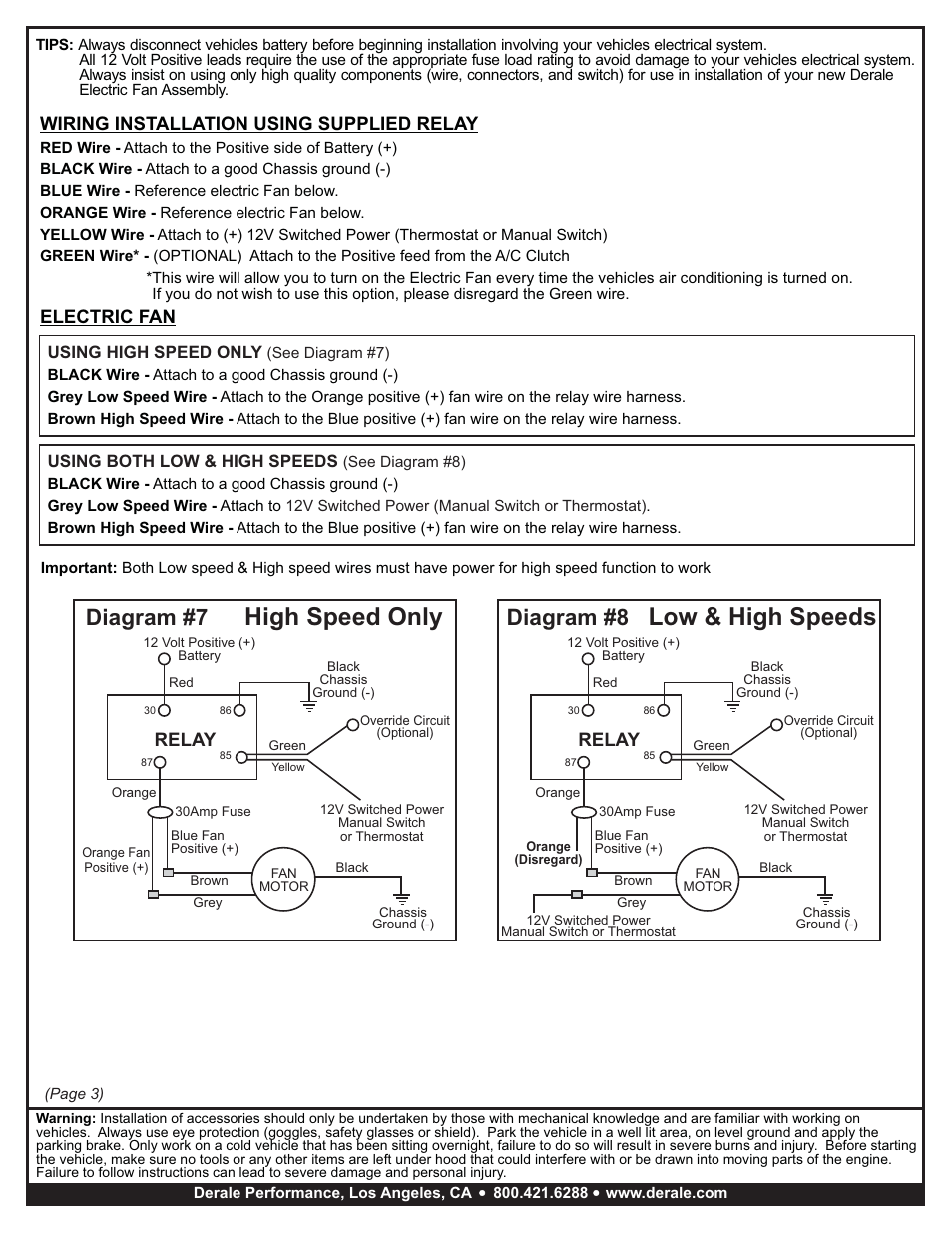

Page 3: Relay, Wiring installation using supplied relay, Electric fan
