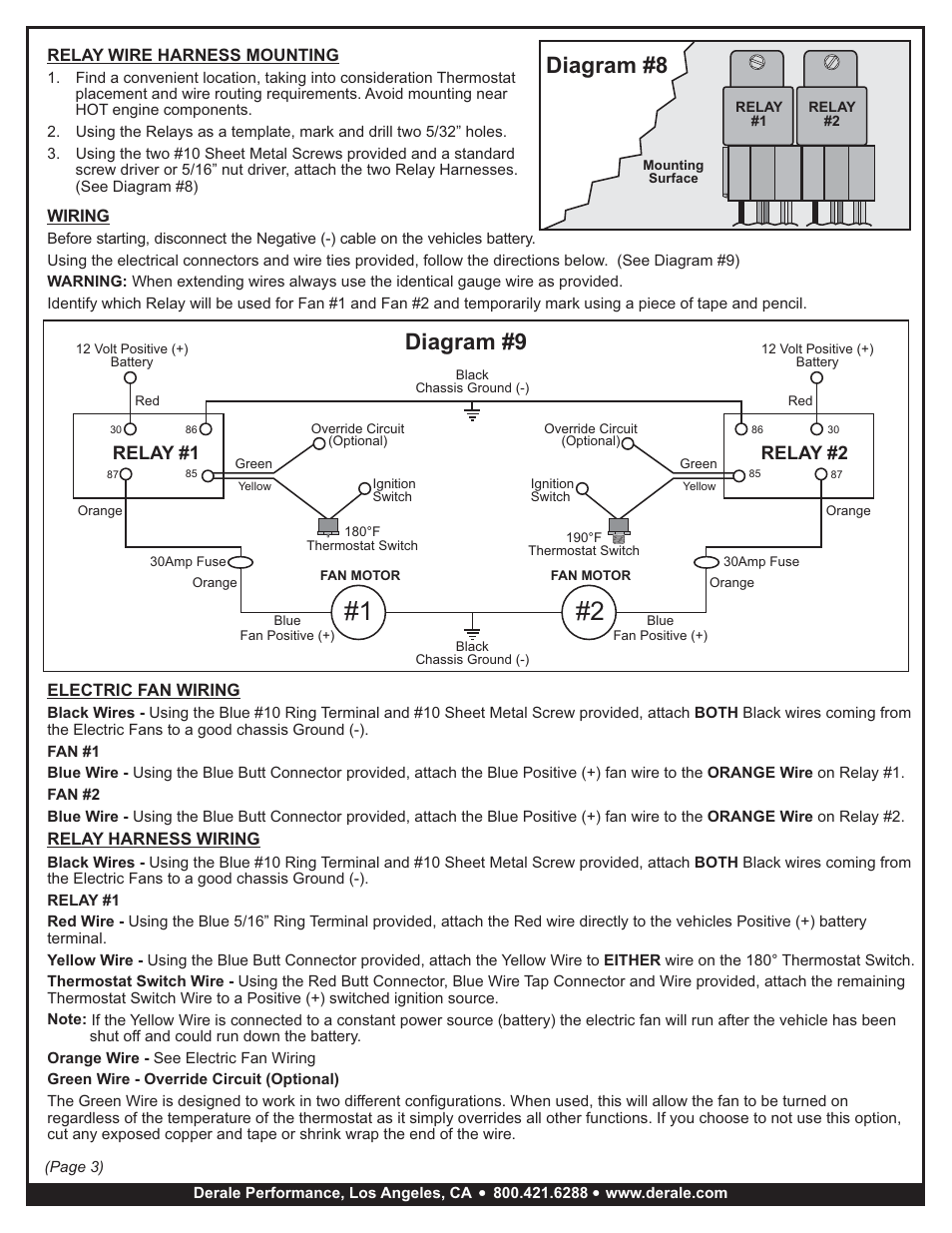

Diagram #9, Diagram #8, Relay #1 relay #2 – Derale Performance High Output Dual Rad Fan Assembly User Manual
Page 3
