Installation Instructions For The Engine Torque Dampers:

1.

Installation of the Cradle brace must be completed first.

2.

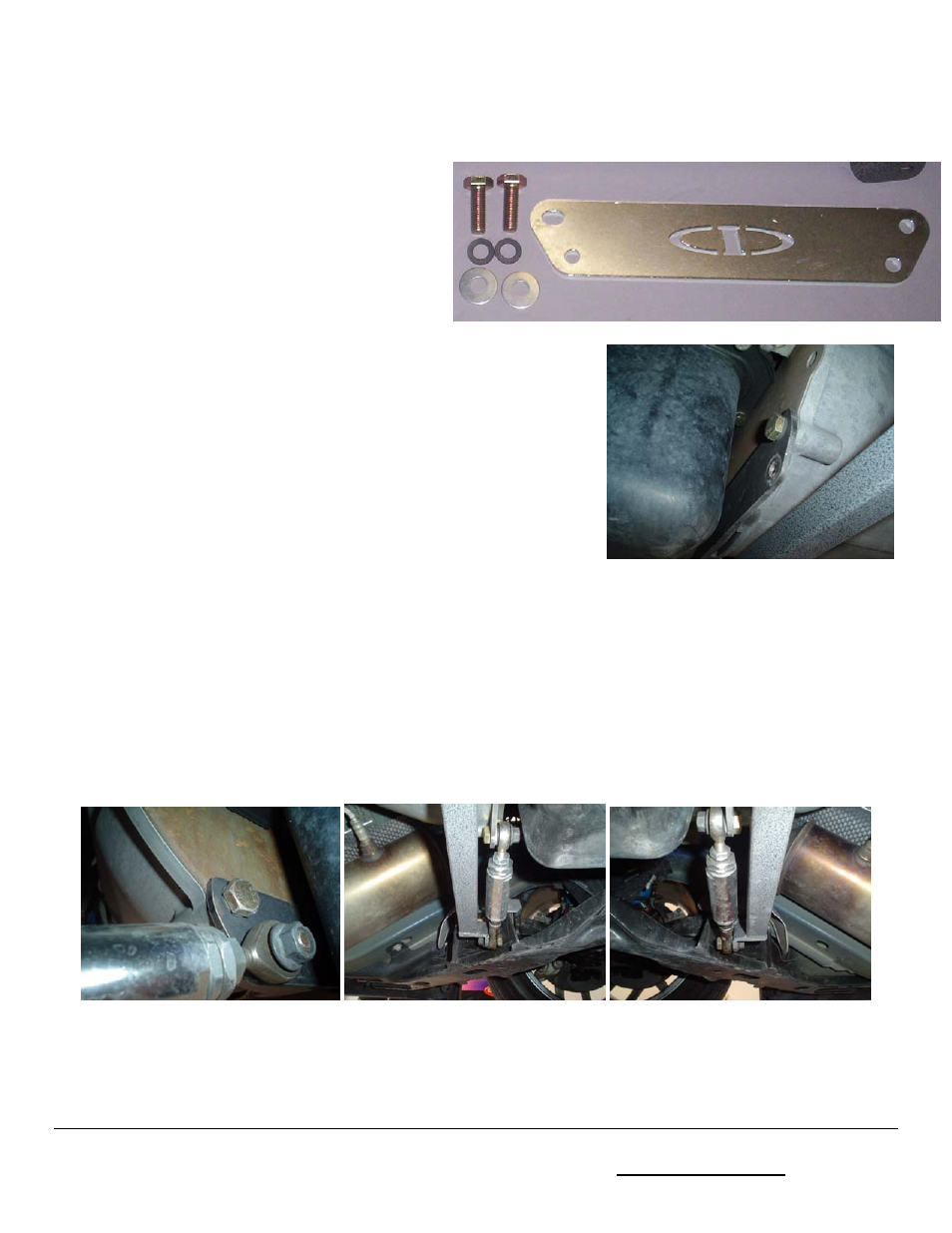

To attach the engine bracket. You

will need the 2 - 10mm bolts, flat

washers, and lock washers and the

engine bracket, shown to the right.

The wider of the 2 holes, with one

of them slotted, is the correct holes to mount to the bell

housing. Using the flat and lock washers hand tighten

the mounting bracket to the forward side of the bell

housing. Shown to the right.

3.

You should have 2 bags of mounting hardware (2

bolts, 2 washers, 2 O-rings, and 2 lock nuts in each).

These are used to mount the dampers to the cradle

brace and the engine bracket. It may be necessary to

adjust the length of the dampers for proper installation. See adjustment instruction sheet

included.

4.

Using the mounting hardware attach the damper to the engine bracket. And the attach to

the cradle brace. Each damper should install WITHOUT any binds. If the bolts will not go

through the mounting holes you will need to lengthen or shorten the damper. See pictures

below
