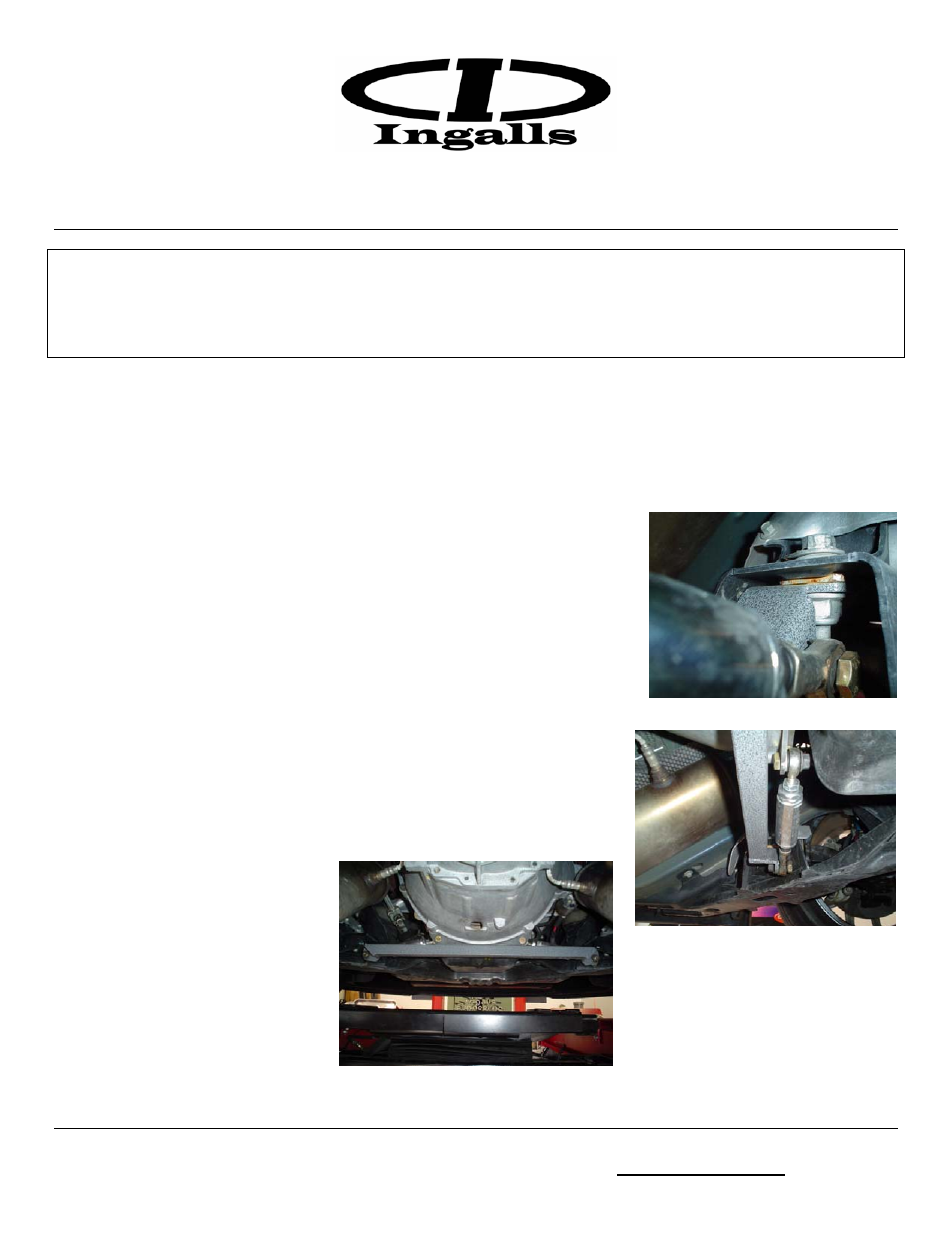

P ERFORMANCE S USPENSION
Installation Instructions for 93032
Lower Front Cradle Brace & Engine Torque Damper For 2005-2006 Mustang
CAUTION: Observe proper safety and repair procedures for installation of all chassis parts. Some chassis parts require specialized tools and
experience and therefore MUST be installed by a qualified technician otherwise an unsafe vehicle and/or personal injury could result. Wear safety
glasses and other protection.
WARNING: Before beginning, check for any damaged or loose suspension connections. Loose connections here indicate worn or broken parts which
MUST BE REPLACED. Failure to replace a damaged or worn spindle and/or link may cause the wheel to separate from the vehicle, possibly resulting in
serious personal injury. Installer
MUST check for proper clearance. Modification(s) may be required. Please proceed ONLY if the vehicle owner is
completely aware of these potential suspension modifications.
Estimated Installation Time: 30 Minutes
Technical Rating: Easy
Installation Instructions For The Cradle Brace:
1. Raise and support vehicle properly before getting underneath it.
2. Locate both rear lower control arm bolts and nuts. Loosen and remove the nut.
3.
Included with the support are 2 square spacers, these
spacers install between the new support bar and the
chassis. The chassis has two raised areas for the factory
nut to fit in between. The spacers need to be set in this
same area.
4. Slide the bar with the spacer up into place making sure the
spacers are seating flat. The 2 mounting ears with holes
should be facing towards the back of the motor (or front of
the car). The picture to the right shows the ears with the
Engine Torque Damper option already installed.
5. Install the factory nut
and torque to
manufacturer
specifications.
