6 of 14 ISSUED: 09-27-04 SHEET #: 100-9005-8 12-13-12

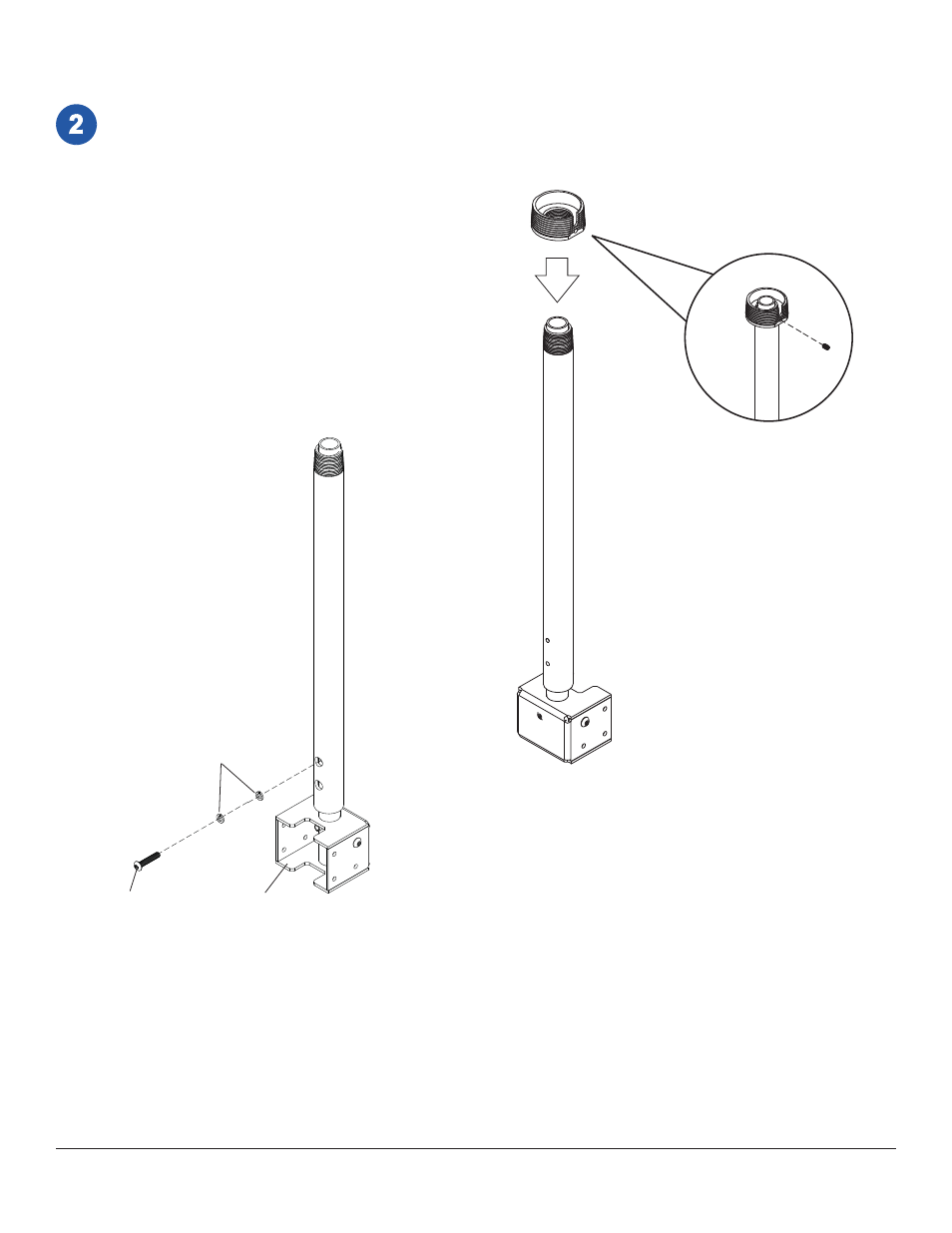

Thread reducer (D) onto tube assembly (A) until tight.
Insert set screw (I) into reducer as shown in fi gure 2-1.
Tighten screw using hex wrench (J). Note: Set screw (I)
is used to jam against the threads of tube assembly to
prevent any excess movement.
To adjust height of tube assembly (A), remove socket
pin screw and two lock washers using 4 mm security
allen wrench (G) and adjust to desired height as shown
in fi gure 2-2.
A
I
D
fi gure 2-1
Installing Reducer
B
A
fi gure 2-2
SOCKET PIN SCREW
LOCK WASHERS
