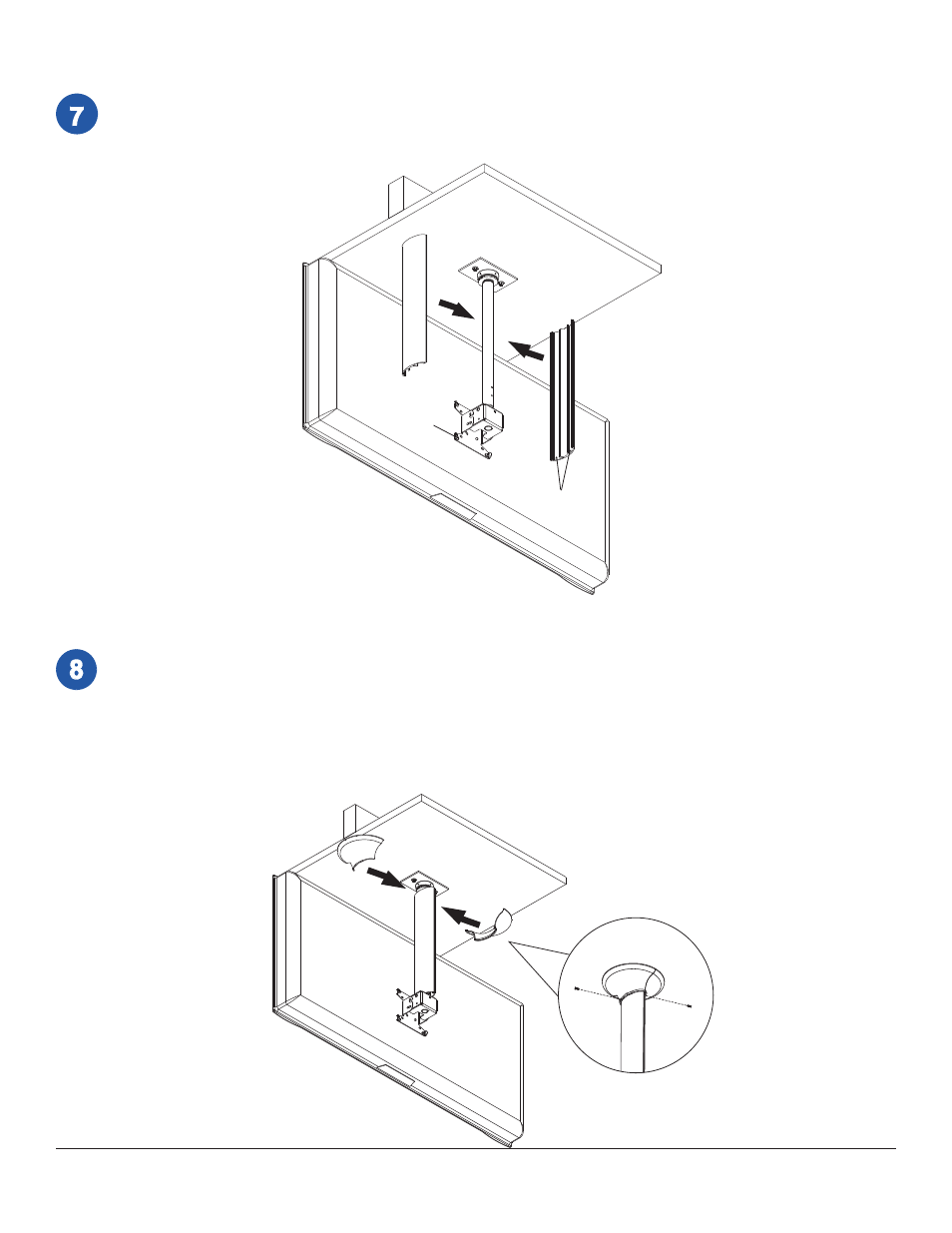

Route cords through side channels of one vertical cover (Q). Snap two vertical covers together on tube assembly (A)
so that they are perpendicular to tilt bracket (C). If necessary, use a handsaw to cut vertical covers to match the length
of tube assembly.
Q
A
SIDE
CHANNELS
C
Snap two top covers (R) together fl ush with fi nished ceiling. Use holes in top covers to mark vertical covers (Q).
Using a #46 (approx. .0810") drill bit, drill holes in vertical covers. (Note: It may be necessary to remove vertical
covers before drilling holes to avoid damaging cables.) Remove top covers (R). Use glue (V) on the inside edge of
one of the two top covers (R) so that the two sides will stick together when they are connected. Secure top covers
to vertical covers using two #4-24 x 3/8" fl at head phillips screws (T) as shown in fi gure 8-1.
Note: One extra fl at head phillips screw (T) has been provided.
Note: Alcohol pad (W) may be used for clean up of glue.
Installation of Top Covers
Installation of Vertical Covers
R
Q
T
fi g. 8-1
