9
3.3. Configuring the Card
To configure the card:
1. Verify that the serial cable (supplied) is connected to the card's Settings port and the computer's
COM port.

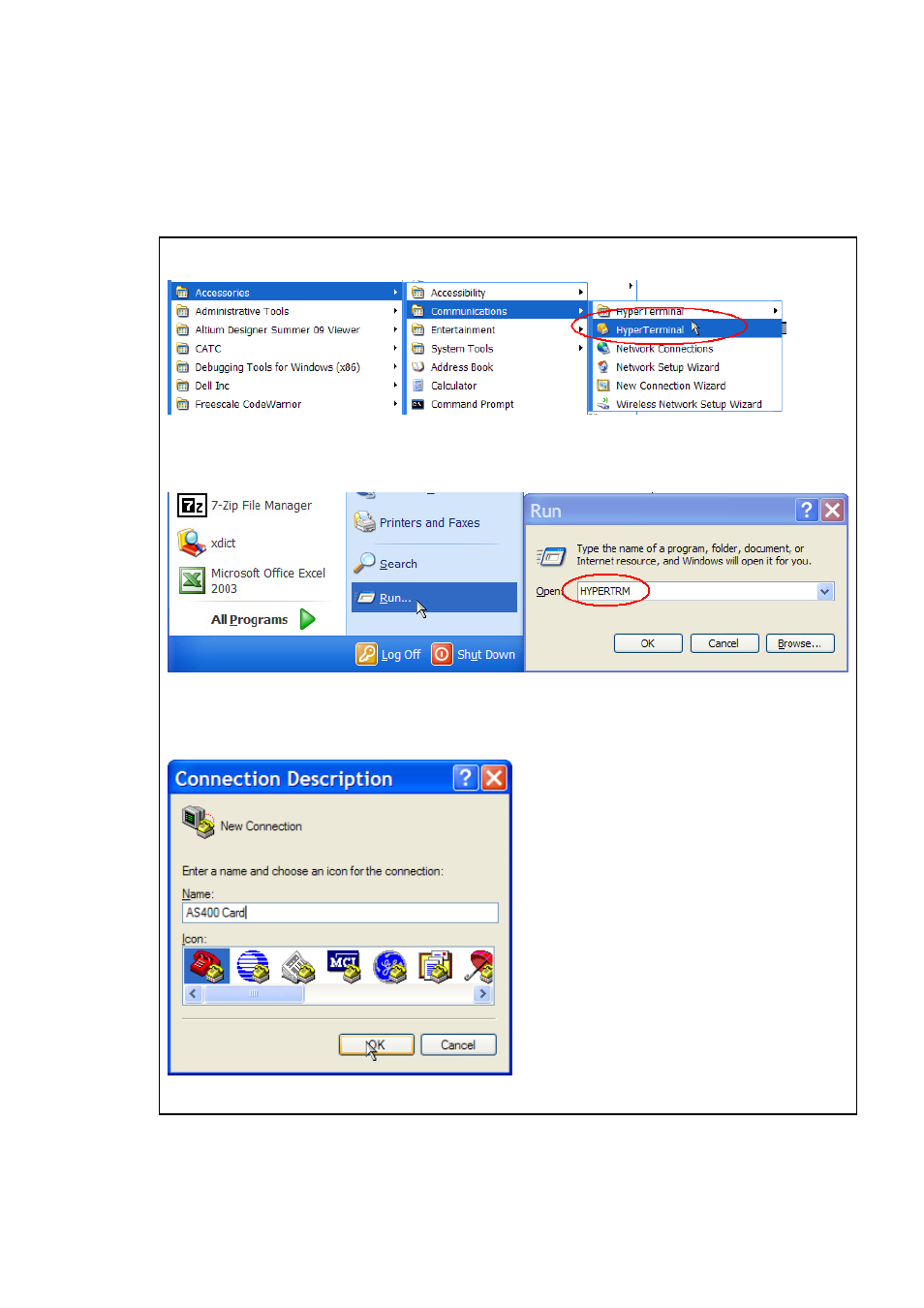

2. Open your terminal emulation program (such as HyperTerminal).
a. Start
ÆAll ProgramsÆAccessoriesÆCommunicationsÆHyper Terminal
Or type HYPERTRM in Windows OS Run Dialog
b. Name the new connection
Figure6. Hyper Terminal
