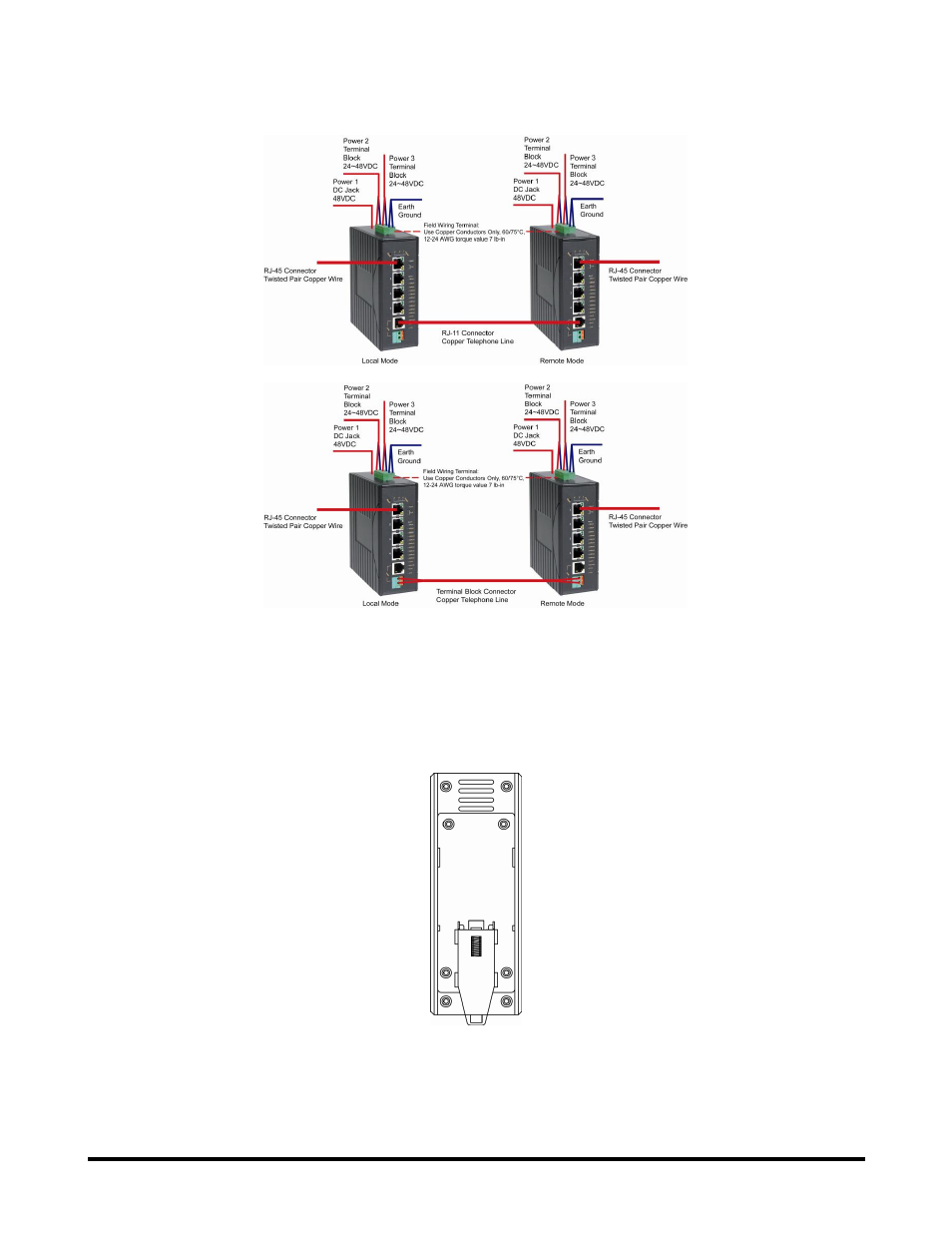

Wiring Diagram
Field Wiring Terminal Markings: Use Copper Conductors Only, 60/75℃, wire range 12-24 AWG, torque value 7 lb-in.
DIN Rail Mounting

Fix the DIN rail attachment plate to the back panel of the Hardened Ethernet Extender.

Installation: Place the Hardened Ethernet Extender on the DIN rail from above using the slot. Push the front of the Hardened Ethernet
Extender toward the mounting surface until it audibly snaps into place.

Removal: Pull out the lower edge and then remove the Hardened Ethernet Extender from the DIN rail.
