Manual Documentation Number: EIR/EIRP-EXTENDseries-4612m 1
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
Preface
This manual describes how to install and use the Hardened Ethernet Extender. The Hardened Ethernet Extender introduced here provides
one channel for Ethernet over existing voice grade copper wire.
The Hardened Ethernet Extender fully complies with IEEE802.3 10Base-T and IEEE802.3u 100Base-TX/FX standards.
In this manual, you will find:

Product overview

Features on the Hardened Ethernet Extender

Illustrative LED functions

Installation instructions

Specifications
Introduction
The Hardened Ethernet Extender provides one channel for Ethernet over existing voice grade copper wire. This Hardened Ethernet
Extender solution is perfectly fitted in the industrial applications or rugged environment.

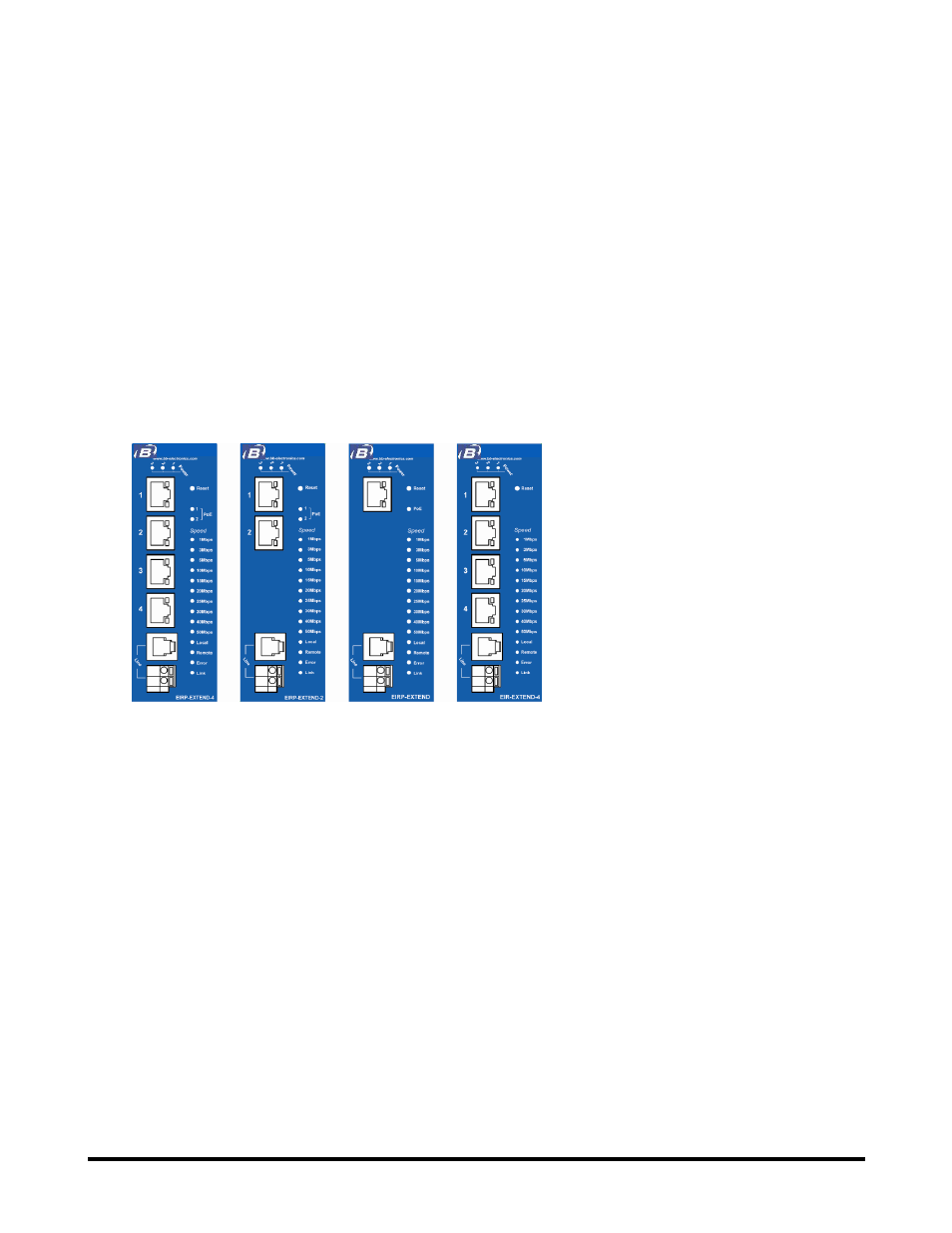

Product Overview
Product Features

Meets NEMA TS1/TS2 Environmental requirements: temperature, shock, and vibration for traffic control equipment.
 Meets EN61000-6-2 & EN61000-6-4 EMC Generic Standard Immunity for industrial environment.
 Operates transparent to higher layer protocols such as TCP/IP.
 Ethernet port: Supports IEEE802.3/802.3u/802.3x. Auto-negotiation: 10/100Mbps, full/half-duplex; Auto MDI/MDIX.

Complies with IEEE802.3at standard for high power input required device and also compatible with IEEE802.3af powered devices
(Only available for Hardened IEEE802.3at PoE PSE Ethernet Extender version).
 Ethernet Extender port (RJ-11 & Terminal Block): Symmetrical on the VDSL, full-duplex 50Mbps communications link over existing
copper telephone line.

One DIP switch for configuring Local (Loc) and Remote (Rmt).

Ten speeds with speed indicator LEDs on front panel of unit, up to 50Mbps @ about 300 meters (984 ft.), down to 1Mbps @ about
1,900 meters (6,232 ft.).

4-port 10/100Base-TX (2-port IEEE802.3at PoE PSE) Ethernet Extender: 2.88A @ 24VDC, 1.44A @ 48VDC. Power consumption:
69.12W Max.

2-port IEEE802.3at PoE PSE Ethernet Extender: 2.88A @ 24VDC, 1.44A @ 48VDC. Power consumption: 69.12W Max.
 1-port IEEE802.3at PoE PSE Ethernet Extender: 1.6A @ 24VDC, 0.8A @ 48VDC. Power consumption: 38.4W Max.
 4-port 10/100Base-TX Ethernet Extender: 0.36A @ 24VDC, 0.18A @ 48VDC. Power consumption: 8.64W Max.

Power Supply: Redundant 24-48VDC Terminal Block power inputs and 48VDC DC JACK with 100-240VAC external power supply.

Field Wiring Terminal Markings: Use Copper Conductors Only, 60/75℃, wire range 12-24 AWG, torque value 7 lb-in.

Operating temperature range @ -40℃ to 75℃ (-40℉ to 167℉). Tested for functional operation @ -40℃ to 85℃ (-40℉ to 185℉).
UL508 Industrial Control Equipment certified Maximum Surrounding Air Temperature @ 75℃ (167℉).

For use in Pollution Degree 2 Environment.
 Supports Din-Rail, Panel, and Rack Mounting installation.
