10/100Base-TX and Ethernet Extender Connectors
10/100Base-TX Connection

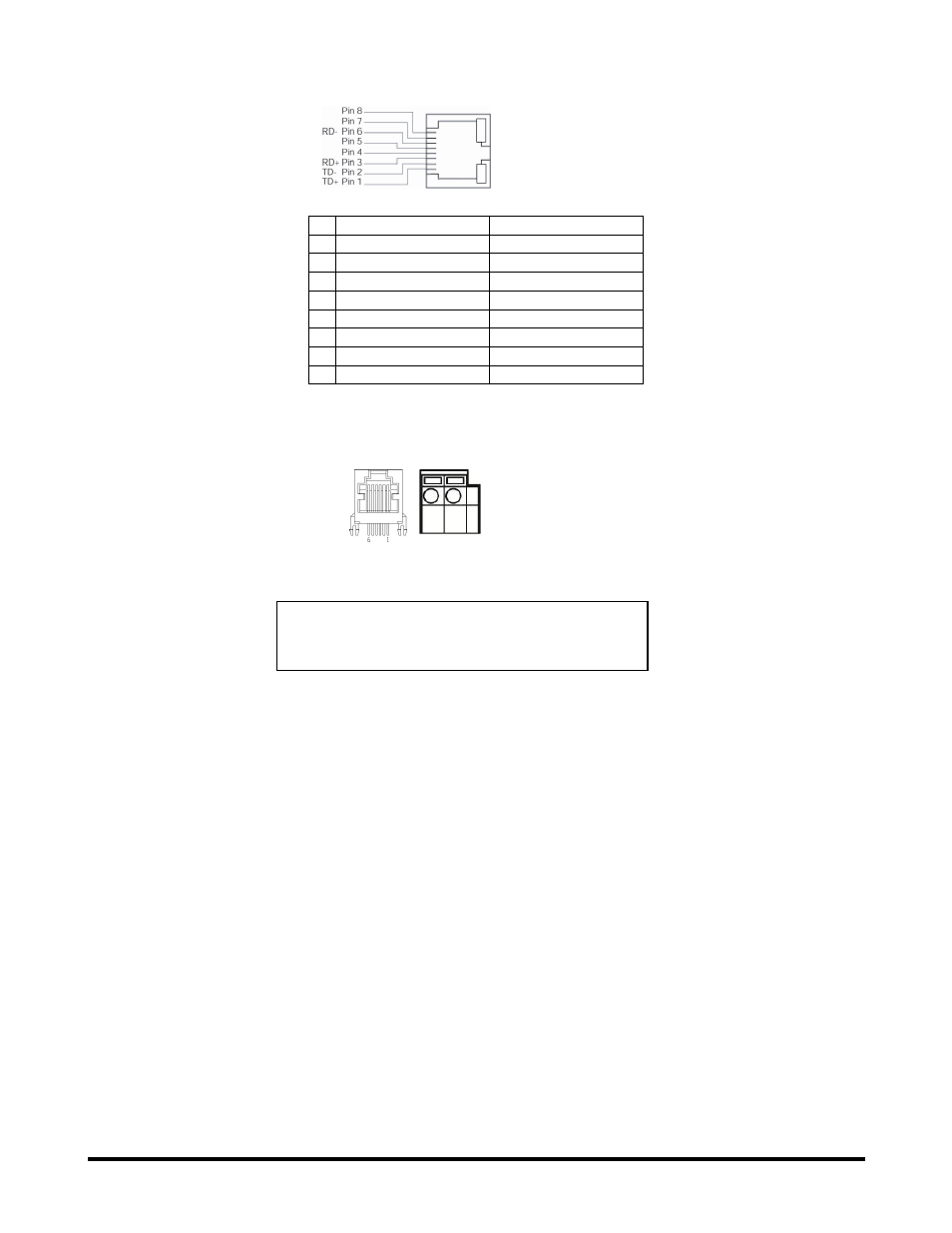

The following lists the pinouts of
10/100Base-TX RJ-45 port.
Pin Regular Ports Uplink ports
1 Output Transmit Data + Input Receive Data +
2 Output Transmit Data - Input Receive Data -
3 Input Receive Data + Output Transmit Data +
4 Positive (VCC+) Positive (VCC+)
5 Positive (VCC+) Positive (VCC+)
6 Input Receive Data - Output Transmit Data -
7 Negative (VCC-) Negative (VCC)
8 Negative (VCC-) Negative (VCC)

Pin 4, 5 Positive (VCC+) and Pin 7, 8 Negative (VCC-) are only available for Hardened IEEE802.3at PoE PSE Ethernet Extender
version.
Ethernet Extender Connection
The RJ-11 and Terminal Block port
pinouts
Pin 3: Tip, Pin 4: Ring.
Use a telephone line to connect two RJ-11
or Terminal Block ports between two
Hardened Ethernet Extenders.
Tip Ring
Warning: Impropriate operation might cause the damage of Terminal Block.
Installation
This chapter gives step-by-step installation instructions for the Hardened Ethernet Extender.
Selecting a Site for the Equipment
As with any electric device, you should place the equipment where it will not be subjected to extreme temperatures, humidity, or
electromagnetic interference. Specifically, the site you select should meet the following requirements:
 The Surrounding Air temperature should be between -40 to 75 degrees Celsius.
 The relative humidity should be less than 95 percent, non-condensing.
 Surrounding electrical devices should not exceed the electromagnetic field (RFC) standards.
 Make sure that the equipment receives adequate ventilation. Do not block the ventilation holes of the equipment.
 The power outlet should be within 1.8 meters of the product.
Note: CROSSOVER CONNECTION REQUIRED.
When wiring 2 Extender ports together connect Tip
to Ring and Ring to Tip.
