Hardware Description
1
2 Manual Documentation Number EIR405-T – 0912m
www.bb-elec.com
www.bb-europe.com
Wiring the Fault Alarm Contact

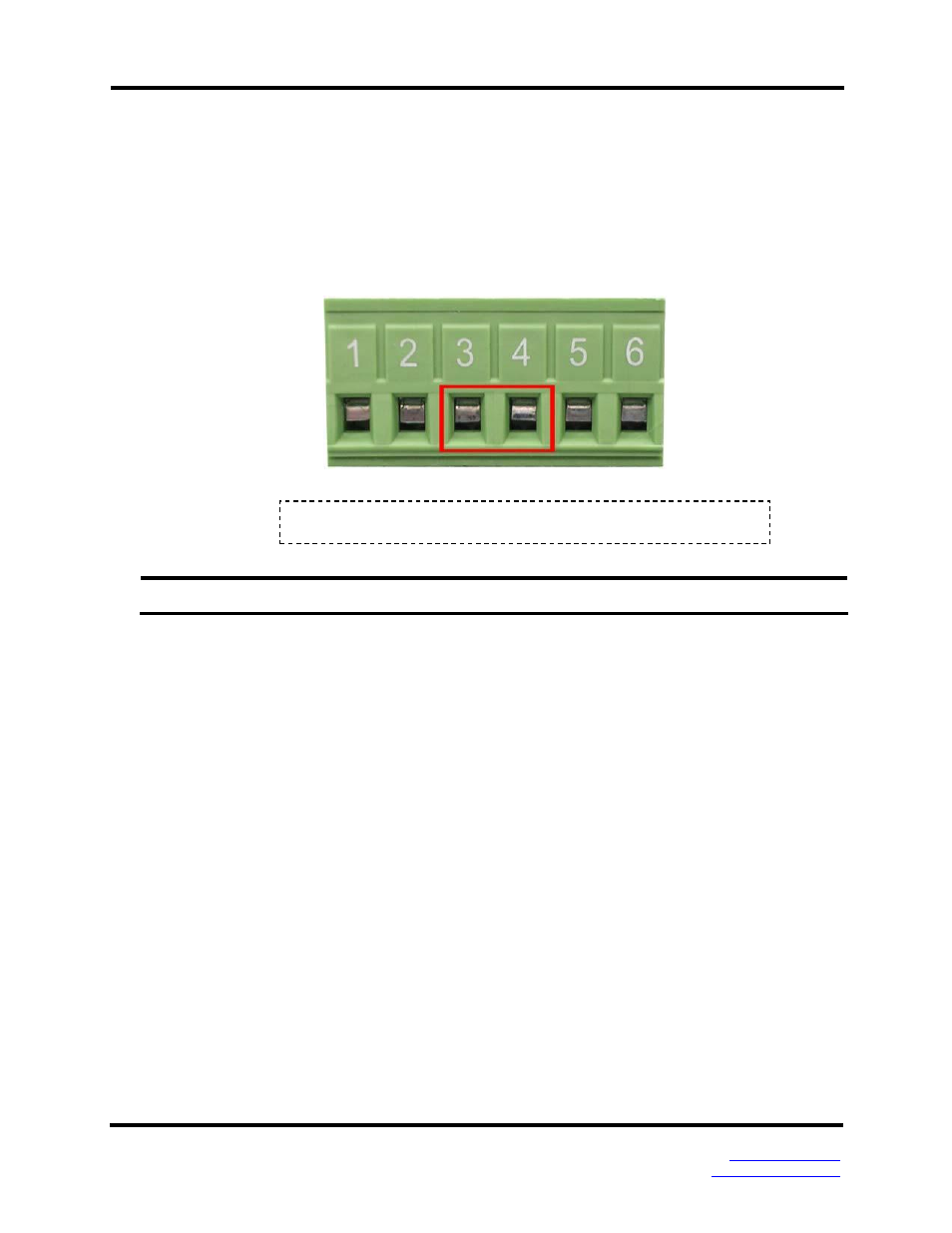

The fault alarm contact is in the middle of the terminal block connector as shown below. If
one of the power sources fails a fault will be detected causing the circuit to open.
Insert the wires into the fault alarm contact (No. 3 & 4)
Note The wire gauge for the terminal block should be 12 to 24 AWG.
