Hardware Description
8 Manual Documentation Number EIR405-T – 0912m
www.bb-elec.com
www.bb-europe.com
SFP slot until a click is heard. With the SFP module (fiber optic connection), the switch can
transmits speed up to 1000 Mbps and you can prevent noise interference from the system
and get extended transmission distance, depending on the SFP module used.
Note
The SFP/Copper Combo port can’t both be used at the same time. The SFP
module has the highest priority. If a 1000M SFP transceiver is inserted into the
SFP cage and a remote device is connected to the SFP port, the copper combo
port will link down. If a 100M SFP transceiver is inserted into the SFP cage the
copper combo port will link down regardless of the connection status of the
remote device.
To connect the transceiver and fiber cable, follow the steps below.
(Note: SFP modules typically terminate with an LC fiber connector)

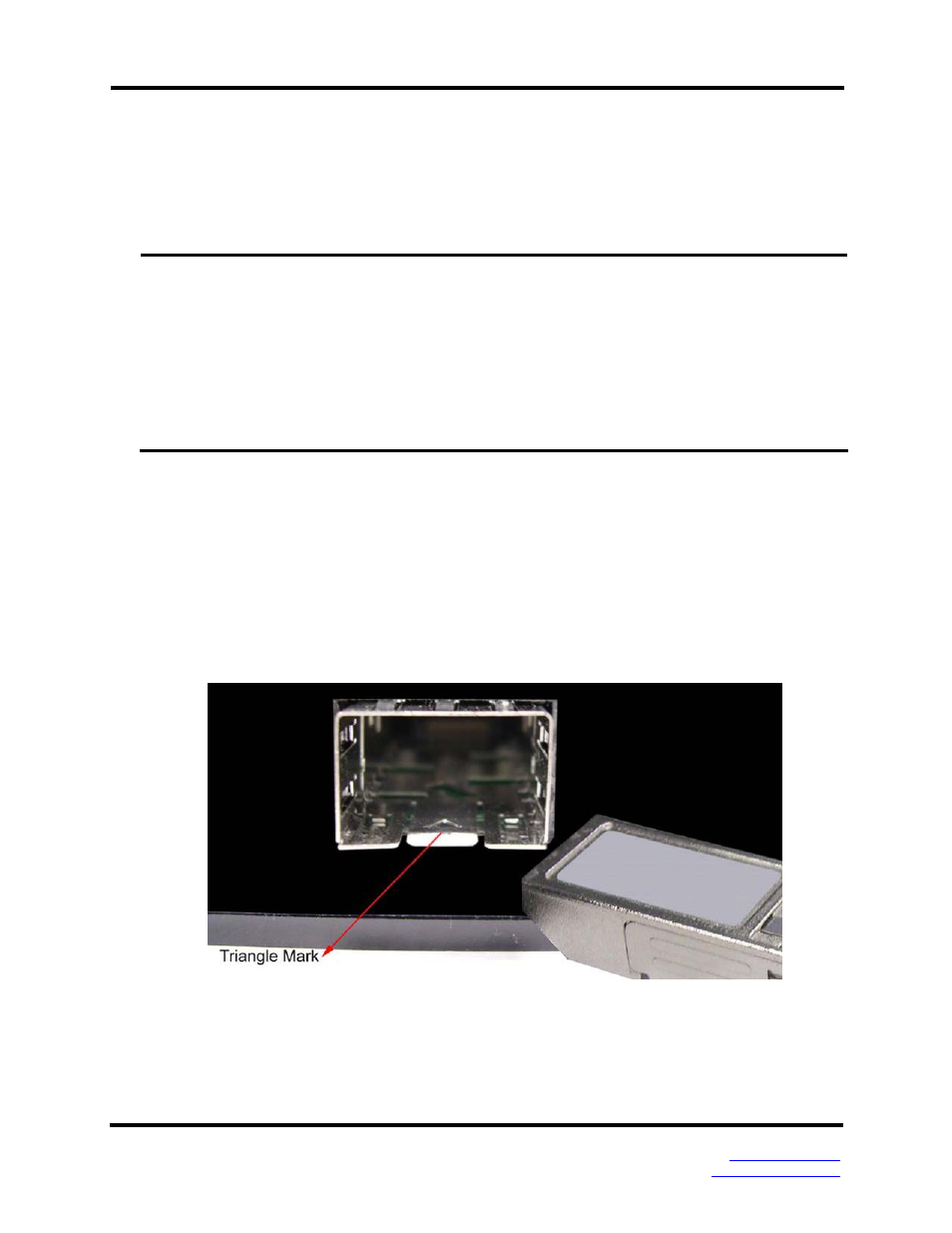

First, insert the SFP transceiver into the SFP module cage. Notice that the triangle mark is at
the bottom of the module.
