(Revised 2010-2-24) Page 69 of 155
RSTP – Configuration Continued…

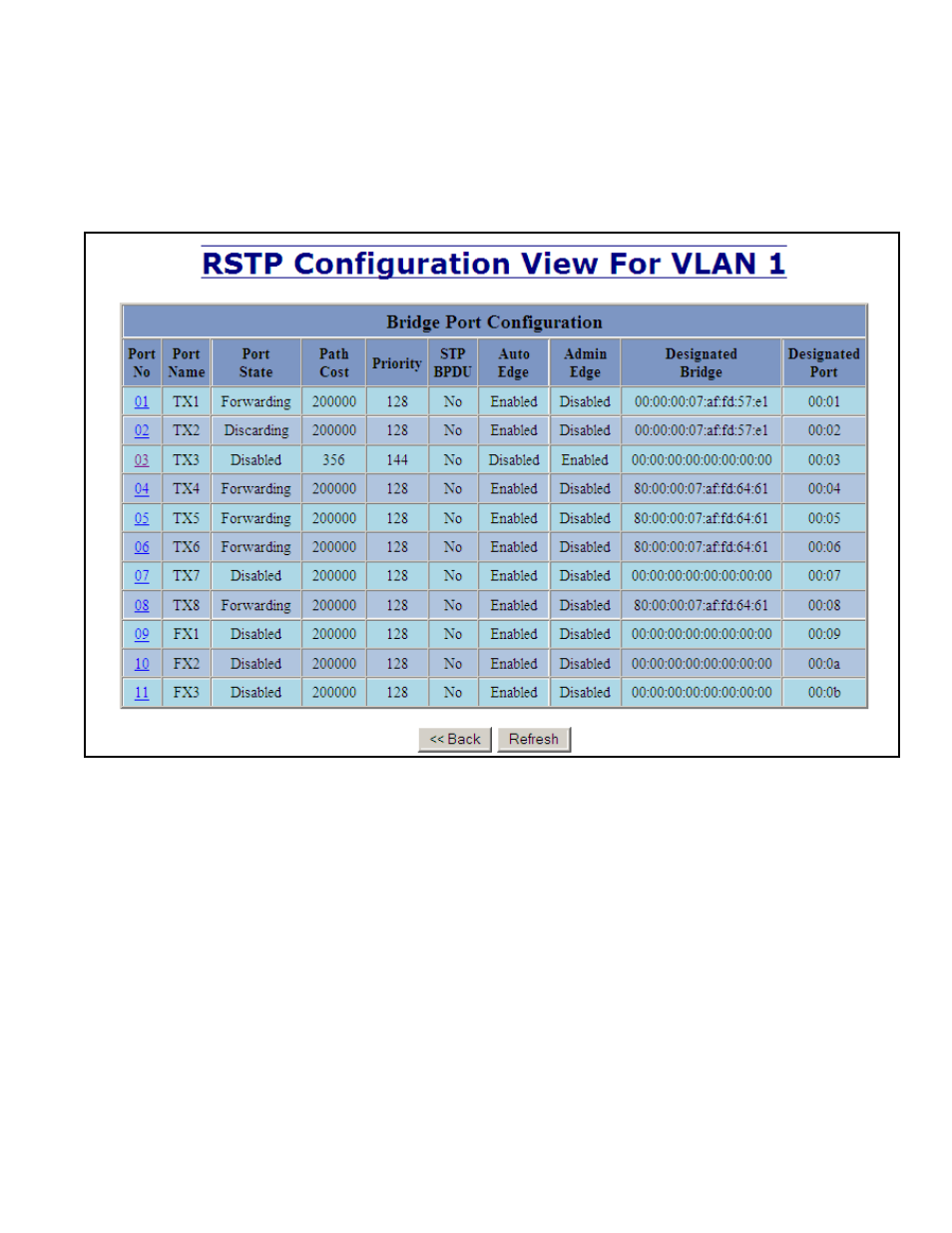

Following the link for the view RSTP Port Configuration at VLAN#, the administrator or user can see the
current RSTP status of the ports on that VLAN. This will show information such as the Path Cost and the
Port State. If the switch sees a redundant path it will put the port with the highest Path Cost into Blocking
mode where it will discard packets coming in on that port. In the example below, TX2 is a redundant port
with port TX1, therefore TX1 is forwarding and TX2 is discarding.
