USB INTERFACE
The 711FX3 Series switches provide a USB interface accessed via the USB connector labeled as “USB” on
the unit. This is used to access the Command Line Interpreter (CLI).

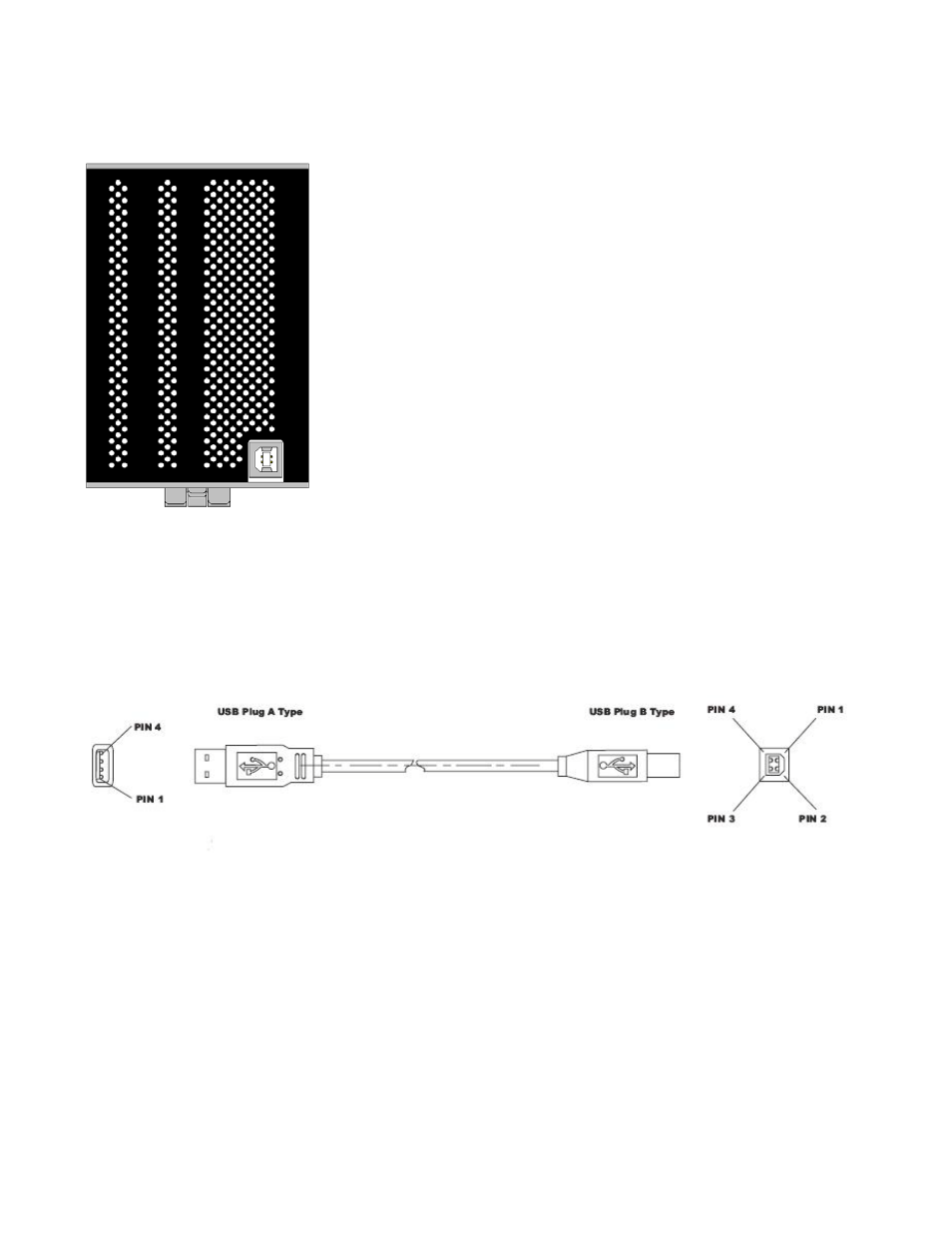

The USB connector is at the bottom of the 711FX3.
USB Cable
Connect the USB port of your PC and the Switch using a standard USB cable. You will require a cable with
a Type A connector for the PC end, and a Type B connector for the Switch end.
Standard USB cables are readily available from a variety of computer stores.
HyperTerminal
The following configuration should be used in HyperTerminal:
Port Settings:
115200
Data Bits: 8
Parity: NONE
Stop bits: 1
Flow Control: NONE
