(Revised 2010-2-24)

Page 107 of 155

LogicalView

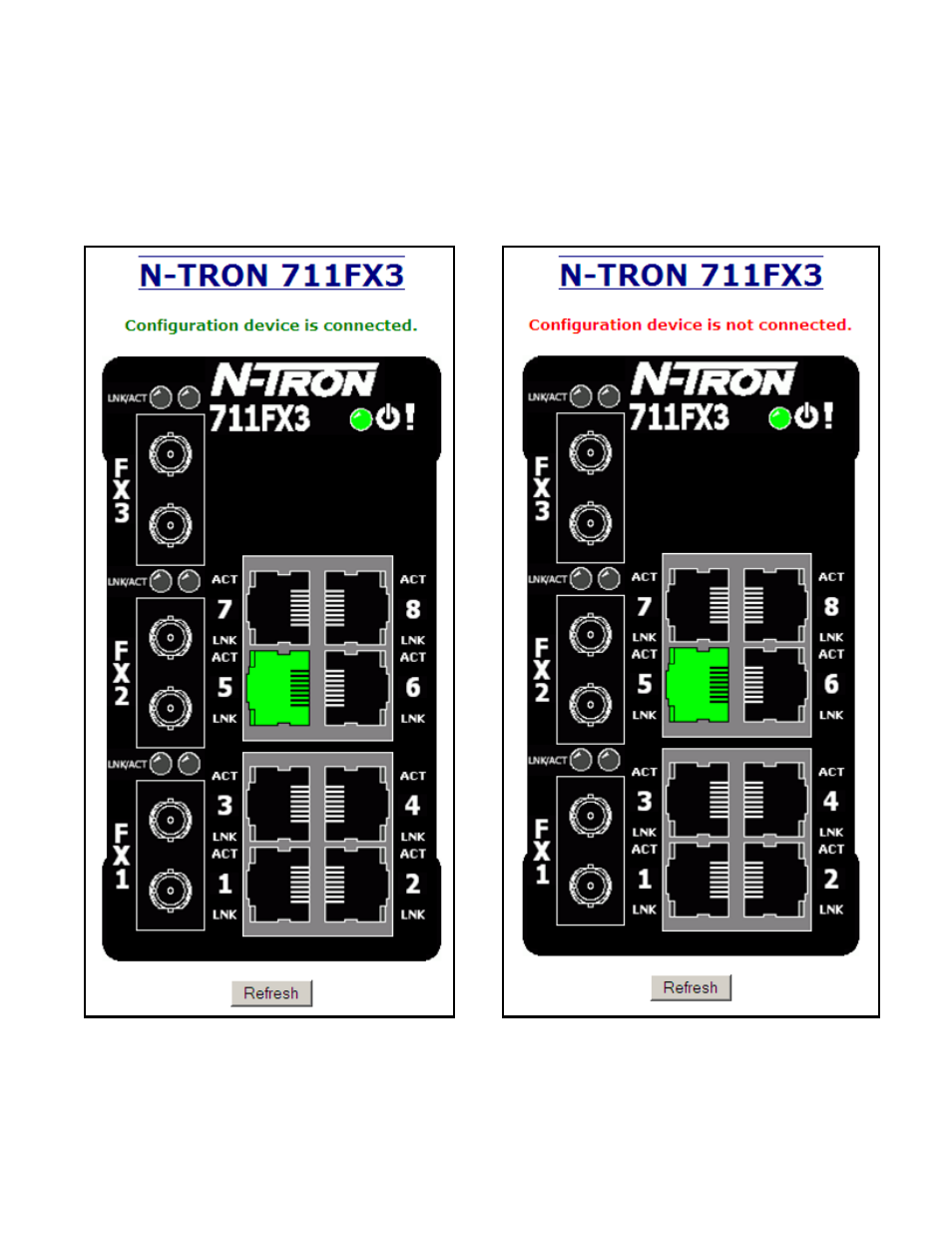

The 711FX3 Web Management offers a logical view of the switch. Here a user or administrator can see a
graphical depiction of the 711FX3 series switch. Ports that are linked will appear in green, while ports that
are not linked will appear in black. The example below shows a 711FX3 with port 5 linked. The other
ports are currently in the down state (not being used). Also, the logical view reveals whether the
configuration device (SD card) is installed or not.
