I-7565-H1/H2 High Speed USB/CAN Converter Quick Start User Guide (Ver 1.0, Sep/2009) 7

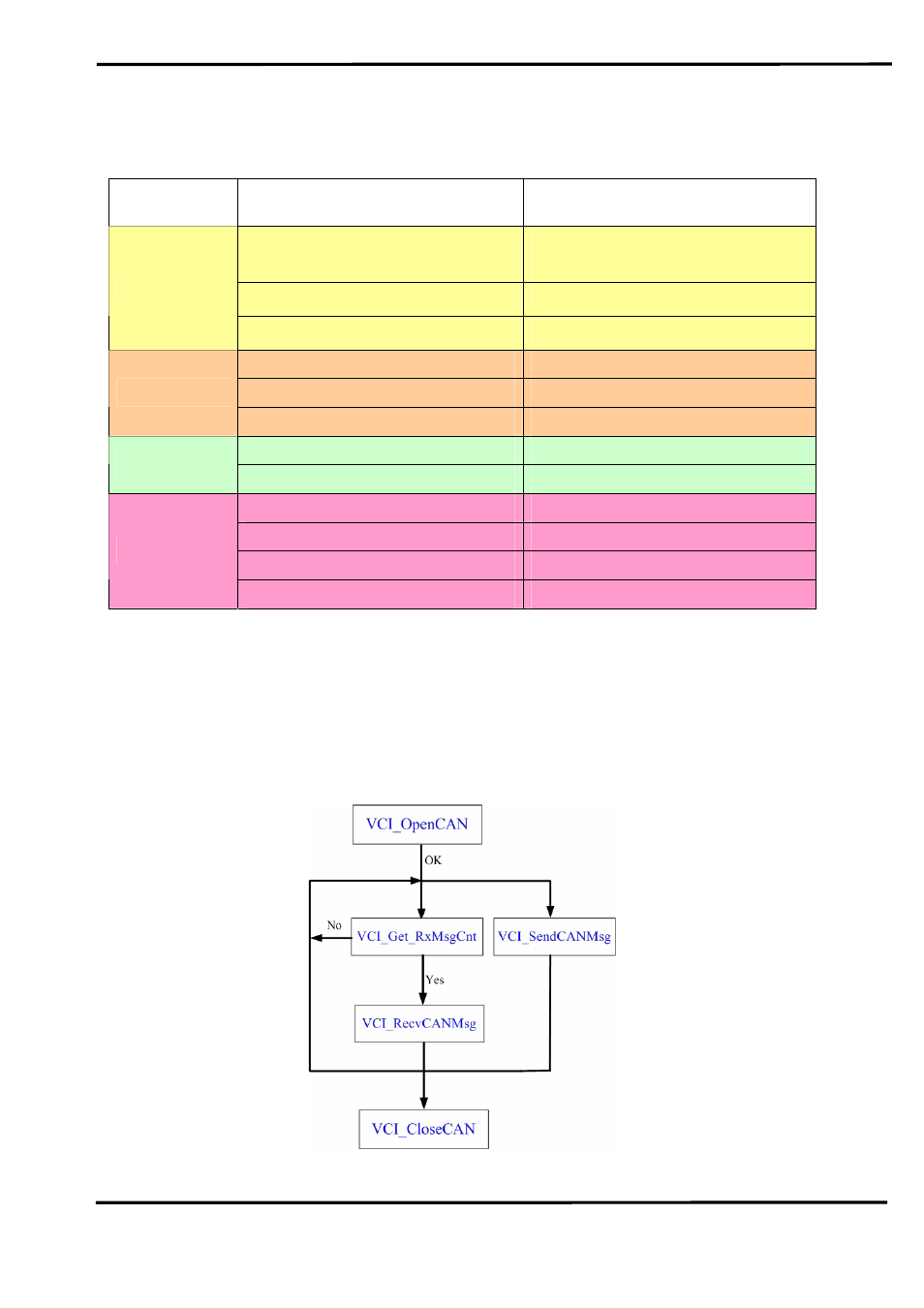

Table 4-1
: LED indication of I-7565-H1/H2
LED Name I-7565-H1/H2 Status LED Status
Hardware Init Fail
All LED always turned on
permanently after reset
Hardware WDT Fail All LED flash per 2 second
ALL LED
Contact to ICP DAS All LED flash take turns
Firmware Updating Mode Flash per second
Firmware Operation Mode Always turned on
PWR LED
Power Off Off
Transmission Flash
RUN LED
Bus Idle Off
Transmission Fail Flash per 100 ms
Buffer Overflow Flash per second
Bus-Off Always turned on
ERR LED
No Error Off
5. Flow Chart for Users’ Program by using API
The following is the basic control flow chart for users’ program
development by using API Library – VCI_CAN.dll.
Figure 5-1
: Flow Chart of API Library
