Step3: Run the I-7565-H1/H2 Utility again and connect to the I-7565-H1 B

module.

Step4: After the connection to I-7565-H1 is successful, the communication

screen will show and the connection parameters are listed in status
bar of I-7565-H1/H2 Utility like Figure 3-3.

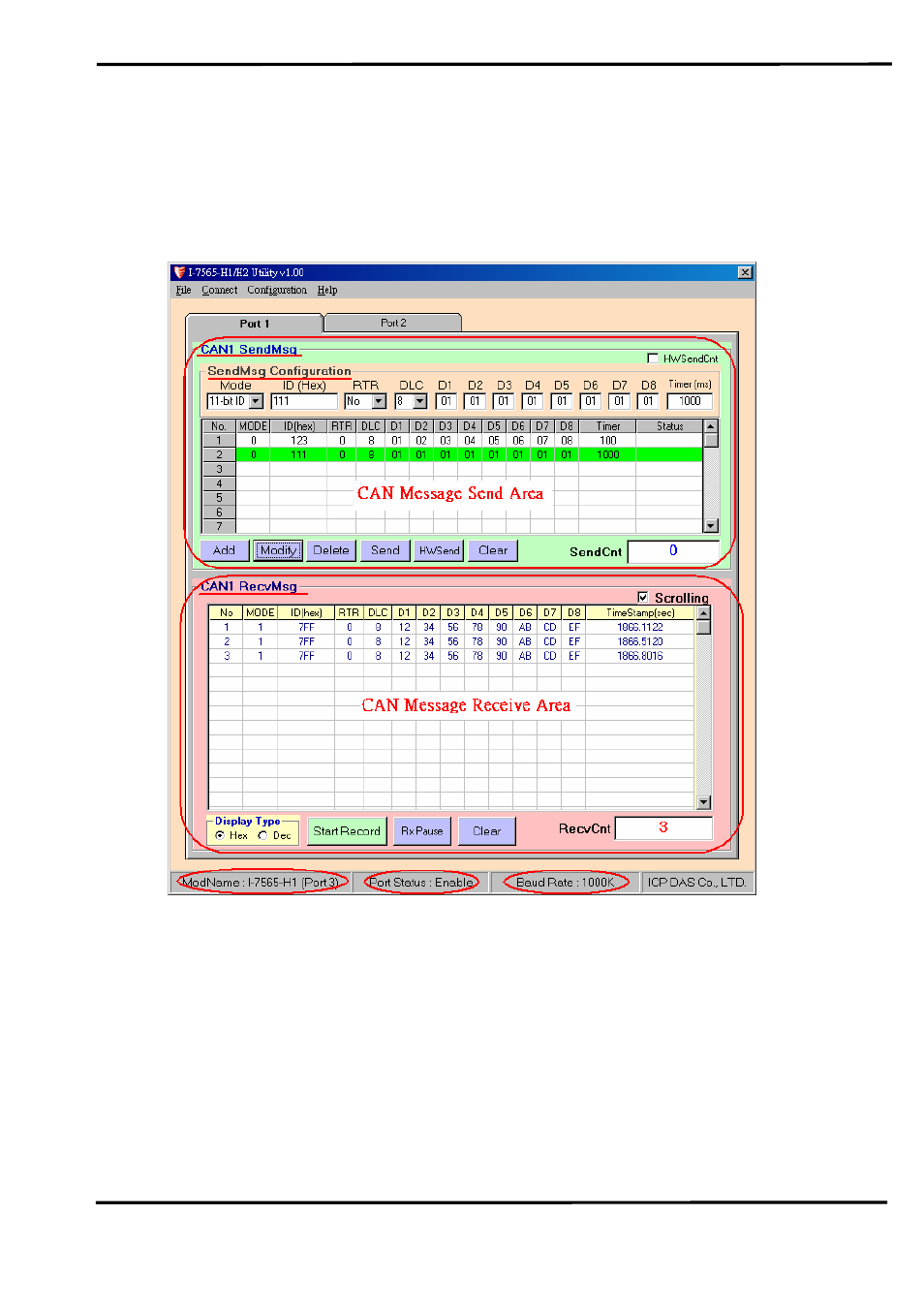

Figure 3-3

: Communication Screen of I-7565-H1/H2 Utility

Step5: [1] Input the value to the “SendMsg Configuration” frame.

[2] Click the “Add” button to add the CAN message to “CAN
Message Send Area” on Utility A and B.
[3] Click “Send” button and the utility will transfer the CAN
message through the PC USB port automatically.
After the I-7565-H1 A receives the CAN message from PC USB
port and it will send the CAN message from its CAN port. So, the
I-7565-H1 B will receive the CAN message transmitted from
