I-7565-H1/H2 High Speed USB/CAN Converter Quick Start User Guide (Ver 1.0, Sep/2009) 5

I-7565-H1 A. Then, I-7565-H1 B will send this CAN message from
its USB port to another PC USB port like Figure 3-4 & Figure 3-5.

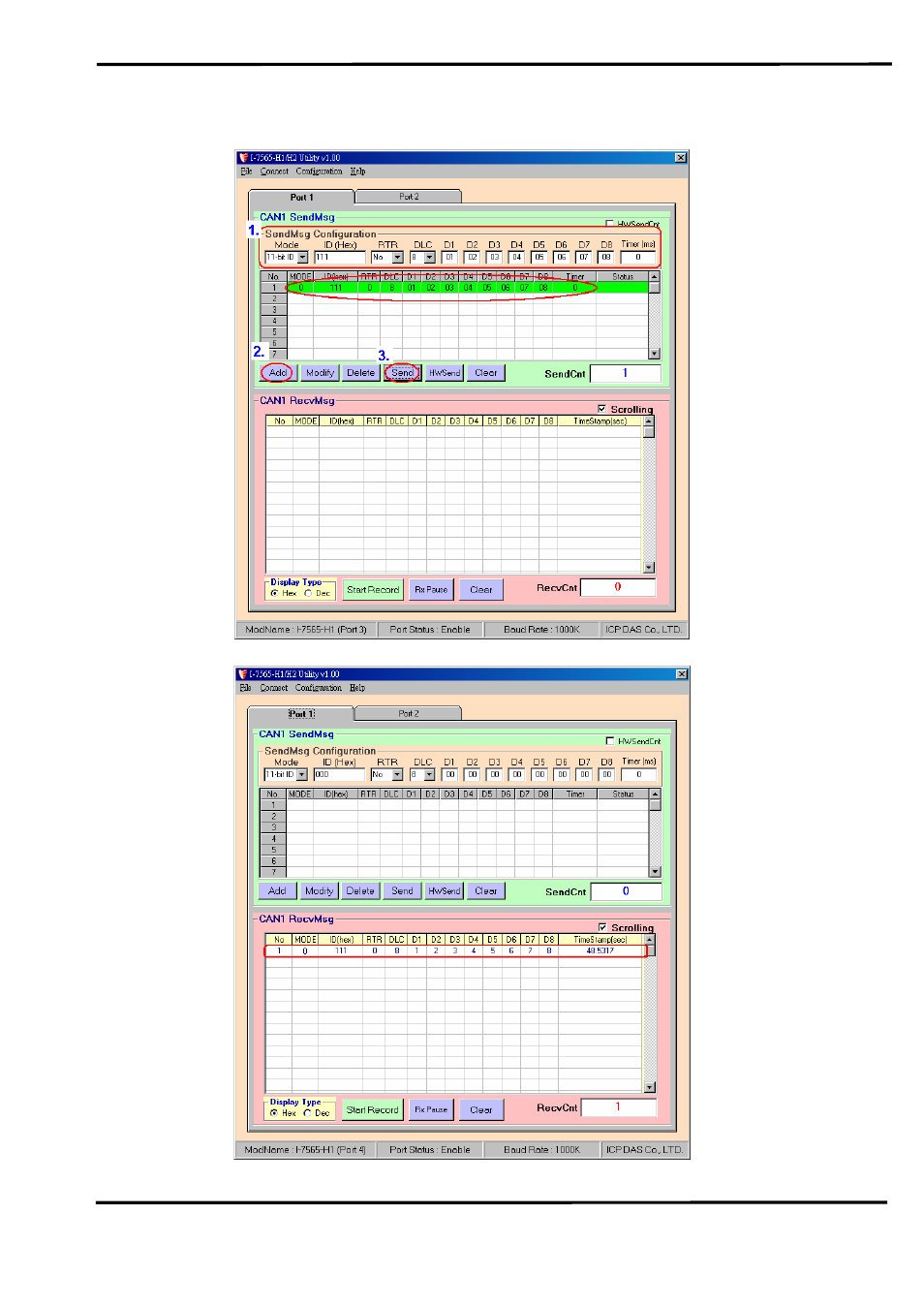

Figure 3-4

: Utility of I-7565-H1 A

Figure 3-5

: Utility of I-7565-H1 B
