I-7565-H1/H2 High Speed USB/CAN Converter Quick Start User Guide (Ver 1.0, Sep/2009) 2
2. Hardware Installation
Users may need to make a hardware setting before the application.
The detailed illustration is as below
:
[ Step1: USB connection & Install I-7565-H1 Driver. ]
Connect the USB ports of the I-7565-H1 A and B to PC respectively.
Then users can refer to the “Driver Installation” chapter in the user’s
manual to complete the I-7565-H1 driver installation.
[ Step2: Enable the 120Ω terminator resistor of module A and B. ]
Please open the cover of I-7565-H1 and make sure the JP3 jumper is
in position 1 and 2 like Figure 2-1.
Enable (default),
(Activate)

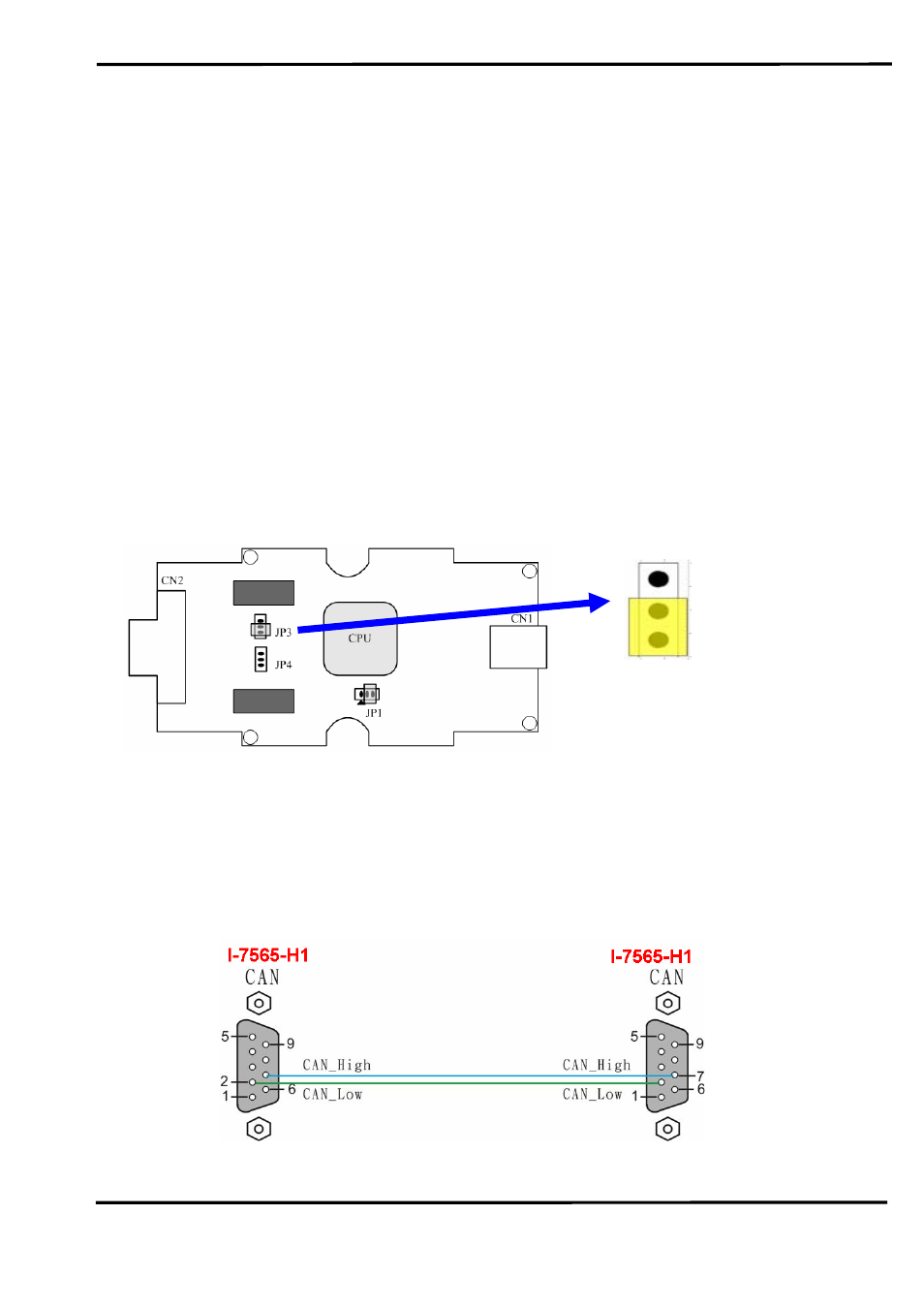

Figure 2-1
: JP3 Jumper Position
[ Step3: CAN bus connection ]
Connect the CAN ports of these two I-7565-H1 modules using the
following structure Figure 2-2.
Figure 2-2
: CAN bus Connection
