RSTP – Configuration Continued…

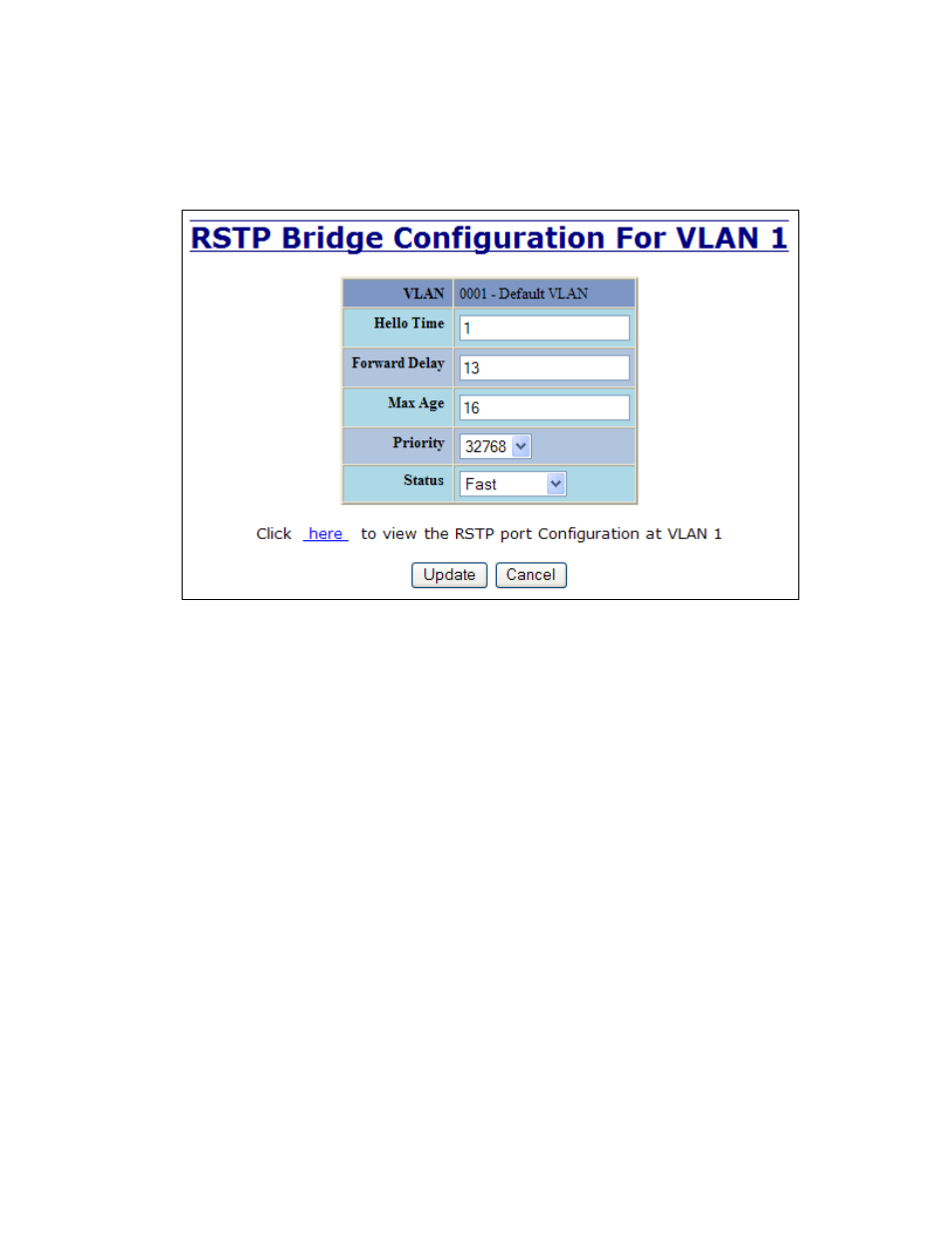

The configuration screen for the VLAN that was previously selected will look like the example below. Here
the administrator can make changes such as the Hello Time, Forward Delay, Max Age, Priority, and the
Status of RSTP on that VLAN. The administrator or user can see the current RSTP status of the ports on
that VLAN by clicking on the ‘here’ link to view RSTP Port Configuration at VLAN#.
Note: It is recommended that RSTP rings consist of RSTP capable switches.
Trunking must be disabled in order to use RSTP.
Do not create redundant links unless either RSTP or N-Ring is enabled.
RSTP on overlapping VLANs is not supported and the system will automatically disable RSTP on the
VLAN that has overlapping ports.
