Airborne DP550 Family Databook

B&B Electronics, Inc.

13

5.6

Connector Definition

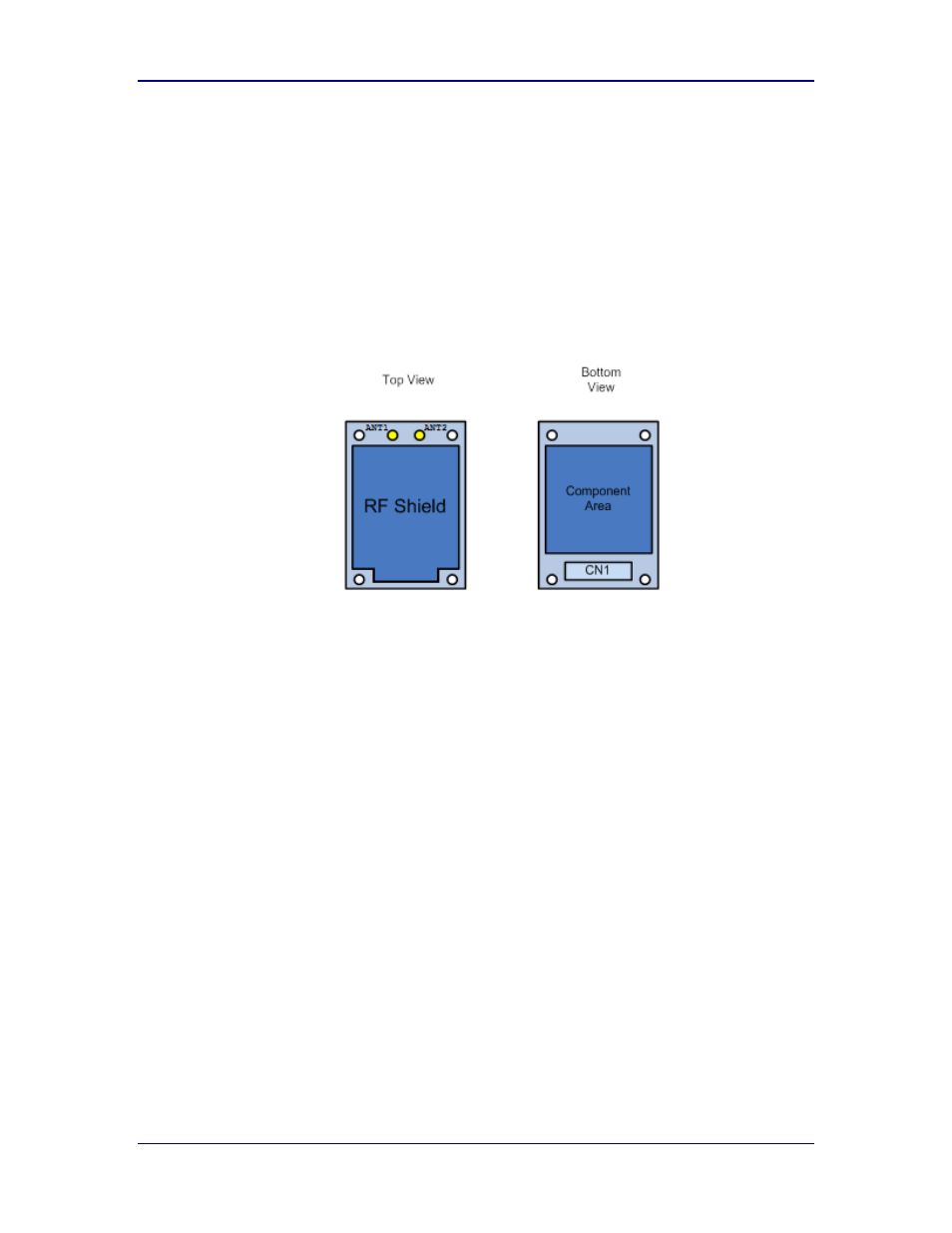

There are a total of three connectors to the radio:

CN1:

36 pin Digital Host interface.
Hirose:

DF12B-36DP-0.5V(XX) (0.50mm (.020") Pitch Plug,

Surface Mount, Dual Row, Vertical, 4.00mm Stack Height, 36
Circuits)

ANT1:

RF connector for 802.11a/b/g/n antenna.
Hirose U.FL

ANT2:

RF connector for 802.11a/b/g/n antenna (Default).
Hirose U.FL.
