78M6631 Data Sheet DS_6631_056
22 Rev 1
2.5.4 SPI Slave Port

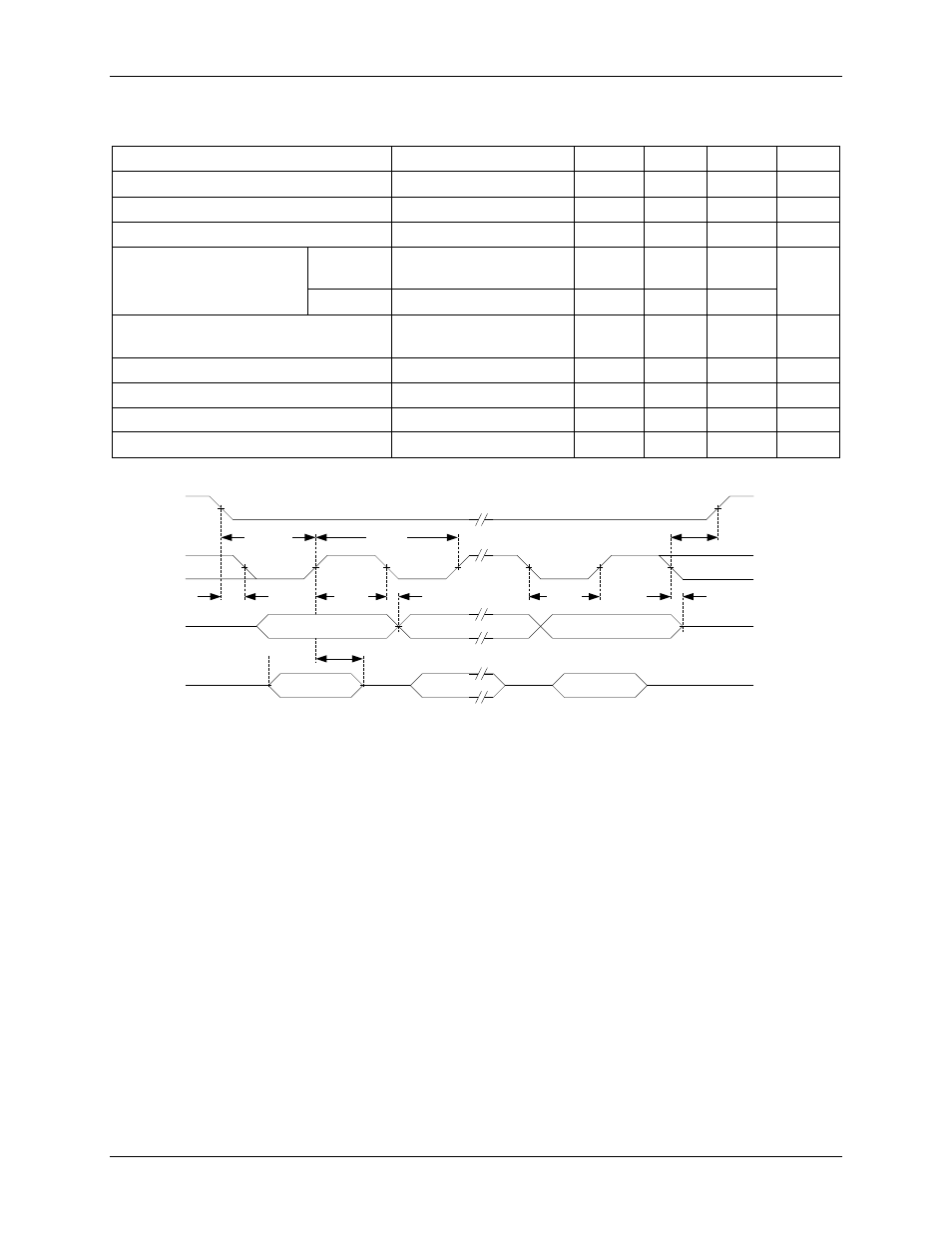

Table 17: SPI Slave Port Timing
Parameter Condition Min Typ Max Unit
t
SPIcyc
PCLK cycle time 1 µ s
t
SPILead
Enable lead time 15 ns
t
SPILag
Enable lag time 0 ns
t
SPIW
PCLK pulse width
High 40
ns
Low 40
t
SPISCK
PCSZ to first PCLK fall
Ignore if PCLK is low
when PCSZ falls
2 ns
t
SPIDIS
Disable time 0 ns
t
SPIEV
PCLK to Data Out 15 ns
t
SPISU
Data input setup time 10 ns
t
SPIH
Data input hold time 5 ns
MSB OUT LSB OUT
MSB IN LSB IN
t
SPIcyc
t
SPILead
t
SPILag
t
SPISCK
t
SPIH
t
SPIW
t
SPIEV
t
SPIW t
SPIDIS
PCSZ
PCLK
PSDI
PSDO
Figure 5: SPI Slave Port Timing
