Page 4
www.EZURiO.com
DSH_BTM402_0v9 BISM2 PA Data Sheet.DOC
© 2007 EZURiO Ltd
4

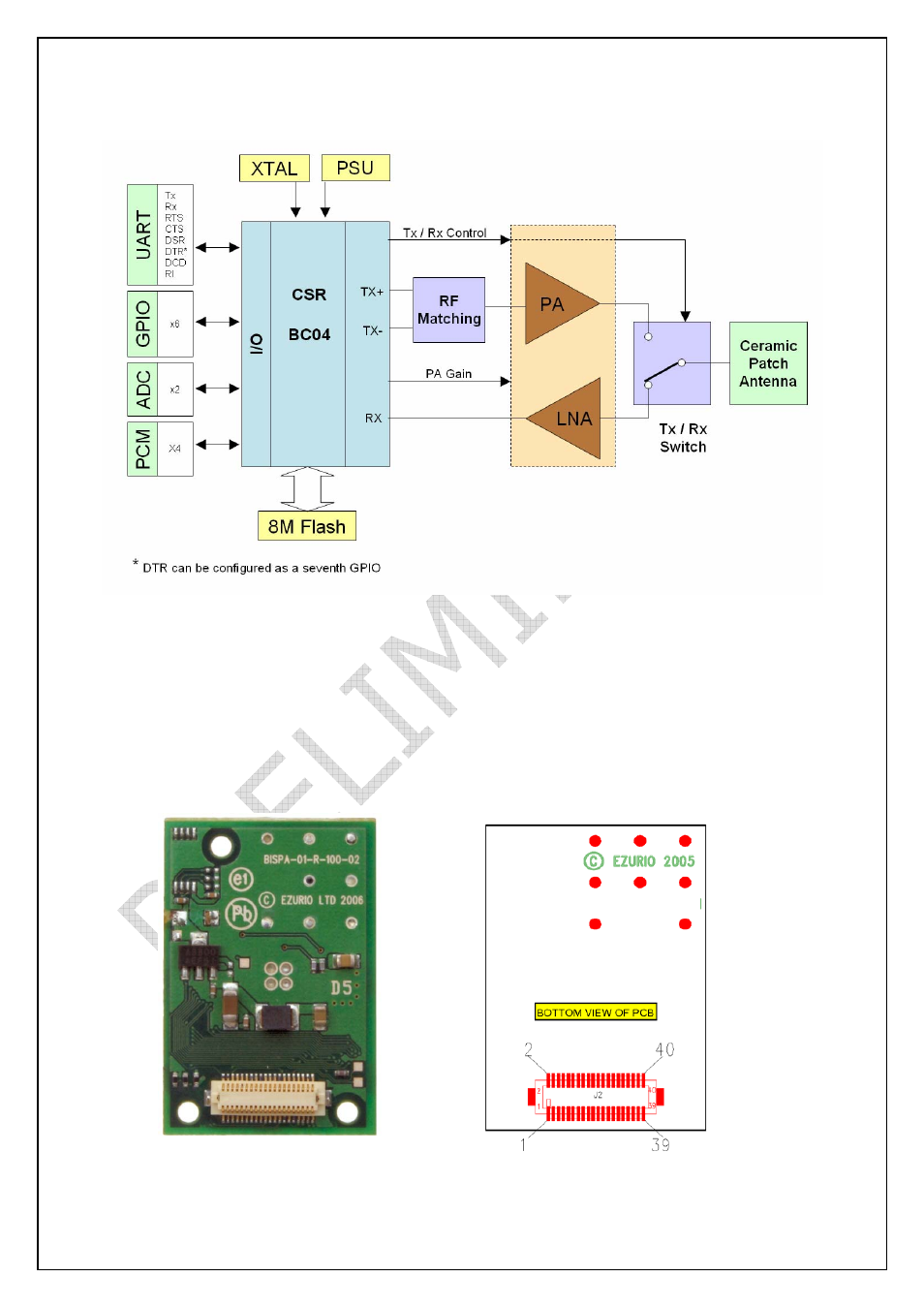

3. Functional Block Diagram
3.1
Interconnection
The Module is equipped with a 40-pin 0.5mm pitch board-to-board connector that connects to the
application platform.
Note that the underside (connector side) of the pcb contains a number of components. Sufficient
clearance must be maintained on the mating pcb to guarantee clearance.
