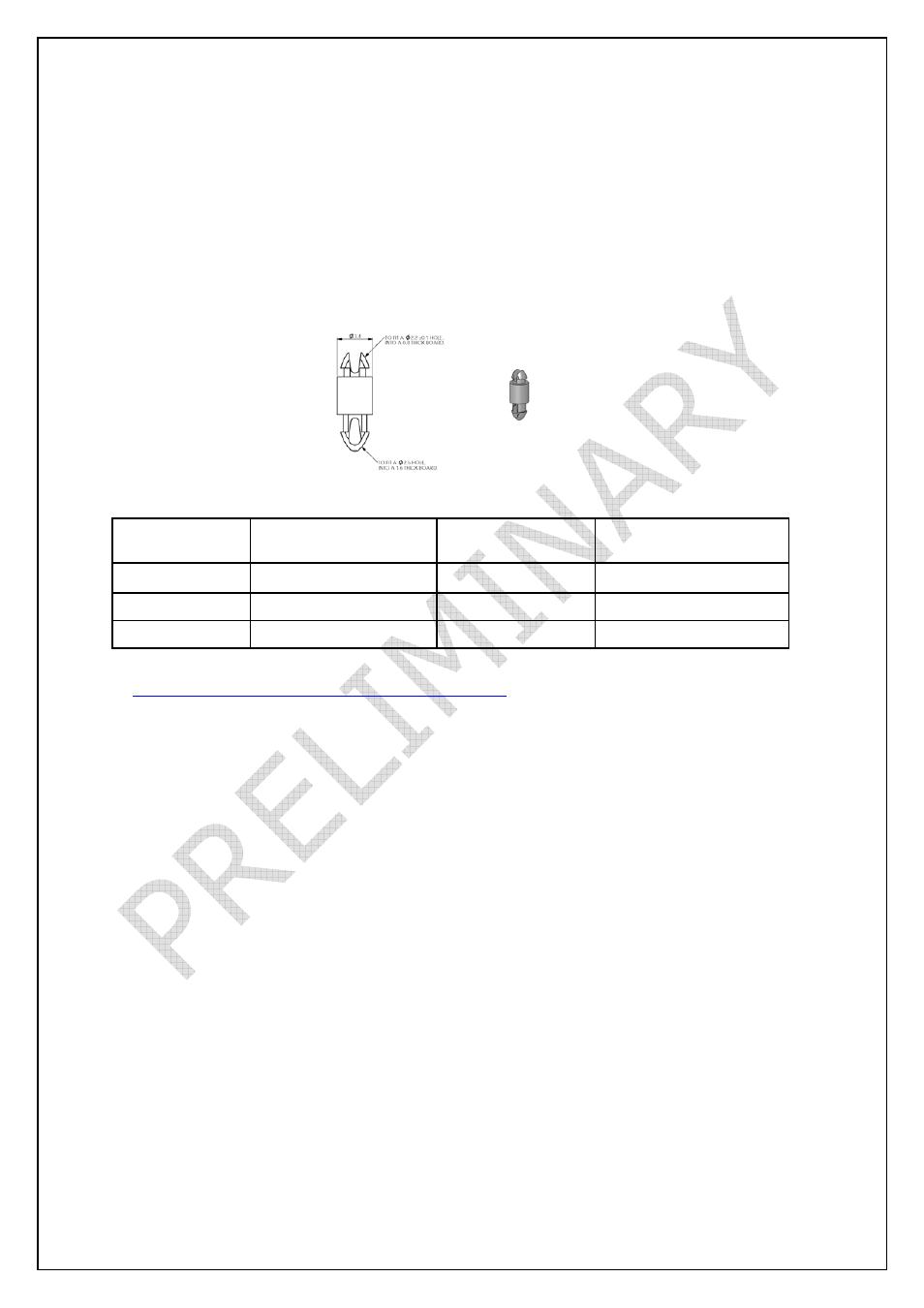

10.5.1 Fixing Pillars
EZURiO in conjunction with Richco has designed a mounting pillar for use with the Bluetooth Serial
Module. This allows the module to be securely held to a primary pcb using snap fit details. A variety
of different heights are available to accommodate different variants of Hirose stacked connectors.
Pillars supporting a 3.5mm stacked board height can be supplied by EZURiO. These and alternative
spacings can also be ordered directly from Richco.
Customer designs using these pillars should use 2.5mm diameter holes on a 1.6mm thick PCB. in
conjunction with the 3.3 mm stacked height Hirose if they are to take advantage of this.
Board Spacing
Part number
Source
Matching HRS PCB
Socket
3.3 mm
NPR2005-153-3.3
EZURiO / Richco
CL537-0032-4-86
4.1 mm
NPR2005-153-4.1
Richco
CL537-0057-5-86
5.1 mm
NPR2005-153-5.1
Richco
CL537-0157-0-86
See
r detail information on the PCB socket.
