Package Information
Electrical Disturbances Three areas of the FingerChip device must never be in contact with the casing, or any
other component, so as to avoid electrical disturbances. These areas are shown in Fig-
ure 21:

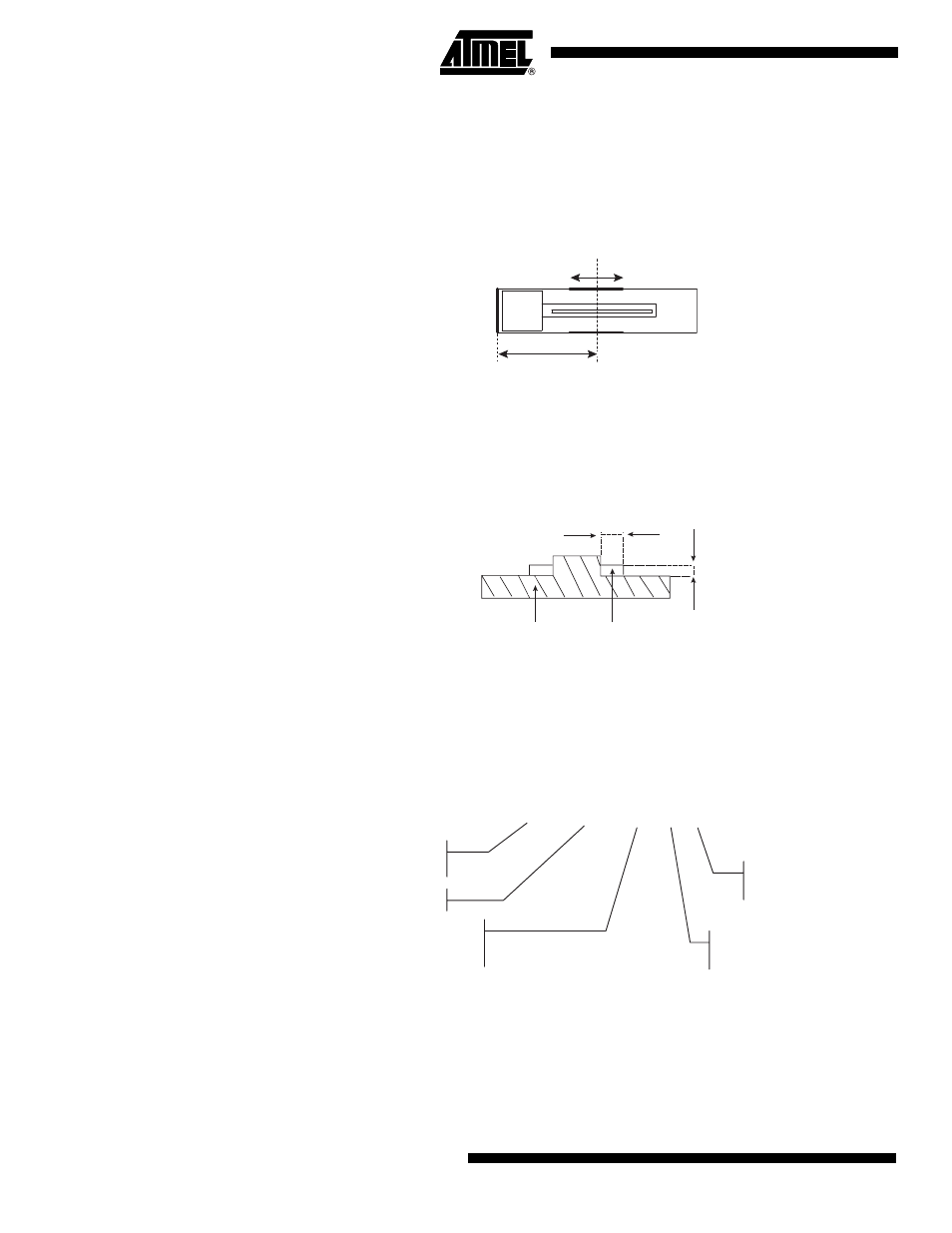

Figure 21. Sensitive Areas
Figure 22. Epoxy Overflow
Maximum epoxy overflow width: 0.35 mm on the die edge.
Maximum epoxy overflow thickness: 0.33 mm.
Note: Refer to Figure 19 on page 33.
Ordering Information
Package Device
11.5 mm
6 mm
0.35
0.33
Fingerchip Epoxy Glue Overflow
AA Section
AT77C
Atmel prefix
FingerChip family
Device type
Temperature range
V: -40˚ to +85˚C
Quality Level: Standard
Package
CB08: Chip On Board (COB)
CBXX 105A V
_
