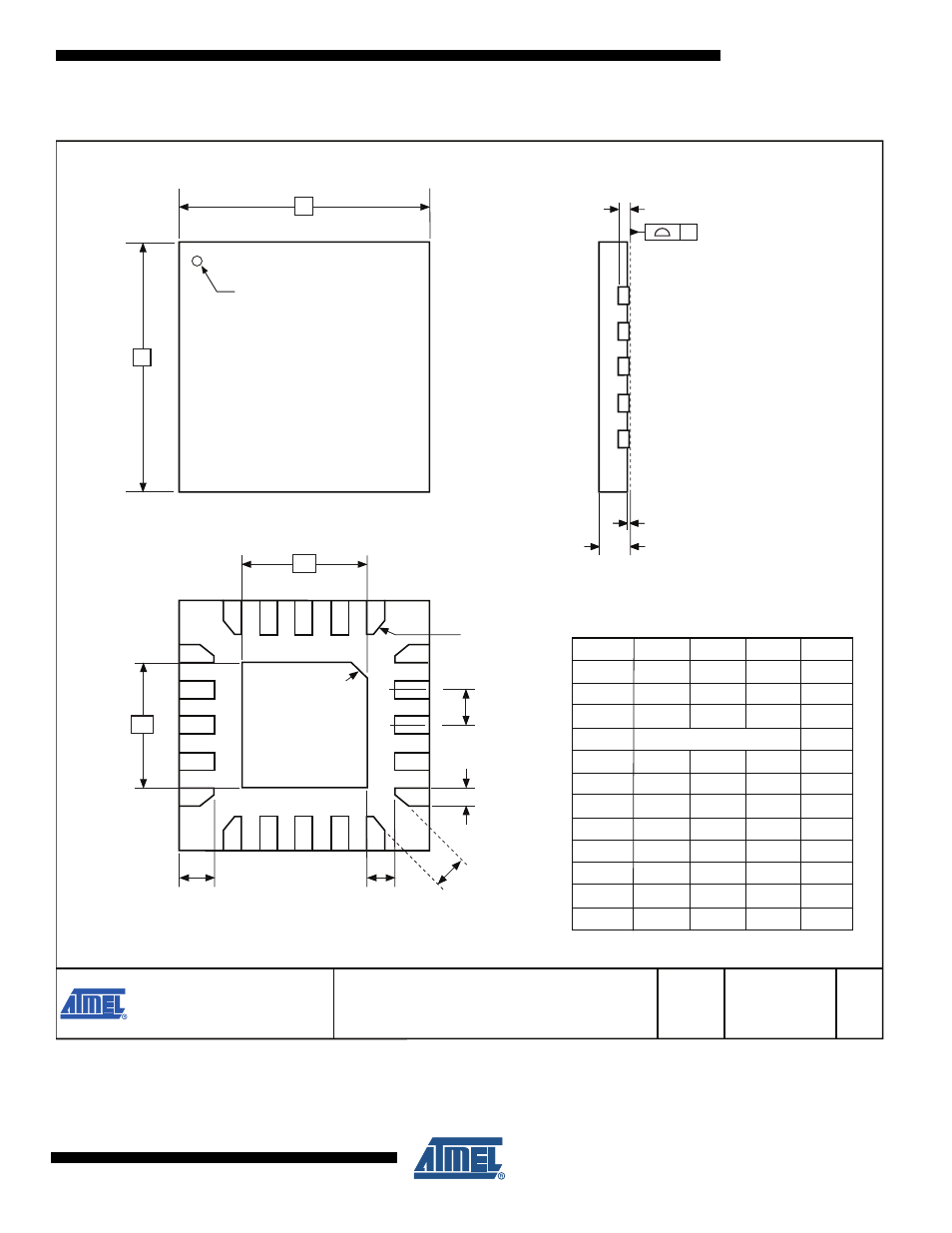

5.6 Mechanical Dimensions
TITLE DRAWING NO. GPC REV.
Package Drawing Contact:
[email protected]
20M2 ZFC B
20M2, 20-pad, 3 x 3 x 0.85 mm Body, Lead Pitch 0.45 mm,
1.55 x 1.55 mm Exposed Pad, Thermally Enhanced
Plastic Very Thin Quad Flat No Lead Package (VQFN)
10/24/08
15
14
13
12
11
1
2
3
4
5
16 17 18 19 20
10 9 8 7 6
D2
E2
e
b
K L
Pin #1 Chamfer
(C 0.3)
D
E
SIDE VIEW
A1
y
Pin 1 ID
BOTTOM VIEW
TOP VIEW
A1
A
C
C0.18 (8X)
0.3 Ref (4x)
COMMON DIMENSIONS
(Unit of Measure = mm)
SYMBOL MIN NOM MAX NOTE
A 0.75 0.80 0.85
A1 0.00 0.02 0.05
b 0.17 0.22 0.27
C 0.152
D 2.90 3.00 3.10
D2 1.40 1.55 1.70
E 2.90 3.00 3.10
E2 1.40 1.55 1.70
e – 0.45 –
L 0.35 0.40 0.45
K 0.20 – –
y 0.00 – 0.08
