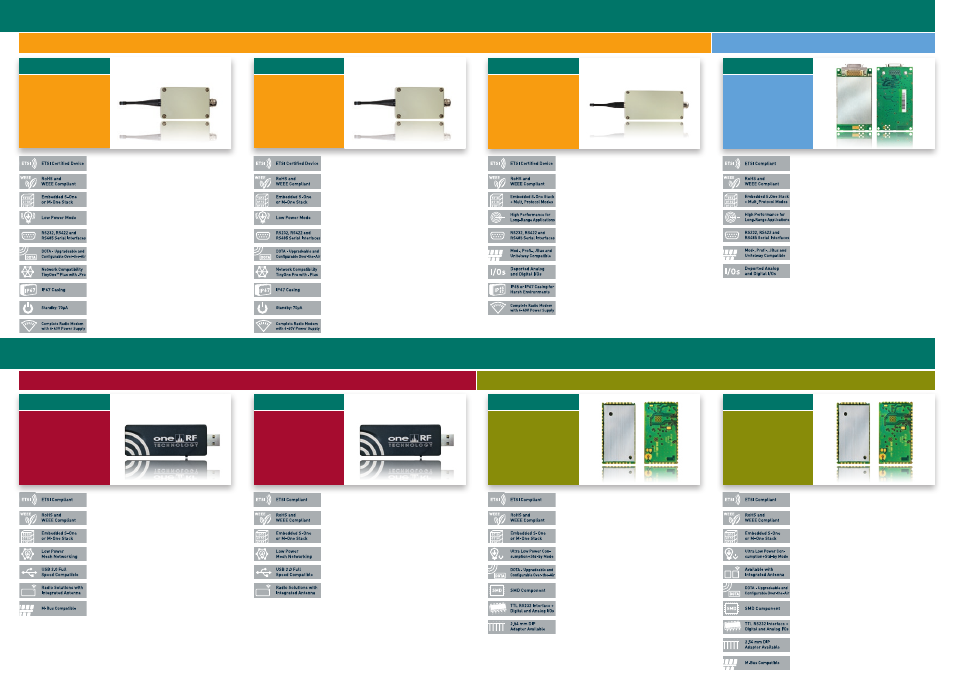

License-free system for Frequencies ‹1 GHz

Terminal

9.6 Kbps - 500 mW

powerone

™

868 MHz

radio modems

Terminal

Modem

License-free system

for frequencies ‹1 GHz

Terminal

38.4 Kbps - 25 mW

Tinyone

™

Plus 868 MHz

radio modems

Terminal

38.4 Kbps - 500 mW

Tinyone

™

Pro 868 MHz

radio modems

TinyOne™ Lite USB dongle radio modems
are plug & play USB 2.0 full-speed com-
patible radio solutions with integrated
antenna. This compact 10 mW ETSI
compliant radio modem is equipped with
the advanced S-One or M-One stack. This
modem can be used as a simple mobile
cable replacement, as a concentrator, or
a sniffer for debugging and downloading
information from wireless sensor network
applications.

TinyOne™ Plus USB dongle radio modems
are plug & play USB 2.0 full-speed com-
patible radio solutions with integrated
antenna. This compact 25 mW ETSI com-
pliant radio modem is equipped with the
advanced in-house S-One or M-One stack
and is compatible with TinyOne™ Pro and
TinyOne™ Plus terminals. This modem is
used as a simple mobile cable replace-
ment, as a concentrator, or as a sniffer
for debugging and downloading information
from wireless sensor network applications.

License-free system for Frequencies ‹1 GHz

PowerOne™ 868 MHz radio modems are a
complete ETSI certified RF solution for
long-range reliable wireless data trans-
mission. With a line-of-sight range of
16,000 m and featuring the powerful S-ONE
embedded firmware, these 500 mW radio
modems bring high efficiency to wireless
applications such as rural and urban tele-
metry, GPS data transmission for localiza-
tion & fleet management, urban display
monitoring, weather stations control and
industrial control and are compatible with
Profibus, Modbus, and Unitelway protocols.
PowerOne™ radio modems are available in
a metallic IP65 or IP67 casing, with fixed or
removable quarter antenna, with a range
of 6-40 V, support RS232/RS485/RS422
serial interfaces, and provide integrated or
external I/O copy management.

Modem

38.4 Kbps - 25 mW

Tinyone

™

Plus 868 MHz

USB dongle modems

License-free system

for frequencies ‹1 GHz

License-free system

for frequencies ‹1 GHz

Modem

38.4 Kbps - 10 mW

Tinyone

™

Lite 868 MHz

USB dongle modems

License-free system

for frequencies ‹1 GHz

License-free system

for frequencies ‹1 GHz

compact

PowerOne™ OEM RF modules, working
in the license-free 868 MHz ISM band are
high power radio solutions for long-range
applications. Due to high RF perform-
ance and the powerful S-ONE embedded
firmware, the modules are perfectly
suited for long distance data transmis-
sion systems. These RF modules include
RS232/RS485/RS422 serial interfaces
and are ModBus, ProfiBus, JBus, and
Unitelway compatible. The modules can
be easily integrated into an application,
thus reducing valuable development time
and costs for industrial applications, I/O
management, GPS data transmission for
localization & fleet management, and
urban display monitoring.

Compact

9.6 Kbps - 500 mW

powerone

™

868 MHz

RF modules

License-free system

for frequencies ‹1 GHz

The TinyOne™ Plus IP67 radio modem
is a complete ETSI certified low-cost RF
solution in the license-free 868 MHz ISM
band for harsh environments and weather
conditions. The modem includes a 25 mW
multi-channel radio module with advanced
proprietary embedded standard firmware
(S-ONE) or mesh networking (M-ONE),
and a reinforced hard metal casing with
fixed or removable quarter antenna. With a
range of 6-40 V, supporting RS232/RS485/
RS422 serial interfaces and an efficient
low-power mode, this modem is optimal
for outdoor applications such as telemetry,
irrigation, urban traffic control, or urban
display control and is capable of transmit-
ting data up to 1,500 m. TinyOne™ Plus is
compatible with the extended 500 mW
TinyOne™ Pro, for backbone network
topology and is upgradeable over-the-air.

The TinyOne™ Pro IP67 radio modem is a
complete ETSI certified low-cost RF and
long-range solution in the license-free
868 MHz ISM band for harsh environments
and weather conditions. The modem is the
500 mW extension of the TinyOne™ Plus 25
mW and is multi-channel capable of trans-
mitting data up to 4,000 m. With a range
of 6-40 V, supporting RS232/RS485/RS422
serial interfaces, advanced proprietary
embedded standard firmware (S-ONE) or
mesh low-power networking (M-ONE), and
a reinforced hard metal casing with fixed or
removable quarter antenna, this modem is
optimal for long-range outdoor applications
such as remote monitoring for the water,
petroleum, and gas industries, traffic lights,
and irrigation. TinyOne™ Pro is compatible
with the TinyOne™ Plus backbone network
topology and is upgradeable over-the-air.

Embedded

TinyOne

™ Lite OEM RF modules are based on

Telit’s TinyOne™ concept and are optimized
for highly reliable communications and pro-
vide ultra-low-power for maximum battery life
at a low price for applications ranging from
energy management and building control to
machine health monitoring. Available with or
without integrated antenna, these pre-certi-
fied SMD RF modules provide a TTL RS232
interface, integrated digital and analog I/Os,
work in the license-free ISM band of 868 MHz,
and offer the advanced embedded proprietary
S-One stack including an optional wireless
M-BUS and M-One stack. These modules are
easily integrated into a system, thus reducing
development time and cost while providing
highly-reliable communications and ultra-
low-power for maximum battery life in a wide
range of sensor network applications such as
those in the growing AMR/AMI market.

Embedded

38.4 Kbps - 10 mW

Tinyone

™

Lite 868 MHz

RF modules

License-free system

for frequencies ‹1 GHz

TinyOne™ Lite OEM RF modules are
based on Telit’s TinyOne™ concept and are
designed for low consumption volumes
at a low price for applications such as
cable replacement, meter management
and temperature monitoring. TinyOne™
Lite is tailored for use with battery and
line powered wireless devices for applica-
tions that require proven performance and
scalability. These pre-certified SMD RF
modules, working in the license-free ISM
band of 433 MHz have advanced embedded
proprietary S-One and M-One stacks and
are easily integrated, thus reducing devel-
opment time and cost.

Embedded

100 Kbps - 10 mW

Tinyone

™

Lite 433 MHz

RF modules

License-free system

for frequencies ‹1 GHz

See also other documents in the category Rainbow Electronics Wireless Headsets:
