RFM02
Tel: +86-755-82973806 Fax: +86-755-82973550 E-mail: [email protected] http://www.hoperf.com
Typical Application：
• Remote control
• Remote sensor
• Wireless data collection
• Home security system
• Toys
• Tire pressure monitoring system

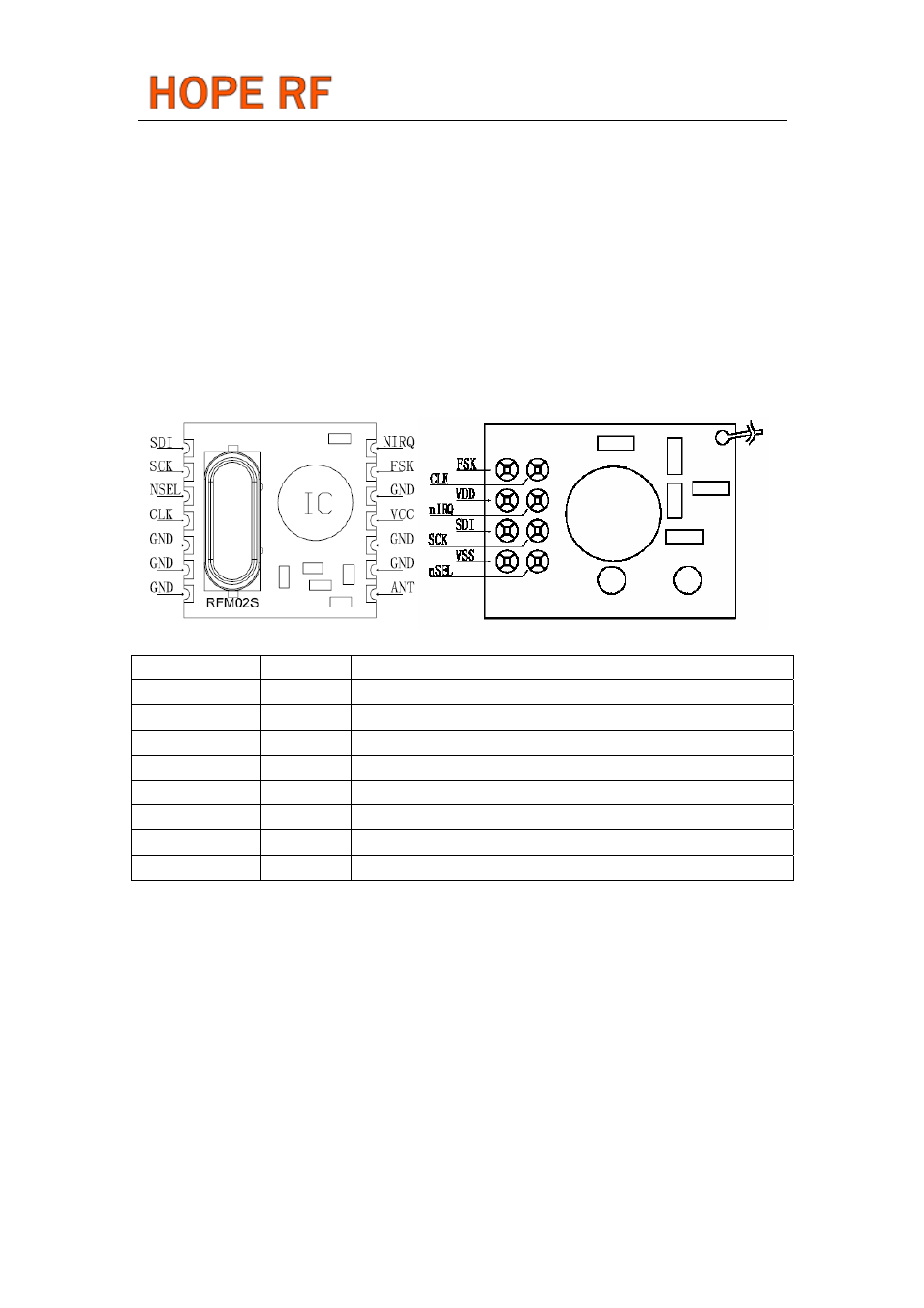

Pin Definition：
SMD DIP
Definition TYPE function
FSK DI FSK data input
CLK DO clock out for MCU (1 MHz-10 MHz)
VDD S Positive power supply
nIRQ DO Interrupts request output（active low）
SDI DI SPI data input
SCK DI SPI clock input
VSS S negative power supply, GND
nSEL DI Chip select (active low)
