RF-TVMFM01V2 TV Wall Mount

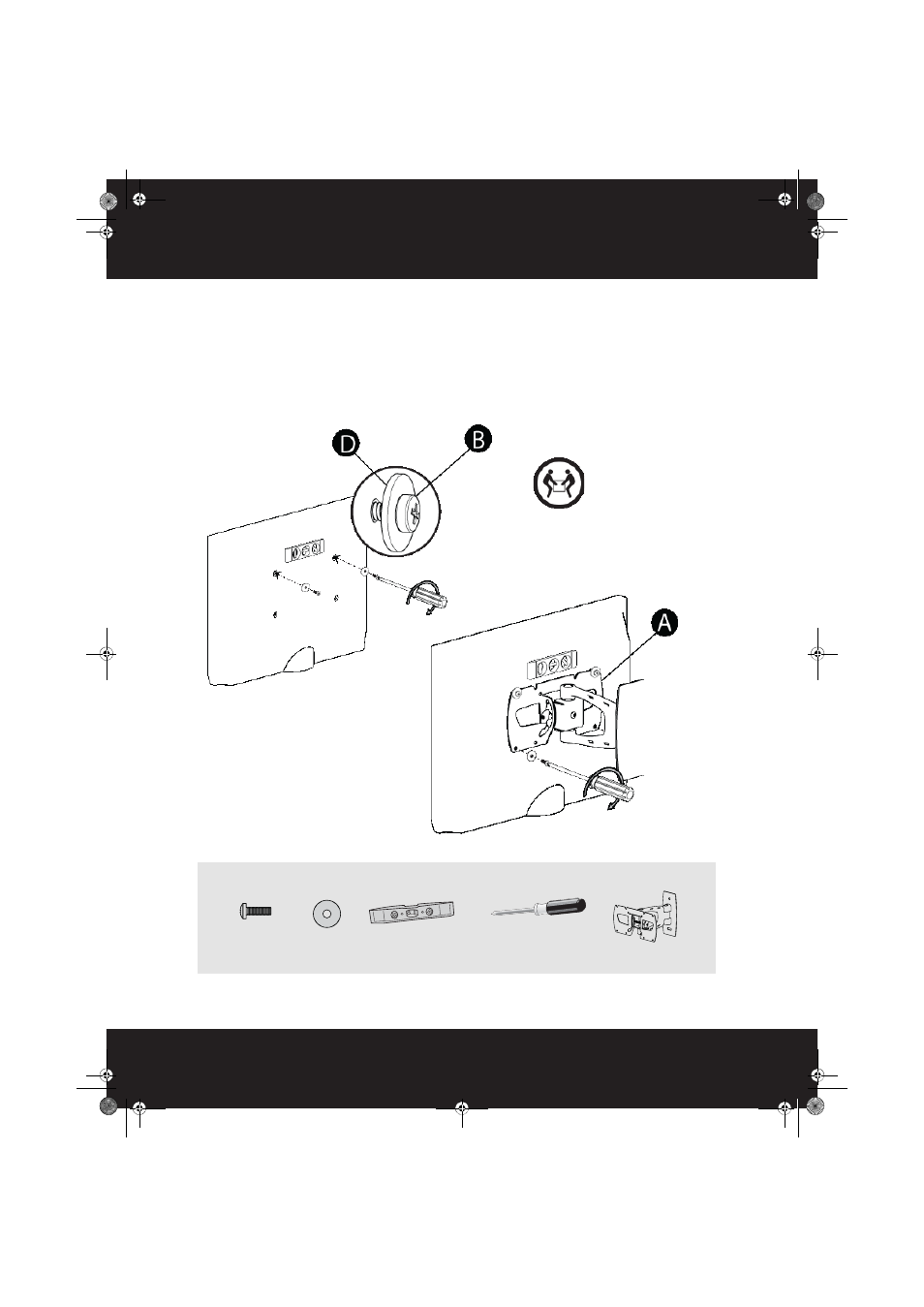

STEP 5 - Option 1: Attaching the hardware and mounting the TV to the arm assembly
for TVs with a flat back
1 Install washers (D), and screws (B) into the top two holes in the back of the TV.
2 Leave a gap between the back of the TV and the washer and screw.
3 Mount the TV by fitting the top screws and washers over the notches in the top of the arm assembly plate.
4 Install the bottom screws (B) and washers (D) into the bottom holes. If the hole pattern on your TV is 75mm
x 75mm, do not use washers.
5 Make sure that the bracket is level, then tighten all screws carefully until snug.
You’ll need
HEAVY! You will need
assistance with this step.
D (4)
B (4)
Phillips screwdriver
Screws Washers
Level
Arm assembly (A)
