RF-TVMFM01V2 TV Wall Mount

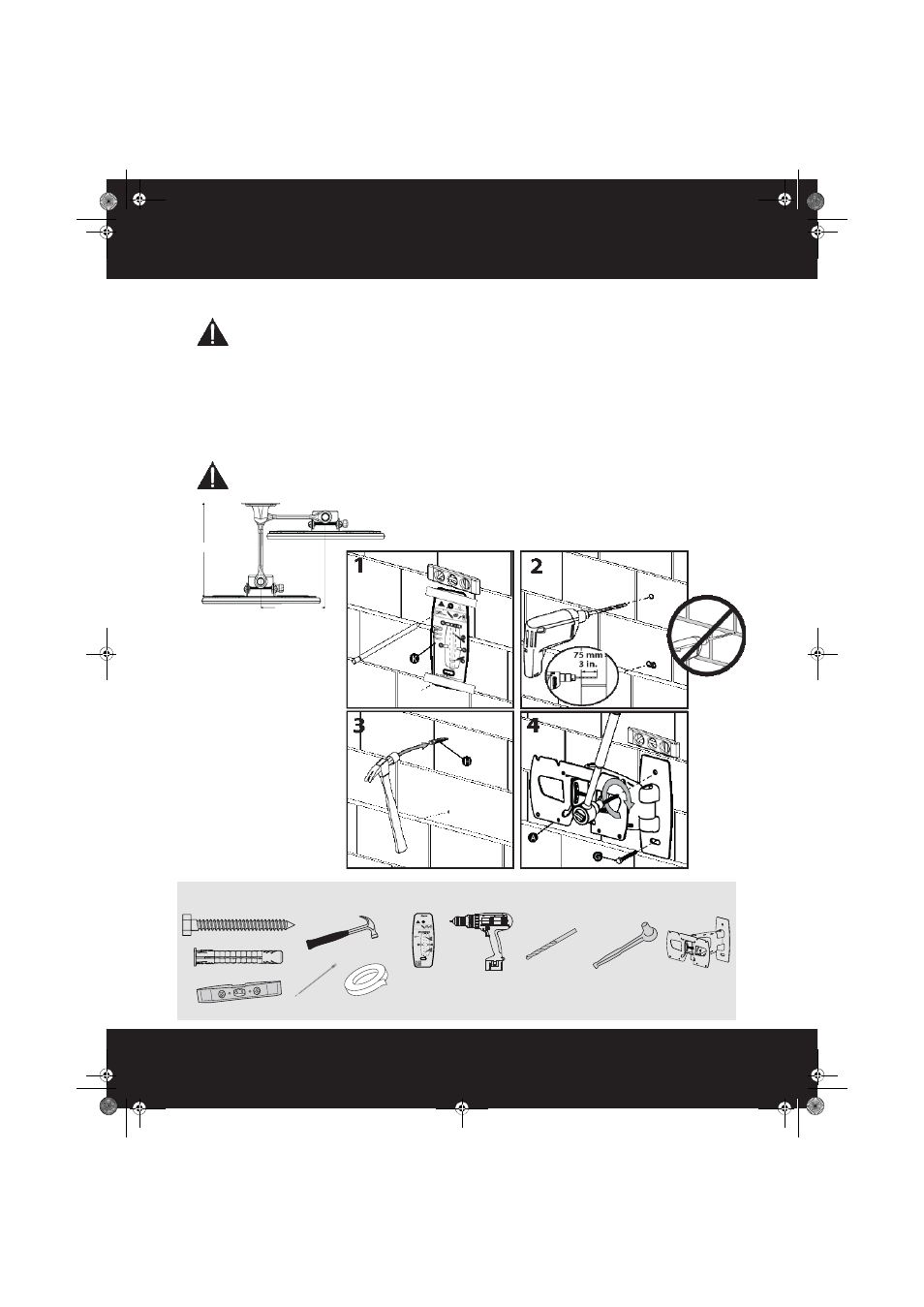

STEP 3 - Option 2: Installing on a solid concrete or concrete block wall

CAUTION: To prevent property damage or personal injury, never drill into mortar between blocks. Mount wall
plate directly onto the concrete surface.

1

Align the wall plate template (K) at the height you determined in the previous step and make sure that it is

level. Tape the wall plate template to the wall, then use a pencil to mark the lag bolt hole locations (2).

Remove the wall plate template.

2

Drill pilot holes to a depth of 3 in. (75 mm) using a 3/8 in. (10 mm) diameter masonry drill bit.

3

Insert the concrete wall anchors (H) into the pilot holes and use a hammer to make sure the anchors are

flush with the concrete surface.

4

Align the arm assembly (A) with the anchors, insert the lag bolts (G) through the holes in the arm assembly,

then tighten the lag bolts only until they are firm against the arm assembly.

CAUTION: Avoid potential injuries or property damage!

DO NOT over-tighten the lag bolts (G).

You’ll need

Note: TV shifts 5 1/2 in. (139.7 mm)
laterally from the home position to
full extension.

5 1/2 in.
(139.7 mm)

Wall

Home
position

Full
extension

Note: Minimum solid concrete
thickness: 8 in. (203mm)
Minimum concrete block size:
8 x 8 x 16 in. (203 x 203 x 406
mm)

7.71 in. (223.8 mm)

G (2)

Pencil

Drill

3/8" masonry
drill bit

1/2" socket
wrench

Level

H (2)

Hammer

Top
Haut

Parte superior

12-0678

1

Note: For wood frame
installations, use a stud

Remarque : Localisez
d'abord les montants
en bois

Nota: localice primero
las vigas de madera

Need help deciding how high to mount your TV?
Scan this QR code.
Besoin d'aide pour déterminer la hauteur de
montage du téléviseur? Numériser ce code QR.
¿Necesita ayuda para determinar la altura de
montaje de su televisor? Escanee este código QR.

RF-TVMFM01 Template • Gabarit • Plantilla

Tools Needed

Outils nécessaires

Herramientas requeridas

2

2

Template (K)

Tape

Arm
assembly (A)

RF-TVMFM01V2_13-0599_MAN_V4_ENG - GIFs.fm Page 7 Friday, June 28, 2013 8:10 AM
