RF-TVMFM01V2 TV Wall Mount
STEP 4 - Select screws, washers, and spacers
1 Select the hardware for your TV (screws, washers, and spacers). A limited number of TVs come with
mounting hardware included. (If there are screws that came with the TV, they are almost always in the holes
on the back of the TV.)
Select one of the following types of screws:
Select M4 washers (D).
For an irregular or obstructed TV back, use the following spacers:

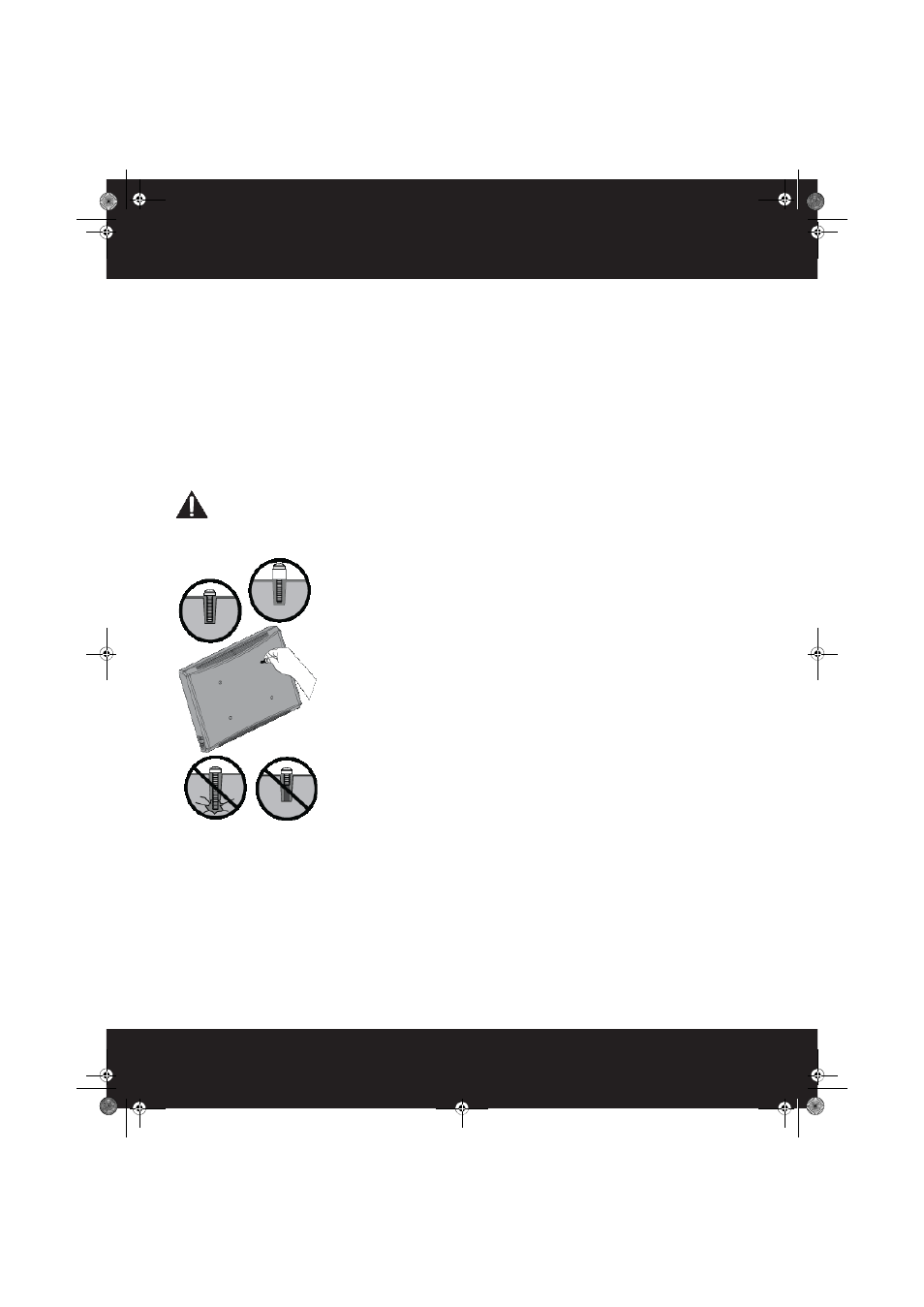

CAUTION: To avoid potential personal injuries and property damage, make sure that there are
adequate threads to secure the brackets to your TV. If you encounter resistance, stop immediately and
contact customer service. Use the shortest screw and spacer combination to accommodate your TV.
Using hardware that is too long may damage your TV. However, using a screw that is too short may
cause your TV to fall from the mount.
2 Remove the screws.
3 For a flat back TV, go to “STEP 5 - Option 1: Attaching the hardware and mounting the TV to the arm
assembly for TVs with a flat back” on page 9.
-OR-
For an obstructed back, go to “STEP 5 - Option 2: Attaching the hardware and mounting the TV to the arm
assembly for TVs with an irregular or inset back” on page 10.
M4 × 12 mm screws (B) - For a flat TV back
M4 × 35 mm screws (C) - For an irregular or obstructed TV back
Universal spacers (E)
Screw is
too long
Screw fits
correctly
Screw is
too short
