RF-TVMFM01V2 TV Wall Mount
STEP 2 - Determine whether your TV has a flat back or an irregular or obstructed
back
1 Carefully place your TV screen face-down on a cushioned, clean surface to protect the screen from damages
and scratches.
2 If your TV has a table-top stand attached, remove the stand. See the documentation that came with your TV
for instructions.
3 Temporarily lay the arm assembly (A) on the back of your TV.
4 Align the screw holes in the arm assembly with the mounting screw holes on your TV.

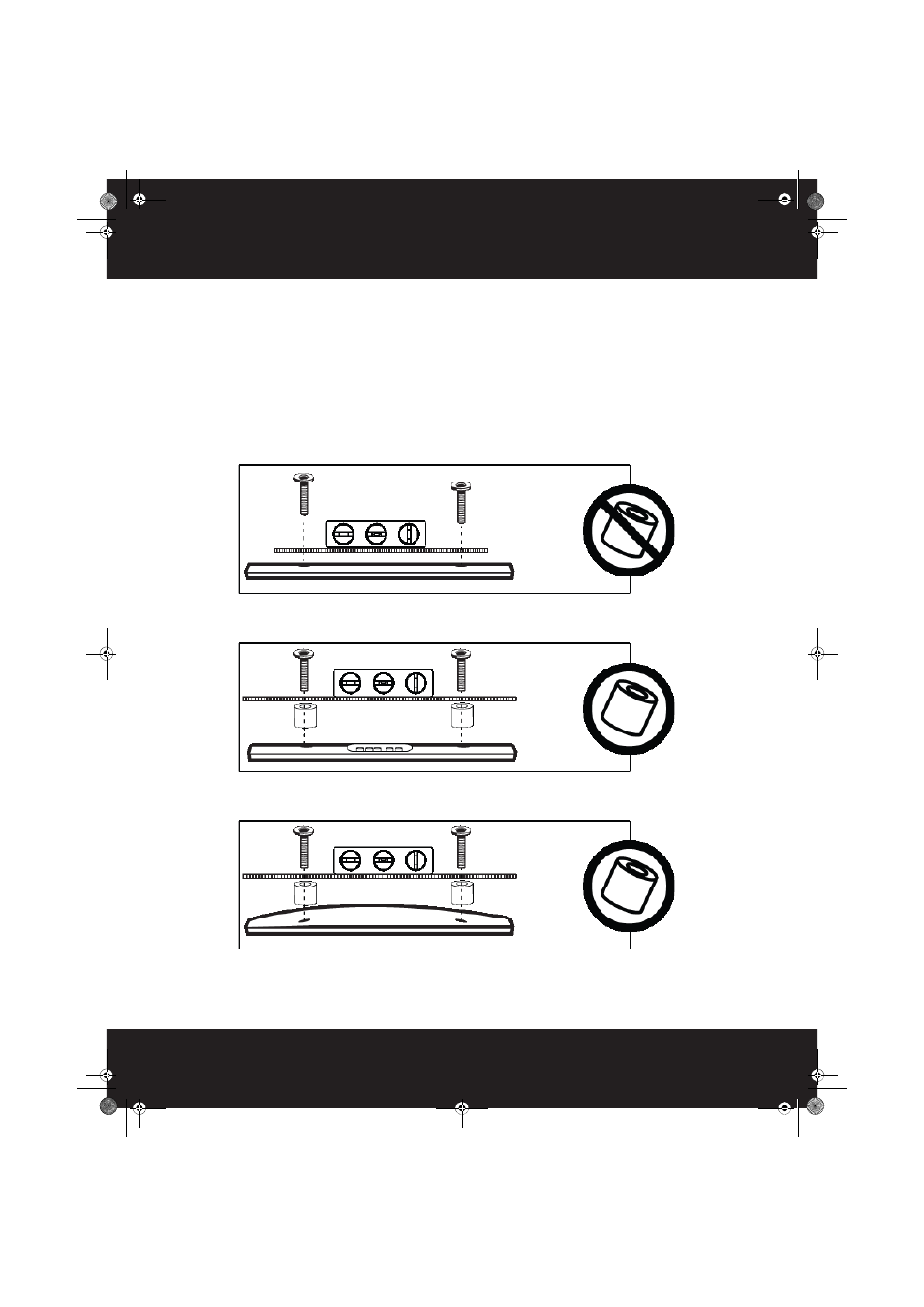

5 Identify which type of back your TV may have:
• Flat back: The bracket lays flush against the back of your TV and do not block any jacks. You do not
need spacers when assembling the wall mount.
• Obstructed back: A bracket blocks any of the jacks on the back of your TV. You will need spacers
when assembling the wall mount.
• Irregularly-shaped back: There is a gap between a bracket and some part of the back of your TV.
You will need spacers when assembling the wall mount.
6 Remove the arm assembly.
