6 Need help? Call 1-800-620-2790 (U.S. and Canada) or 01-800-926-3010 (Mexico)
RF-TVMFM01V2 TV Wall Mount

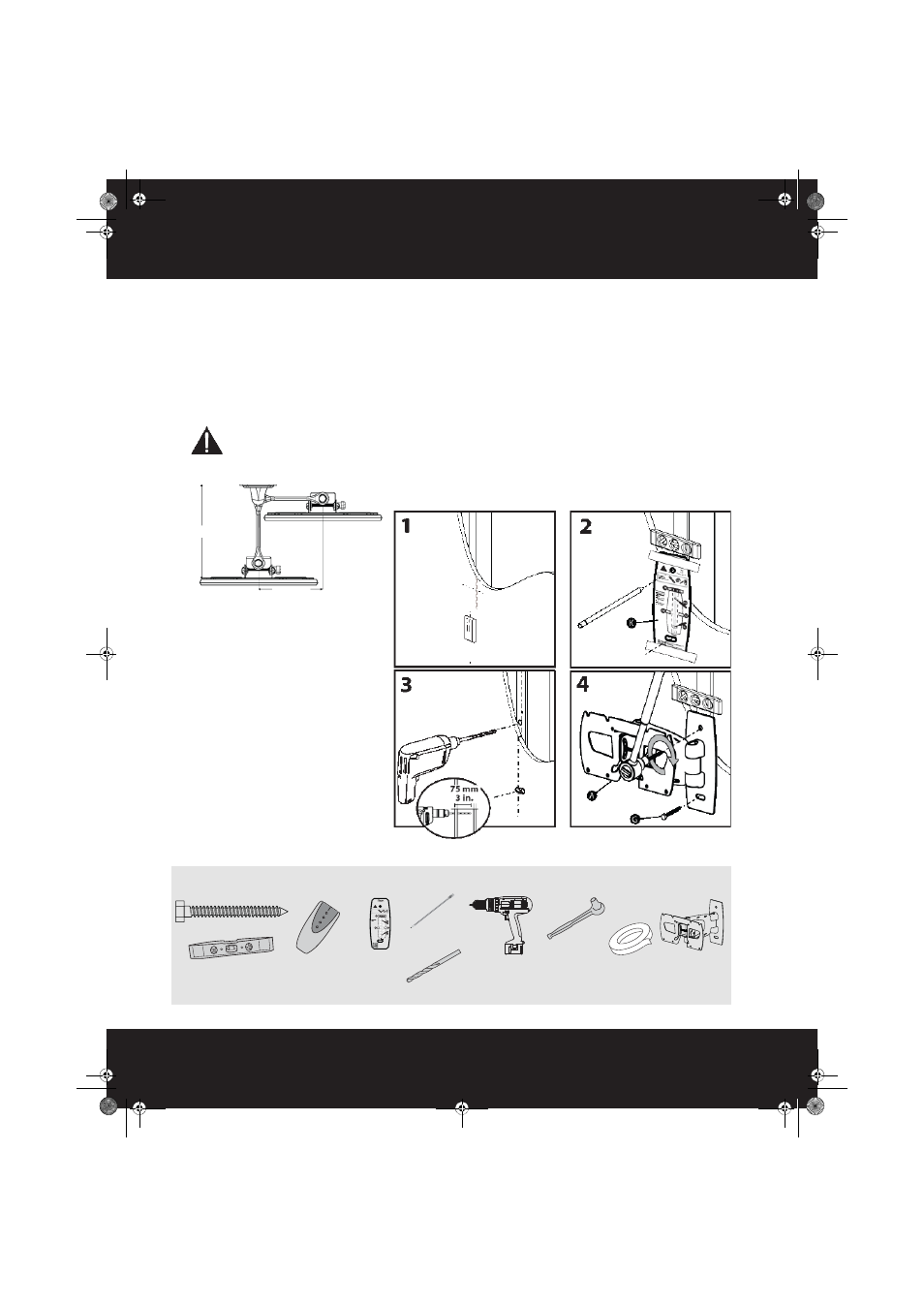

STEP 3 - Option 1: Installing on a wood stud wall
Note: Drywall covering the wall must not exceed 5/8" (16 mm).
1 Locate the stud. Verify the center of the stud with an edge-to-edge stud finder.
2 Align the wall plate template (K) at the height you determined in the previous step and make sure that it is
level. Tape the wall plate template to the wall, then use a pencil to mark the lag bolt hole locations (2) on the
stud centers. Remove the wall plate template.
3 Drill pilot holes to a depth of 3 in. (75 mm) using a 7/32 in. (5.5 mm) diameter drill bit.
4 Align the arm assembly (A) with the pilot holes, insert the lag bolts (G) through the holes in the arm
assembly, then tighten the lag bolts only until they are firm against the arm assembly.
CAUTION: Avoid potential injuries or property damage!
DO NOT over-tighten the lag bolts (G).
You’ll need
Note: TV shifts 5.5 in. (139.7 mm)
laterally from the home position to
full extension.
7.71 in. (223.8 mm)
5.5 in.
(139.7 mm)
Wall Home
position
Full
extension
Note: Minimum wood stud
size: Common 2 x 4 in.
(51 x 102 mm).
Nominal 1.5 x 3.5 in.
(38 x 89 mm)
Edge-to-edge
stud finder
G (2)
Pencil
Drill
7/32" wood drill bit
1/2" socket
wrench
Level
Template (K)
Tape
Arm
assembly (A)
Top
Haut Parte superior
12-0678
1 Note: For wood frame
installations, use a stud Remarque : Localisez
d'abord les montants
en bois Nota: localice primero
las vigas de madera
Need help deciding how high to mount your TV?
Scan this QR code.
Besoin d'aide pour déterminer la hauteur de
montage du téléviseur? Numériser ce code QR.
¿Necesita ayuda para determinar la altura de
montaje de su televisor? Escanee este código QR.
RF-TVMFM01 Template • Gabarit • Plantilla
Tools Needed Outils nécessaires Herramientas requeridas
2 2
