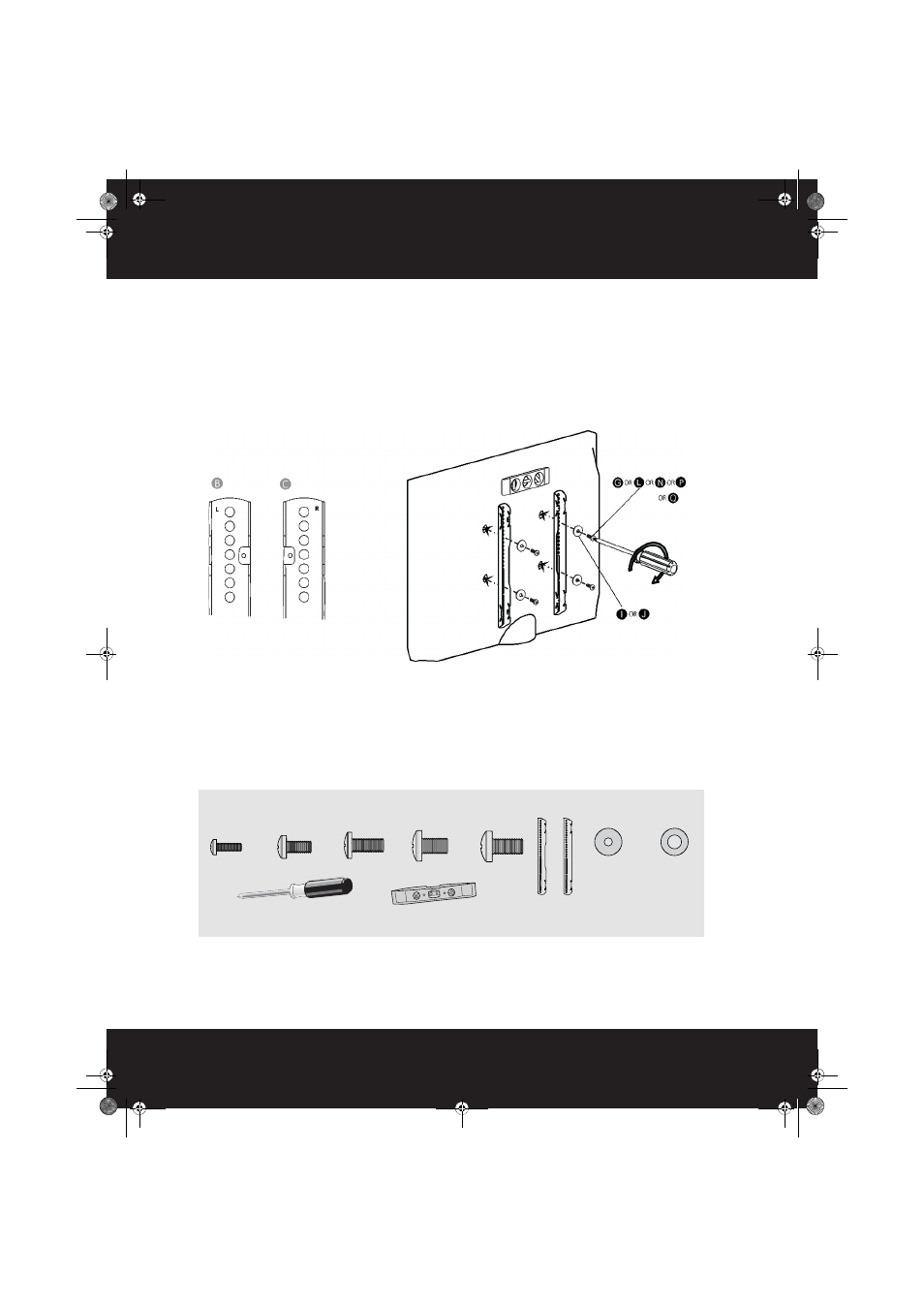

Step 3 Install the vertical TV brackets - Option 1: Installing for a TV with a flat back
1
Center the brackets vertically on the back of your TV, then align the holes on the right vertical TV bracket (B)
and left vertical TV bracket (C) with the screw holes on the back of your TV. The brackets are marked “R” for
the right bracket and “L” for the left bracket. Make sure the brackets are level.
2
Place the M4/M5 washers (I) or M6/M8 washers (J) over the holes in the TV brackets that align with the screw
holes on the back of your TV, then insert the M4 screws (G), M5 screws (L), M6 screws (N), or M8 screws (P or
Q) through the washers.
3
Tighten the screws until they are snug against the TV bracket. Do not over tighten.
You’ll need
I (4)
J (4)
G (4)
L (4)
N (4)
Phillips screwdriver
OR
OR
OR
Screws
OR
P (4)
Washers
Level
TV brackets (B and C)
Q (4)
OR
