RF-TVMFM02V2 TV Wall Mount

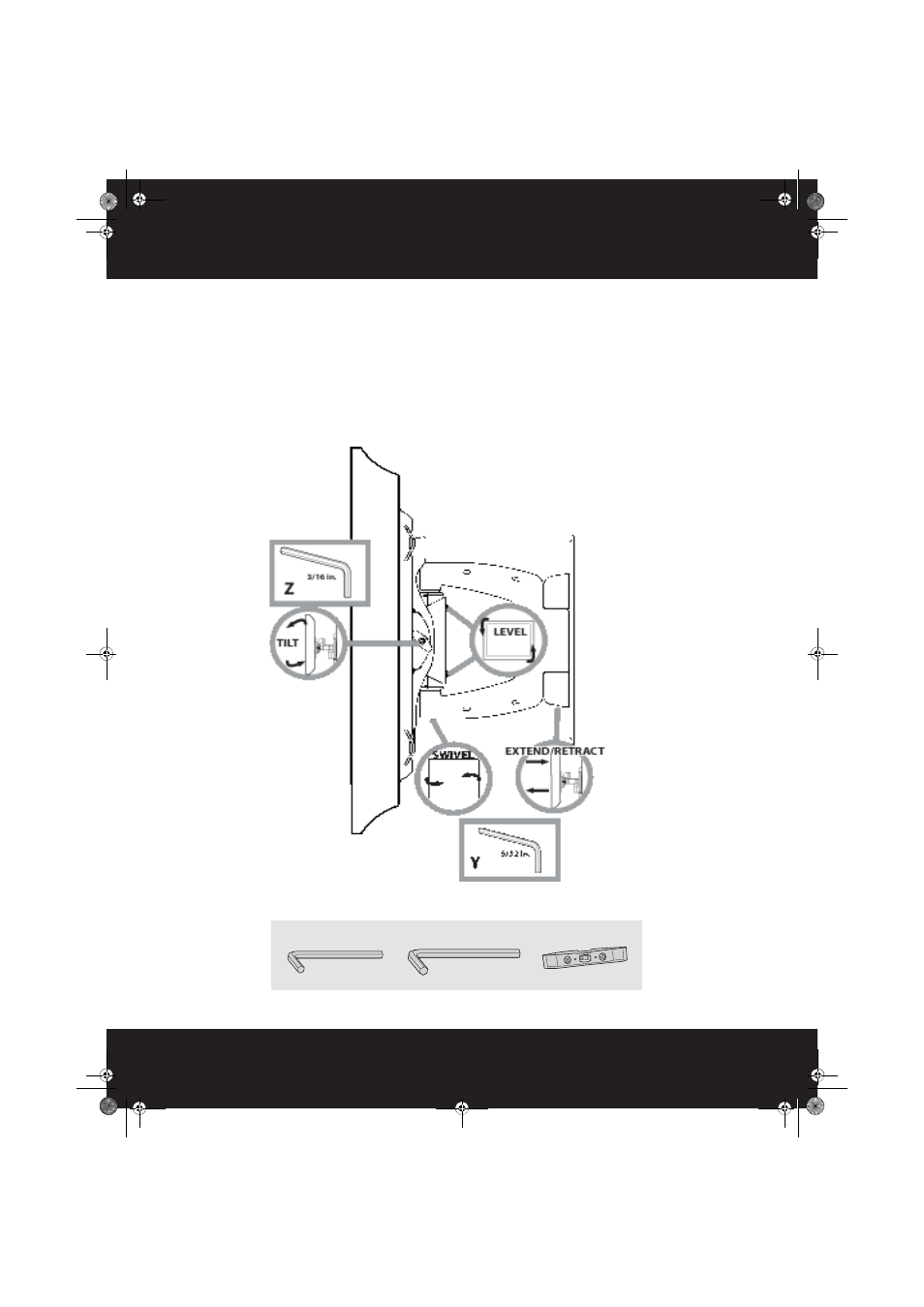

Step 8 Adjusting the tension and leveling the arm assembly
1
Loosen the two screws on the arm assembly using the 5/32" hex key (Y), then using a level, adjust the arm
assembly ± 6° either clockwise or counter-clockwise to level it.
2
Using a 3/16” hex key (Z), or your hand, loosen the knob on the right side of the arm assembly, then adjust
the tilt ± 11°.
3
Using a 5/32" hex key (Y) loosen the screw on the bottom front of the arm assembly and adjust the swivel by
grasping the TV on both edges and moving it.
4
Using a 5/32" hex key (Y) loosen the screw on the bottom rear of the arm assembly and adjust the
extend/retract by grasping the TV on both edges and pushing back or pulling forward.
5
Retighten all adjustment points (screws and knobs). Do not overtighten.
You’ll need
Y (1)
Level
Z (1)
