RF-TVMFM02V2 TV Wall Mount
Step 7 Attach the arm assembly

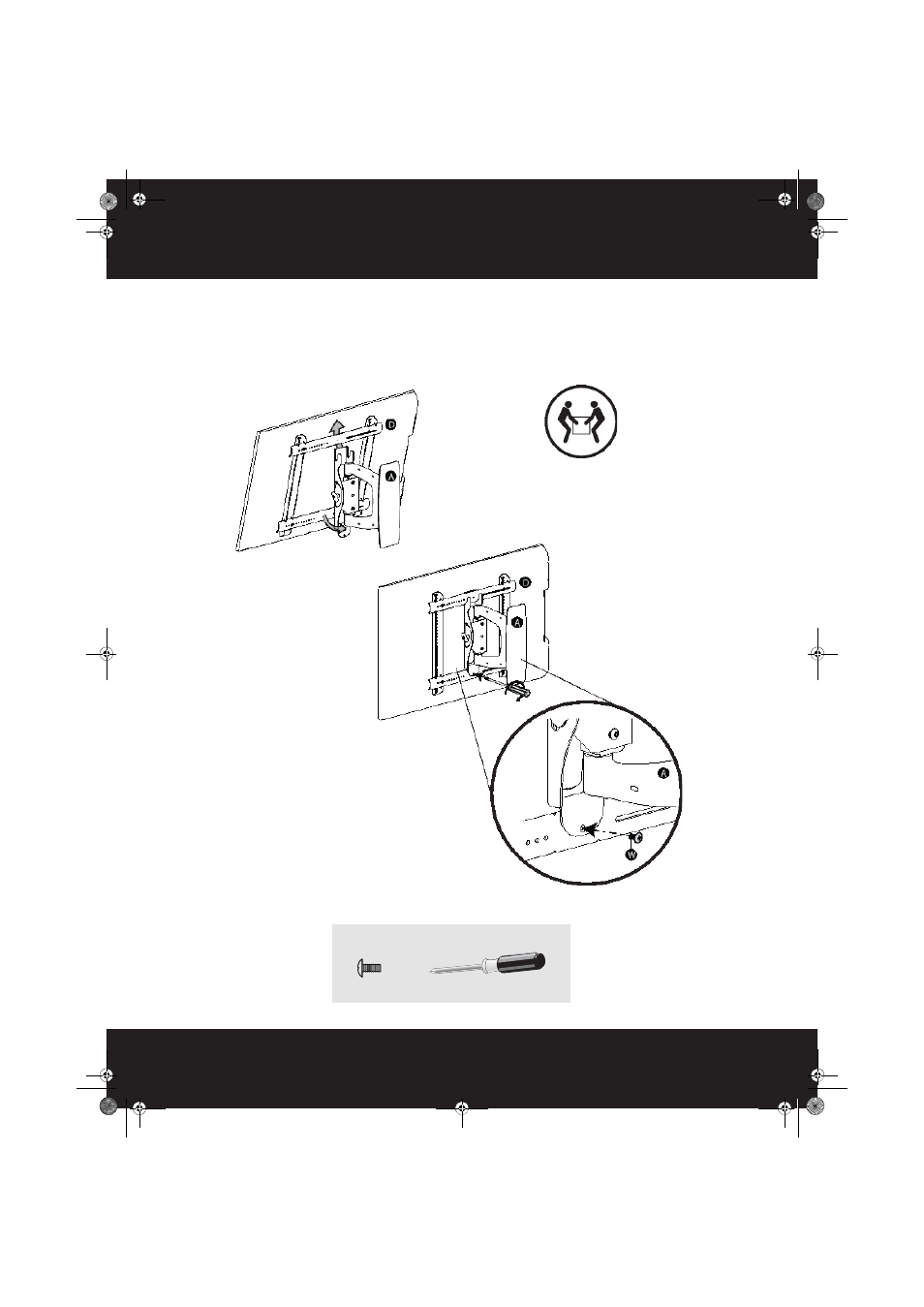

1 Hang the TV, with the brackets attached, on the upper lip of the arm assembly (A), as shown below.
2 Lower the bottom edge of the of the horizontal TV bracket (D) to the bottom of the arm assembly (A).
3 Secure the arm assembly (A) with the 8-32 x 3/8” cap screw (W) using a phillips screw driver. Do not
overtighten the screw.
You’ll need
HEAVY! You will need
assistance with this step.
W (1) Phillips screwdriver
