Operating Instructions
9081 Function Submenu List and Descriptions

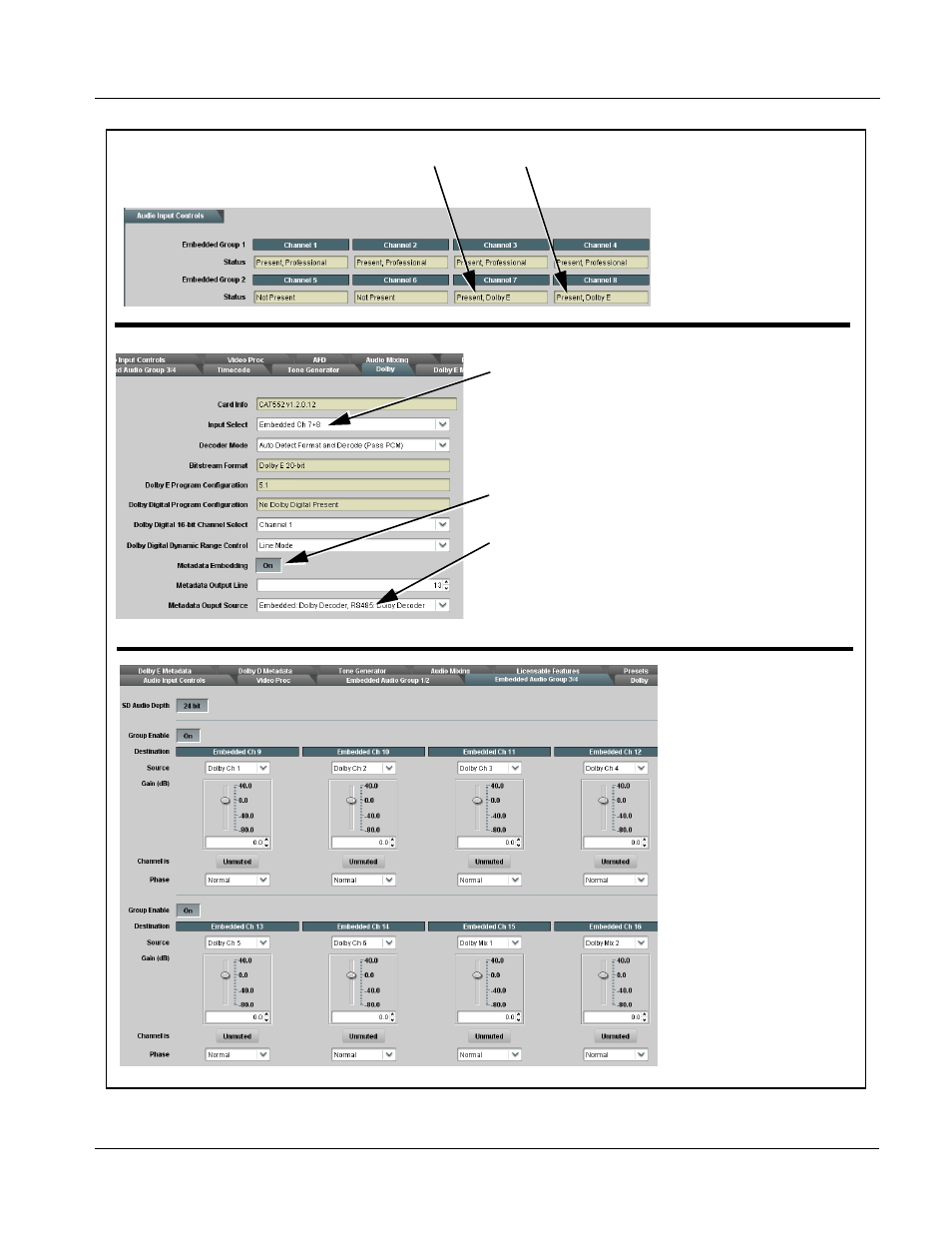

Figure 3-6 Dolby
®
E Processing Example (Sheet 2 of 2)
Using the Status display in the Audio Input Controls function, embedded channel pair 7+8 shows
Dolby
® E data.
In this example, since the
decoder displays a “5.1”
configuration, the eight
channels comprising this
configuration can be
embedded using eight spare
embedded channels.
As such, the eight total
decoded channels produced
(Dolby Ch 1 thru Dolby Ch 6,
and Dolby Mix 1 / Dolby Mix 2
corresponding to L, R, C, LFE,
LS, RS, and Lo/Ro monitors)
can be respectively routed to
embedded channels 9 thru 16
as shown to the left using the
Embedded Audio Group 3/4
function.
(Note that decoder channels 7
and 8 are not used in this
format.)
Embedded pair 7+8 can then be selected as the Dolby Decoder
Input Select source. The Bitstream Format and Dolby E Program
Configuration displays also show this signal as Dolby
® E; 5.1
Metadata Embedding = On allows decoder metadata embedding
into the SDI stream (on line 13 as shown).
Metadata Output Source can be set to Embedded: Dolby
Decoder, RS485: Dolby Decoder to select the decoder metadata
as the source for embedded and RS485 metadata.
