2
Setting Up 9081 Network Remote Control
2-6 9081 PRODUCT MANUAL 9081-OM (V4.6)
Setting Up 9081 Network Remote Control
Perform remote control setup in accordance with Cobalt ® reference guide
“Remote Control User Guide” (PN 9000RCS-RM).
Note: • If network remote control is to be used for the frame and the frame has not
yet been set up for remote control, Cobalt ® reference guide Remote
Control User Guide (PN 9000RCS-RM) provides thorough information and
step-by-step instructions for setting up network remote control of
COMPASS™ cards using DashBoard™. (Cobalt
® OGCP-9000 and
OGCP-9000/CC Remote Control Panel product manuals have complete
instructions for setting up remote control using a Remote Control Panel.)
Download a copy of this guide by clicking on the
Support>Documents>Reference Guides link at www.cobaltdigital.com
and then select DashBoard Remote Control Setup Guide as a download, or
contact Cobalt
® as listed in Contact Cobalt Digital Inc. (p. 1-20).
• If installing a card in a frame already equipped for, and connected to
DashBoard™, no network setup is required for the card. The card will be dis-
covered by DashBoard™ and be ready for use.

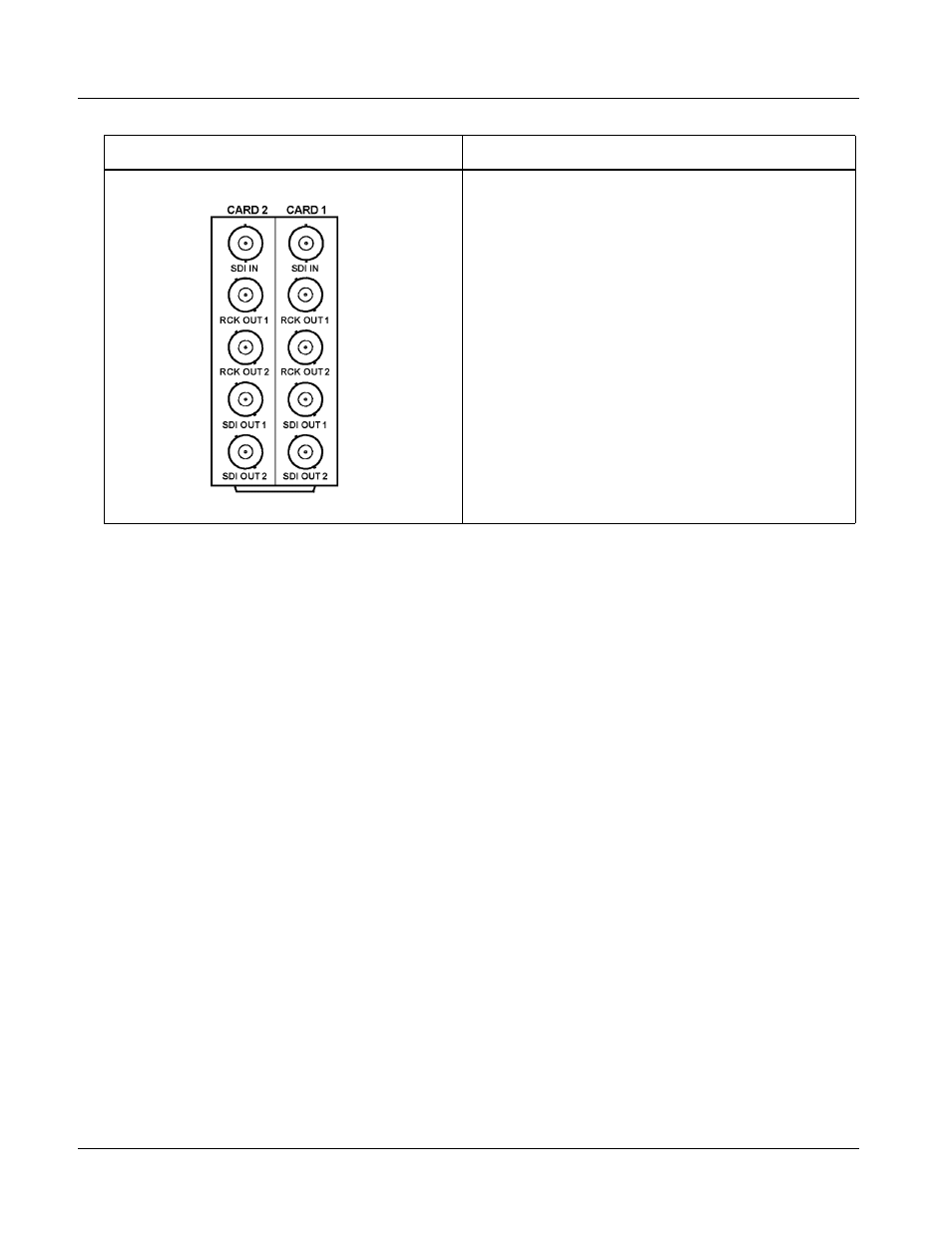

RM20-9081-A/S Split Rear Module. Provides each of the following
connections for two 9081 cards:
• HD/SD-SDI coaxial input ( SDI IN )
• HD/SD-SDI reclocked input copies ( RCK OUT 1 and
RCK OUT 2 )
• Buffered SDI coaxial outputs ( SDI OUT 1 and
SDI OUT 2 )
Note: RM20-9081-A/S Rear I/O Module compatible
only with 20-slot frames.
Table 2-1 9081 Rear I/O Modules — continued
9081 Rear I/O Module Description
