9081 Function Submenu List and Descriptions
3-20 9081 PRODUCT MANUAL 9081-OM (V4.6)
(continued)

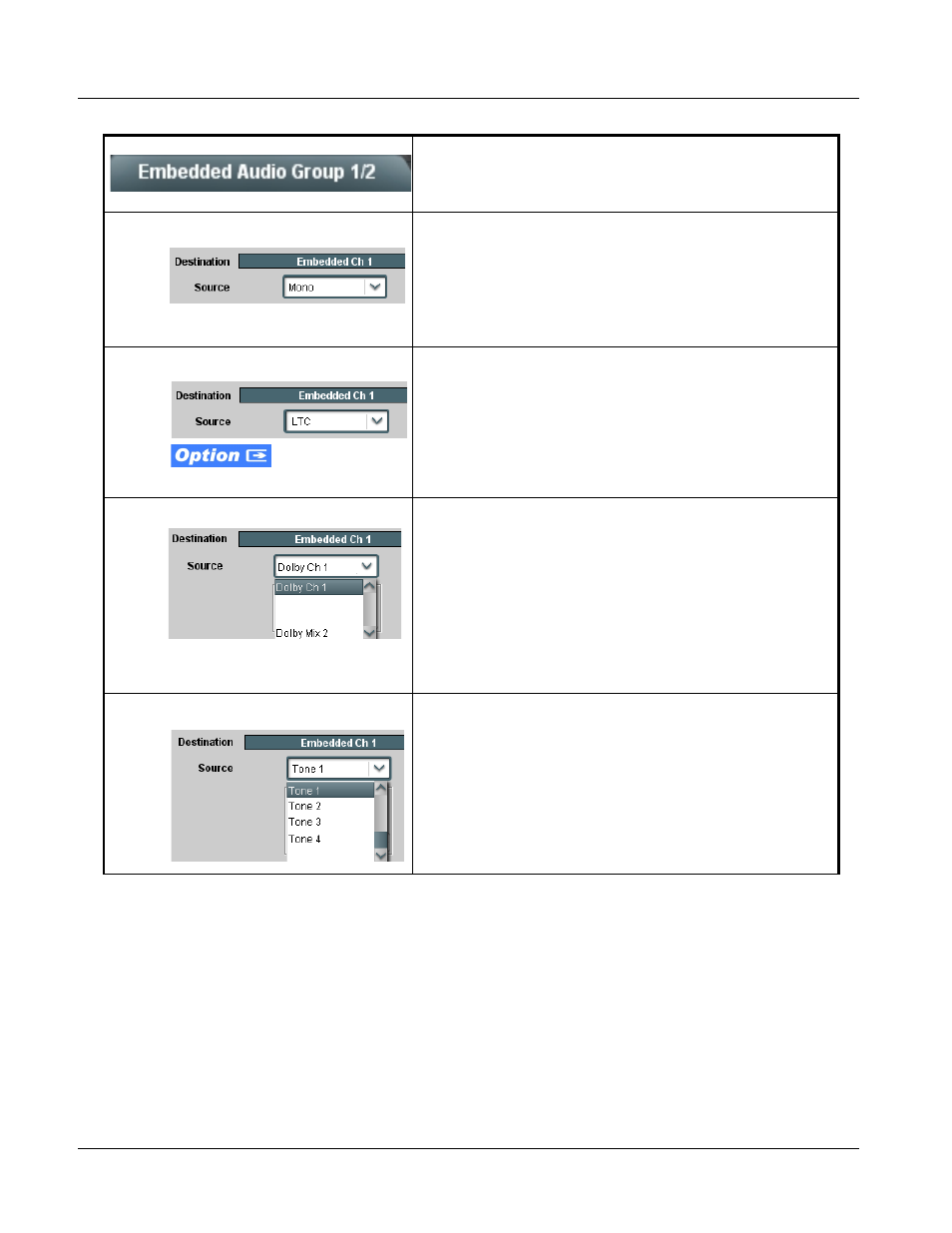

• Mono Mix as Source Mono selection in Source drop-down list allows mono mix content to be
the source for the selected destination Embedded Audio Group channel.
(In this example, the mono content is the source for destination
Embedded Ch 1)
Note: Mono mix content is set up using Mono Mixer Selection in the
Audio Mixing function). Refer to Audio Mixing function
description on page 3-32 for more information.
• Audio LTC as Source LTC selection in Source drop-down list allows any timecode format
received by the card to be outputted as audio LTC over an embedded
audio output (destination) channel.
(In this example, audio LTC is the source for destination Embedded Ch 1)
Note: • When LTC is selected as source, Gain and Mute controls are
disabled.
• Refer to Timecode function description on page 3-24 for more
information.
• Dolby ® Decoded Channel as Source (+DEC only) Dolby Ch 1 thru Dolby Ch 8 range in Source drop-down list
enables a Dolby
®
decoded channel to be the source for the selected
destination Embedded Audio Group channel.
(In this example, Dolby
®
decoded Ch 1 is the source for destination
Embedded Ch 1)
Note: Drop-down choices of Ch 1 thru Ch 8 and Mix 1/Mix 2 represent
maximum channels available. Actual active channel complement is
per received Dolby
® format and upstream encoding. Inactive
channels should not be used.
Refer to Dolby
®
E Processing and Routing Example on page 3-40
for an example of using Dolby ® decoding.
• Tone Generator 1 thru 4 as Source Tone Generator 1 thru Tone Generator 4 range in Source drop-down list
enables one of four tone generators (Tone 1 thru Tone 4) to be the source
for the selected destination Embedded Audio Group channel.
(In this example, Tone 1 (tone generator 1) is the source for destination
Embedded Ch 1)
Note: Tone generator frequencies can be independently set for the four
tone generator sources.
Refer to Tone Generator function description on page 3-37 for
more information.
Table 3-2 9081 Function Submenu List — continued
•
•
•
