2
Installing a Rear I/O Module
2-4 9081 PRODUCT MANUAL 9081-OM (V4.6)

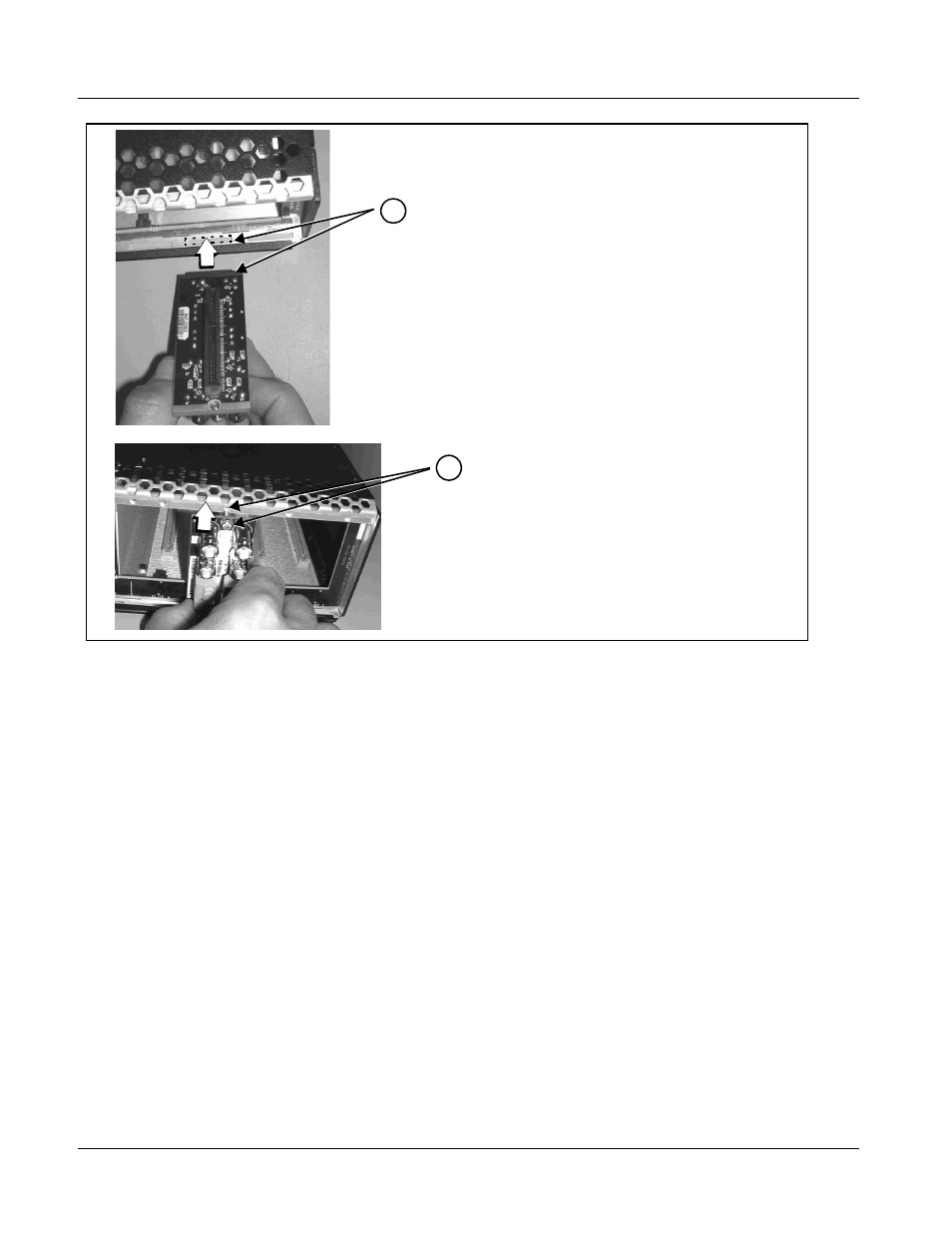

Figure 2-1 Rear I/O Module Installation
9081 Rear I/O Modules
Table 2-1 shows and describes the full assortment of Rear I/O Modules
specifically for use with the 9081.
Note: Rear I/O Modules equipped with 3-wire Phoenix connectors are supplied with
removable screw terminal block adapters. For clarity, the adapters are
omitted in the drawings below.
Align and engage mounting tab on Rear
I/O Module with the module seating slot
on rear of frame chassis.
Hold top of Rear I/O Module flush against
frame chassis and start the captive screw.
Lightly tighten captive screw.
1
2
