9081-OM (V4.6) 9081 PRODUCT MANUAL 3-33
Operating Instructions
9081 Function Submenu List and Descriptions
(continued)

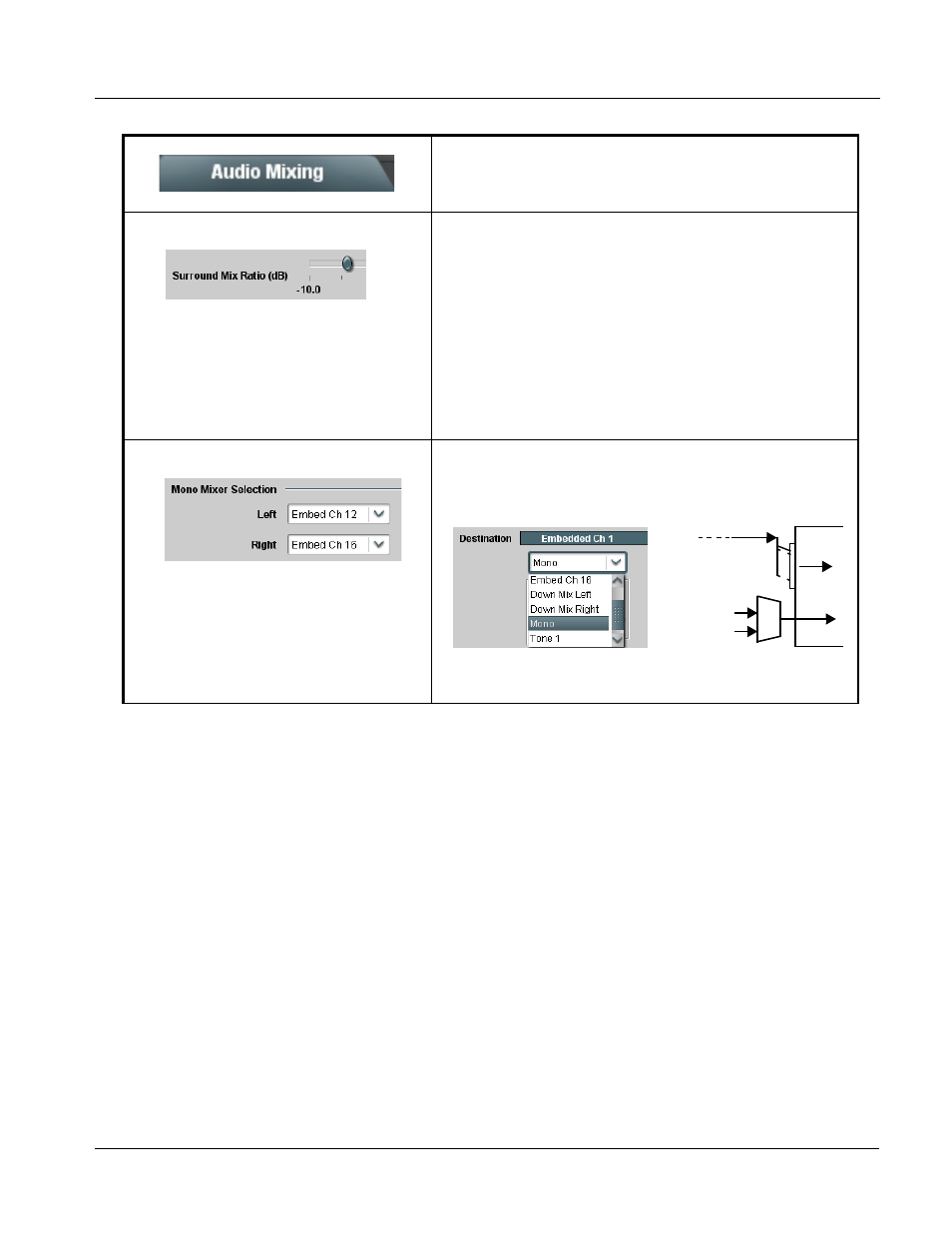

• Surround Mix Ratio Control Adjusts the attenuation ratio of surround-channel content from 5-channel
source that is re-applied as Lo and Ro content to the DM-L and DM-R
stereo mix.
• Minimum attenuation setting (-0.0 dB) applies no ratiometric reduction.
Surround-channel content is restored with no attenuation, making Lo
and Ro content more predominate in the overall mix.
• Maximum attenuation setting (-10.0 dB) applies a -10 dB ratiometric
reduction of surround-channel content. Surround-channel content is
restored at a -10 dB ratio relative to overall level, making
surround-channel content less predominate in the overall mix.
(0.0 dB to -10.0 dB range in 0.1 dB steps; default = -3 dB)
Note: Default setting of -3.0 dB is recommended to maintain
surround-channel predominance in downmix representative to that
of the original source 5-channel mix.
• Mono Mixer Selection Separate drop-down lists for Left and Right inputs allow selected
embedded input channels to provide an additional mono-mixed channel.
The resulting mono mix (Mono) is available as an audio source for any of
the 16 destination embedded output channels as shown below.
Note: Selection of any two channels for mono mixing in no way affects the
source channels themselves.
Table 3-2 9081 Function Submenu List — continued
MONO
L
Σ
R
Emb Ch 12
Emb Ch 16
Embed Ch 1 - Ch 16
