Reclocker rate selection leds – Cobalt Digital COMPASS 9212-EO 3G_HD_SD-SDI Fiber Transmitter User Manual
Page 30
3-8
••••
User Controls
9211-OE, 9212-EO User Manual
Reclocker Rate Selection LEDs
Table 3.3 provides information on the Reclocker Rate Selections (
SW1
or
SW2
) and LED
functions.

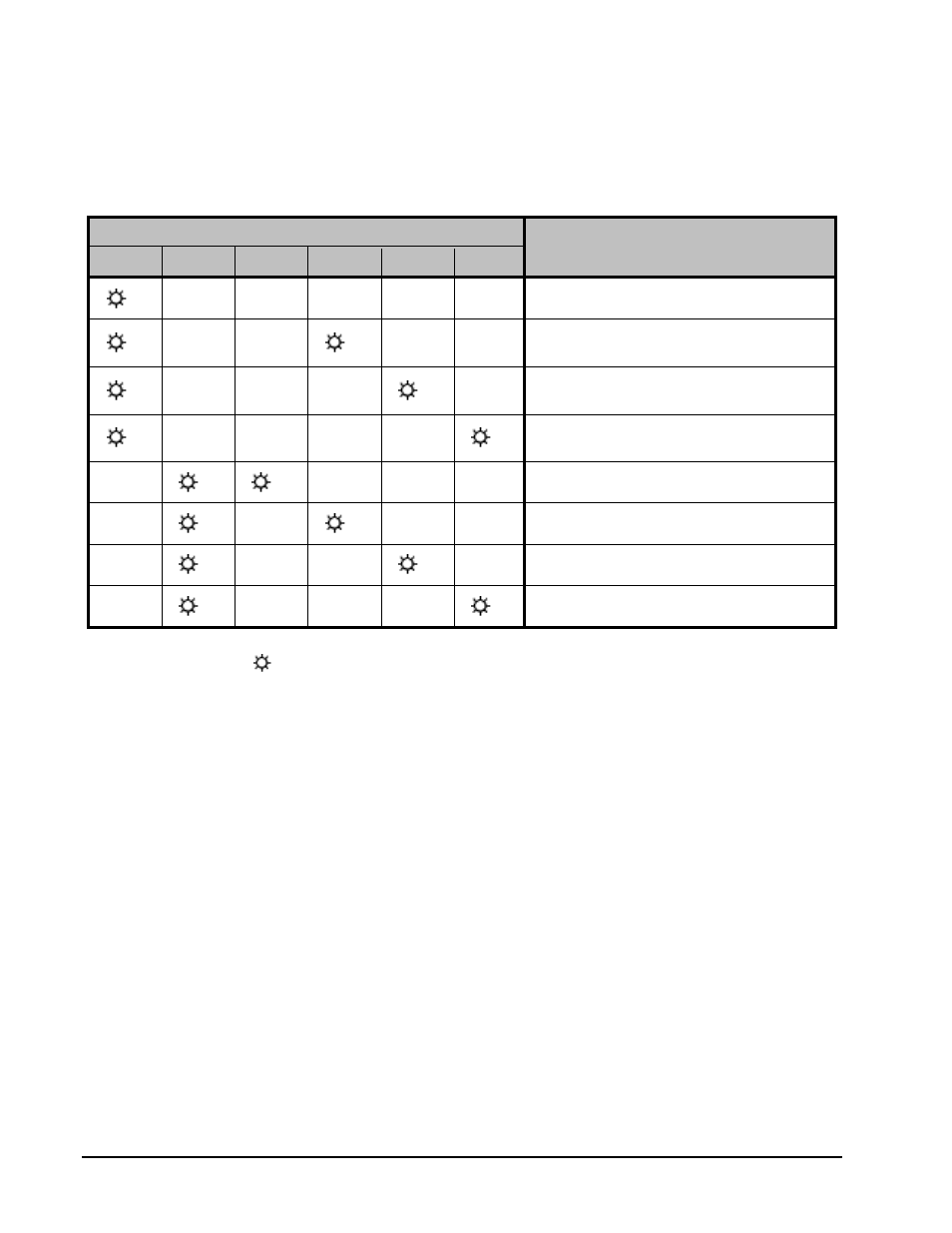

Table 3.3
Card Reclocker Rate Selection Button and LED Functions
Date Rate LED Displays
AUTO
MANUAL BYPASS
270M
1G5
3G
Description
Auto mode, card searching for valid rate
Auto mode, card detects and reclocks rate of
270Mbps
Auto mode, card detects and reclocks rate of
1.5Gbps
Auto mode, card detects and reclocks rate of
3Gbps
Card is configured for Bypass mode
Card is set to reclock 270Mbps
Card is set to reclock 1.5Gbps
Card is set to reclock 3Gbps
= Illuminated LED
