9211-OE, 9212-EO User Manual Installation and Setup •••• 2-7
9212-EO Cabling Overview
In 20-slot frames, the 9212-EO is used with the following Rear Modules:
• R2-6602 Full Rear Module — Each 9212-EO occupies two slots and provides an optical
output, an SDI input, and five SDI outputs. Refer to Figure 2.7.
• RM20-2121-B Split Rear Module — Each 9212-EO occupies one slot and provides one
optical output, one SDI input, and two SDI outputs. Refer to Figure 2.8.

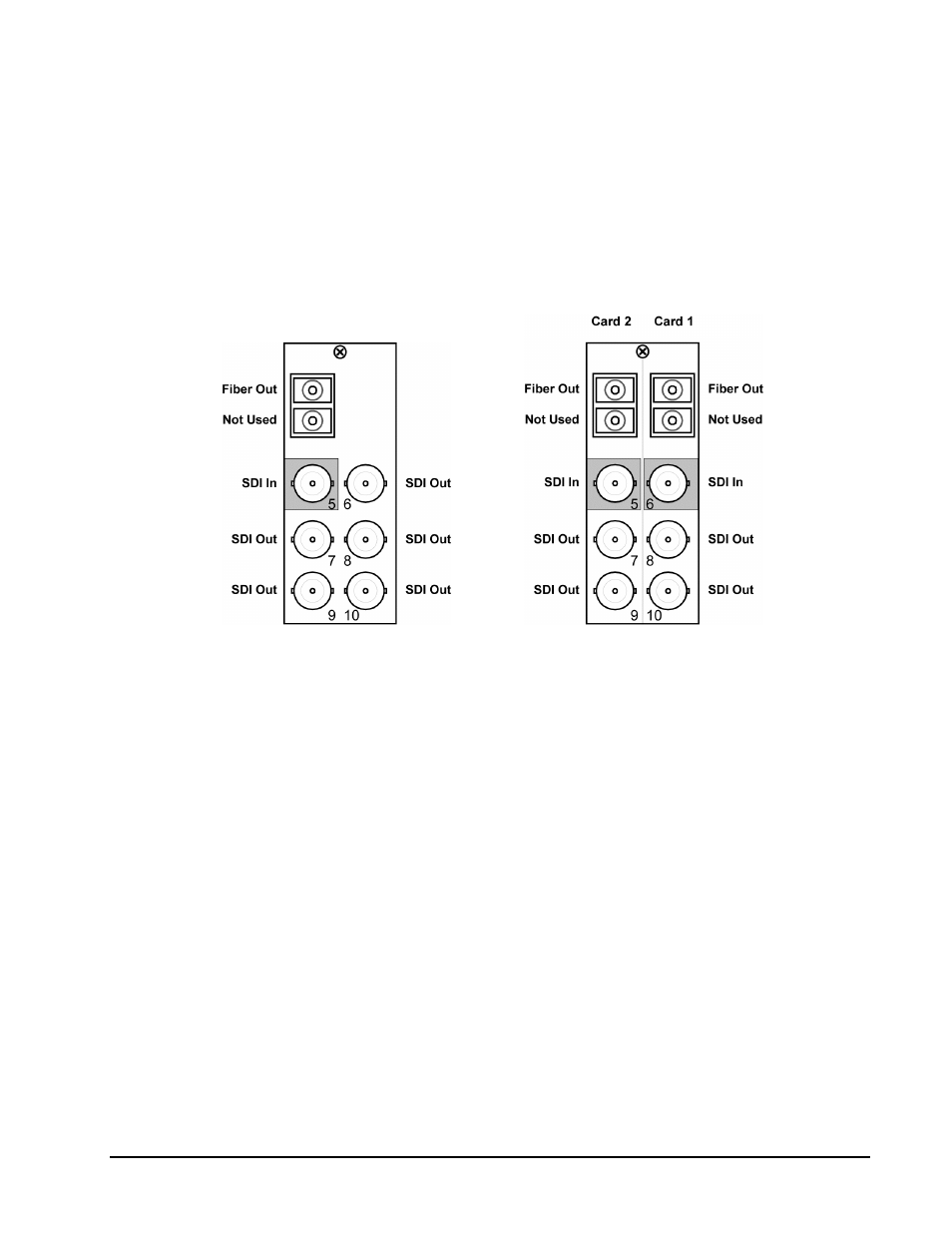

Figure 2.7 Cable Connections for the R2-6602
Rear Module
Figure 2.8 Cable Connections for the RM20-
2121-B Rear Module
