9083 Function Submenu List and Descriptions
3-52
9083 PRODUCT MANUAL
9083-OM (V4.5)
Dolby
®
E Processing and Routing Example (9083-DEC only)
Figure 3-7 shows an example of using the 9083-DEC
Audio Input Controls
,
Dolby Decoder
, and
Embedded Audio Group 1/2
functions to decode a
received Dolby
®
E encoded pair and route the decoded channels. The
example also shows routing the metadata to the 9083-DEC
DOLBY META
output.
Note that the source and destination correlations shown here are only
examples; any embedded channel pair carrying encoded Dolby
®
data can be
decoded. Decoded Dolby
®
channels can in turn be routed route to any
embedded channel destination.

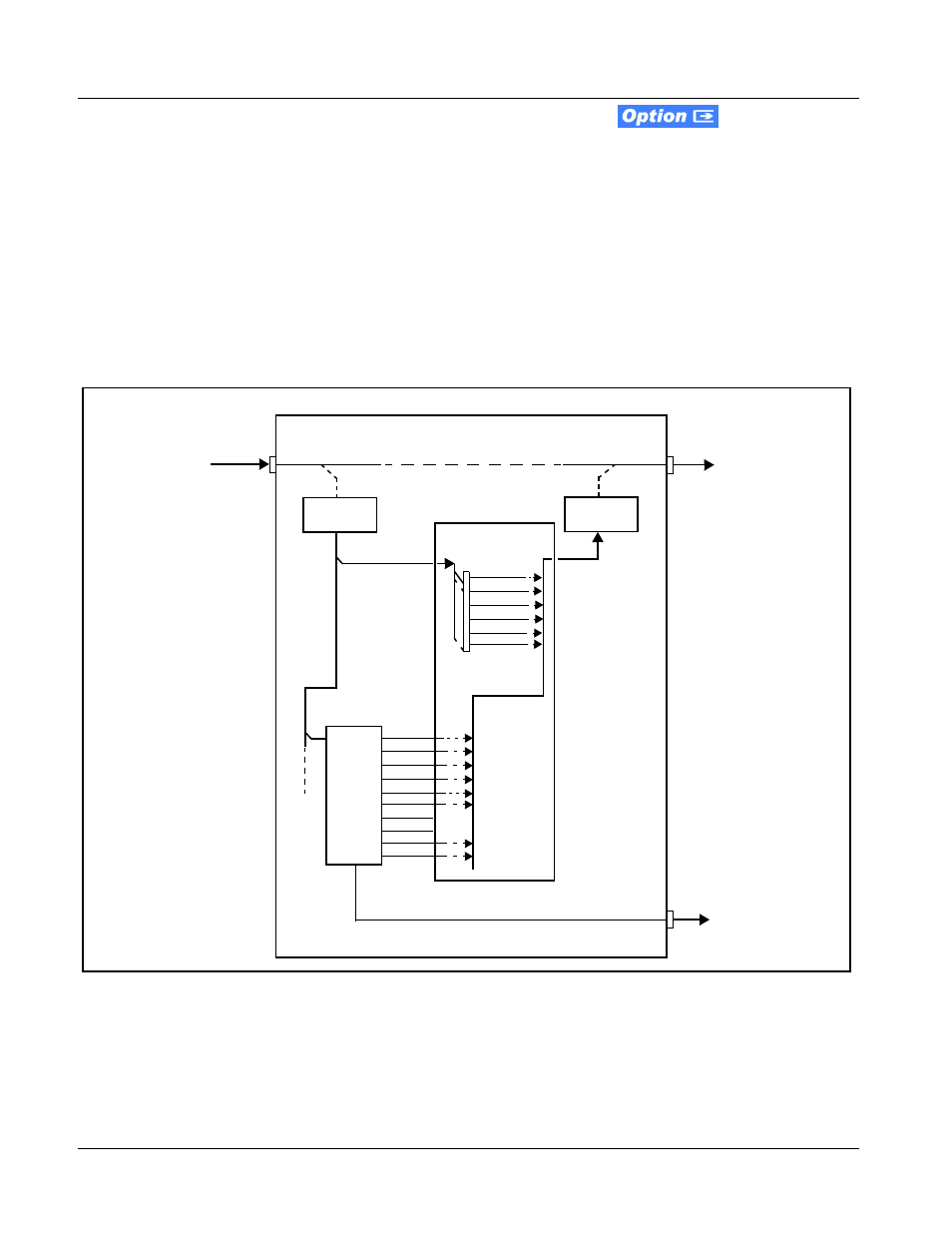

Figure 3-7 Dolby
®
E Processing Example (Sheet 1 of 2)
In the example here, Dolby
®
E 5.1+2 data on embedded pair 7/8 is to be
decoded and embedded (using spare embedded channels 9 thru 16) along with
the existing embedded audio channels (embedded channels 1 thru 6). Figure
3-7, sheet 2 shows the 9083-DEC control settings (using DashBoard™) that
result in this routing.
Embed Ch 1
Embed Ch 2
Embed
Ch Pair 7 + 8
SDI IN
Audio
De-Embed
Embed Ch 3
Embed Ch 4
Embed Ch 5
Audio Embed/
Routing
Embed Ch 9
Embed Ch 10
Audio
Embed
SDI OUT
9083-DE
Video Feed
(with six
embedded audio
channels and
Dolby
®
encoded
pair)
Video Feed (with
six original
embedded audio
channels and
added Dolby
®
5.1+2 embedded
channels)
Embed Ch 11
Embed Ch 12
Embed Ch 13
Embed Ch 14
Embed Ch 15
Embed Ch 16
Embed Ch 6
Dolby
Decode
Dolby Ch 1
Dolby Ch 2
Dolby Ch 3
Dolby Ch 4
Dolby Ch 5
Dolby Ch 6
Dolby Ch 7
Dolby Ch 8
Dolby Mix 1
Dolby Mix 2
RS-485 Dolby
®
Metadata
DOLBY
META
[not used]
[not used]
