9083-OM (V4.5) 9083 PRODUCT MANUAL 3-23
Operating Instructions

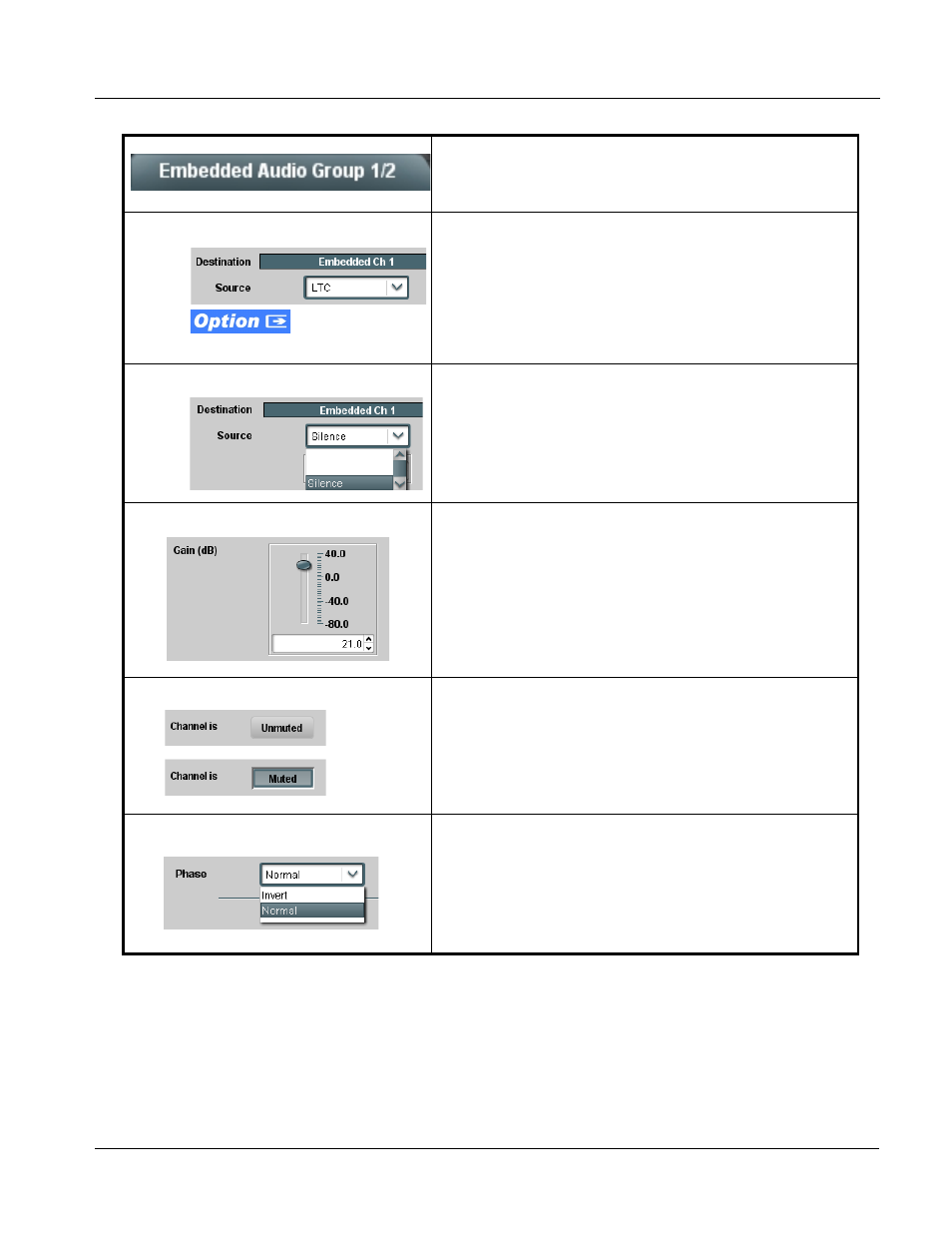

9083 Function Submenu List and Descriptions
(continued)
• Audio LTC as Source LTC selection in Source drop-down list allows any timecode format
received by the card to be outputted as audio LTC over an embedded
audio output (destination) channel.
(In this example, audio LTC is the source for destination Embedded Ch 1)
Note: • When LTC is selected as source, Gain and Mute controls are
disabled.
• Refer to Timecode function description on page 3-37 for more
information.
• Silence (Mute) as Source Silence selection in Source drop-down list mutes the selected destination
Embedded Audio Group channel. Use this setting for unused
destination channels.
(In this example, silence (muting) is applied to Embedded Ch 1)
• Gain (dB) Control Adjusts and displays relative gain (in dB) applied to the corresponding
destination Embedded Audio Group channel.
(-80 to +40 dB range in 0.1 dB steps; unity = 0.0 dB)
• Mute Control Allows pushbutton On/Off channel muting while saving all other settings.
• Phase Control Selects between Normal and Invert phase (relative to source original
phase) for the destination Embedded Audio Group channel.
Table 3-2 9083 Function Submenu List — continued
