Page 62

3
9083 Function Submenu List and Descriptions
3-20
9083 PRODUCT MANUAL
9083-OM (V4.5)
Embedded Audio Group 1/2
Selects the audio source for each embedded audio
channel 1 thru 8 (Embedded Audio Groups 1 and 2).
Also provides Gain, Phase Invert, and Muting controls
for each channel.
Table 3-2
9083 Function Submenu List — continued

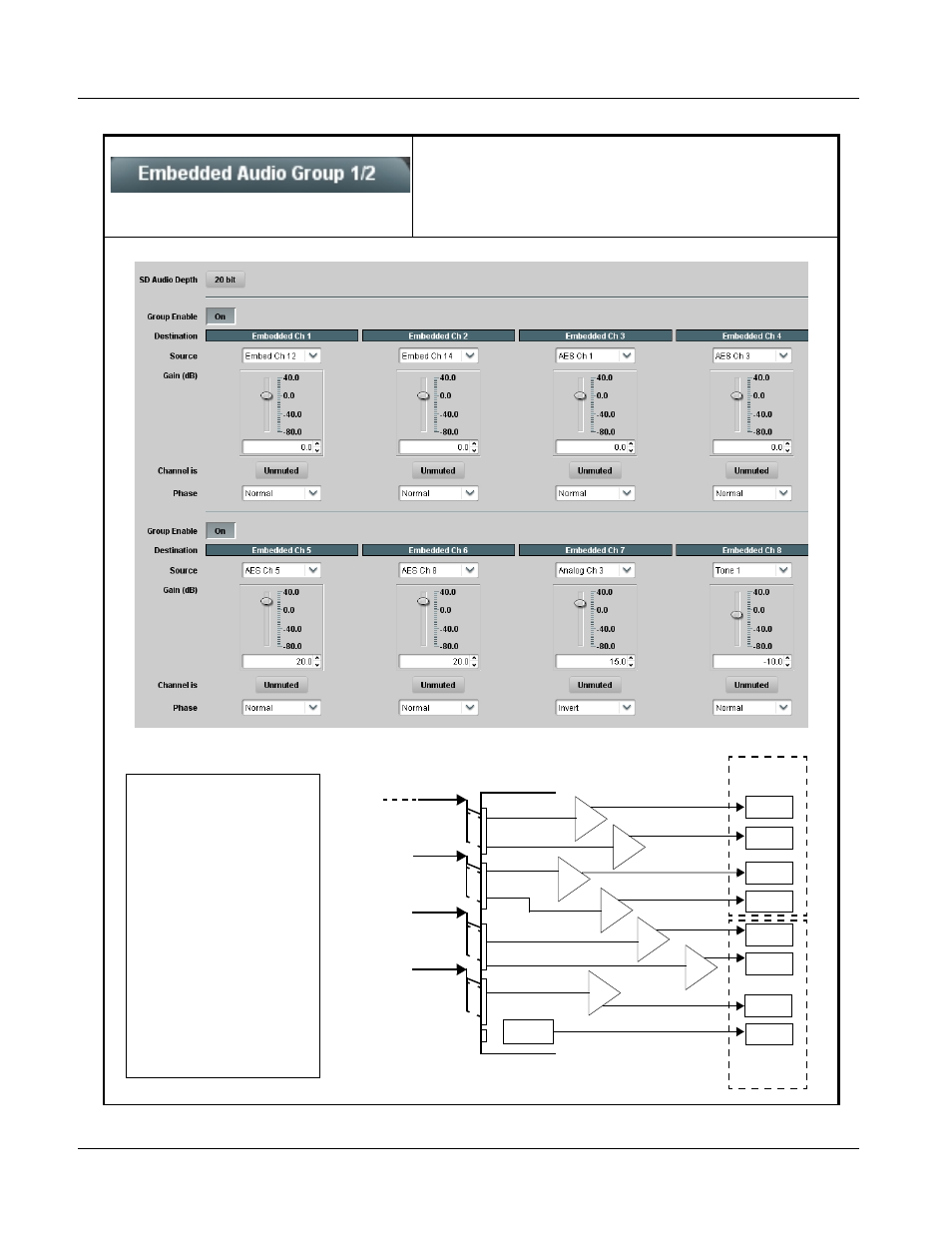

The example above shows
various Source selections and
individual audio control settings
for various audio sources fed to
the Destination channels
Embedded Ch 1 thru
Embedded Ch 8 in Embedded
Audio Groups 1 and 2, with the
resulting setup (right).
The source-to-destination
correlation shown here is only an
example; any of the sources on
the left can connect to any of the
destinations on the right, or to
Embedded Audio Groups 3 and
4 (not shown here). Additional
sources not shown here are also
available. These are described
on the following pages.
The controls shown here are
described in detail on the
following pages.
Embed Ch 12
Embedded
Audio Group 1
AES I/O (1-4)
AES IN (5-8)
AN-AUD
IN (1-8)
0 dB
0 dB
0 dB
0 dB
20 dB
20 dB
15 dB
TG1
+
+
+
+
+
+
–
-10 dB
Embedded
Channels 1 – 16
Embed Ch 14
AES Ch 1
AES Ch 3
AES Ch 5
AES Ch 8
CH1
CH2
CH3
CH4
CH5
CH6
CH7
CH8
Embedded
Audio Group 2
Analog Ch 3
