9083 Function Submenu List and Descriptions
3-32
9083 PRODUCT MANUAL
9083-OM (V4.5)

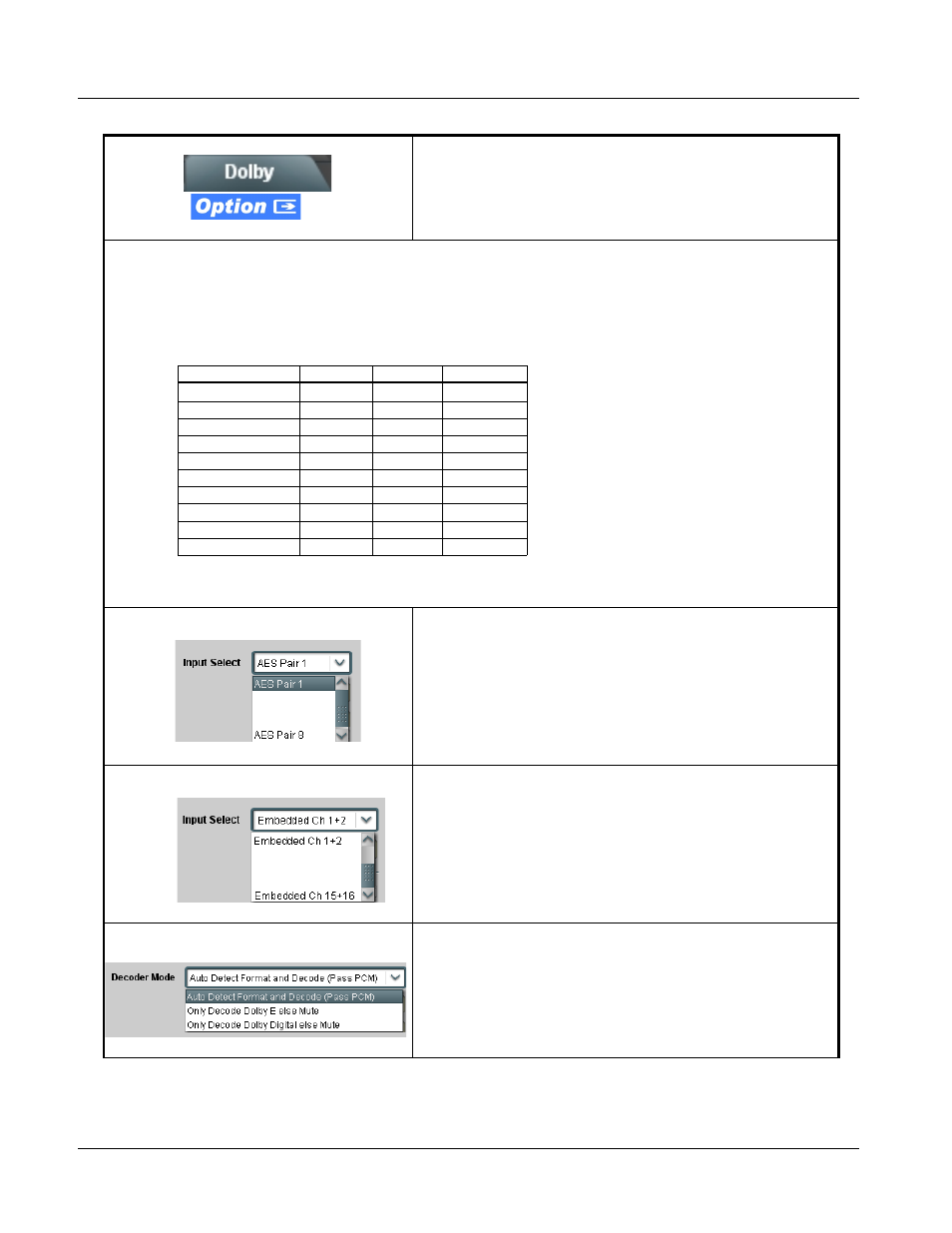

Dolby Decoder
(9083-DEC only) Routes a Dolby
®
encoded pair to the
Dolby
®
decoder, and provides Dolby
®
configuration
display and metadata handling controls.
Note: •
The Dolby tab controls described here appear only on card equipped with Dolby Decoder option (-DEC).
•
If necessary, see Dolby
®
E Processing and Routing Example on page 3-52 for an example of using and routing
Dolby
®
decoding.
•
Decoded channels shown in DashBoard™ correlate to typical channel designations as shown below. Note that
channel designations are a function of encoding. Based on encoding, actual channel designations may vary from the
examples shown here.
• See other important notes in this subsection regarding the proper use of metadata embedding tools
available with the decoder function.
• AES Pair as Input
AES Pair 1 thru AES Pair 8 range in Input Select drop-down list selects
an AES Pair (1 thru 8) to be the input for the Dolby
®
decoder.
(In this example, AES Pair 1 is the input for the Dolby
®
decoder)
• Embedded Channel Pair as Input
Embedded Ch 1+2 thru Ch 15+16 range in Input Select drop-down list
selects an embedded channel pair (1+2 thru 15+16) to be the input for the
Dolby
®
decoder.
(In this example, embedded channel pair 1+2 is the input for the Dolby
®
decoder)
• Decoder Mode
Using the drop-down list, selects the action to take in presence or
absence of Dolby
®
E or Digital source from the choices shown on the left.
Table 3-2
9083 Function Submenu List — continued
Decoder Channels
E5.1+2
E7.1+2
E8x1
Ch 1
LF
LF
Ch 1
Ch 2
RF
RF
Ch 2
Ch 3
C
C
Ch 3
Ch 4
LFE
LFE
Ch 4
Ch 5
LS
LS
Ch 5
Ch 6
RS
RS
Ch 6
Ch 7
Aux 1
LB
Ch 7
Ch 8
Aux 2
RB
Ch 8
Mix 1
Lo
Lo
Mono Mix 1
Mix 2
Ro
Ro
Mono Mix 2
•
•
•
•
•
•
