Operating Instructions
Troubleshooting
9083 Processing Error Troubleshooting
Table 3-4 provides 9083 processing troubleshooting information. If the 9083
card exhibits any of the symptoms listed in Table 3-4, follow the
troubleshooting instructions provided.
In the majority of cases, most errors are caused by simple errors where the
9083 is not appropriately set for the type of signal being received by the card.
Note:
The error indications shown below are typical for the corresponding error con-
ditions listed. Other error indications not specified here may also be displayed
on DashBoard™ and/or the 9083 card edge status indicators.
Note:
Where errors are displayed on both the 9083 card and network remote con-
trols, the respective indicators and displays are individually described in this
section.

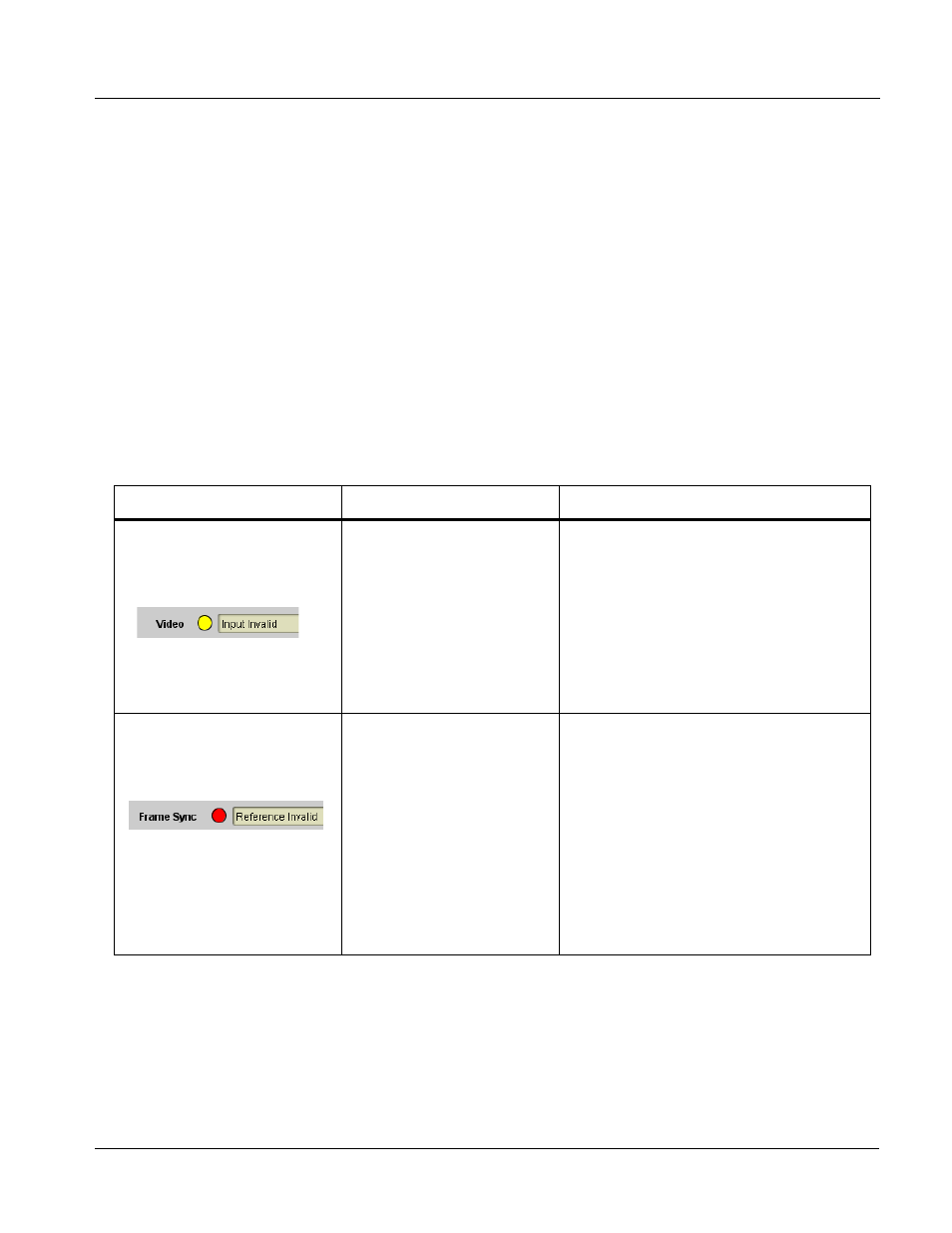

Table 3-4
Troubleshooting Processing Errors by Symptom
Symptom
Error/Condition
Corrective Action
• DashBoard™ shows Video
yellow icon and Input Invalid
message in 9083 Card Info
pane.
• Card edge Input Format LEDs
show continuous cycling.
No video input present
Make certain intended video source is
connected to appropriate 9083 card video
input. Make certain BNC cable connections
between frame Rear I/O Module for the card
and signal source are OK.
• DashBoard™ shows Frame
Sync red icon and Reference
Invalid message in 9083 Card
Info pane.
• Card edge red ERR indicator
illuminated.
Frame sync reference not
properly selected or not being
received
• If external frame sync reference is not
intended to be used, make certain the
Framesync Enable selection list is set to Off
or Input Video as desired.
• If external frame sync reference is intended
to be used, make certain selected external
frame sync reference is active on frame sync
frame bus. (External reference signals
Reference 1 and Reference 2 are distributed
to the 9083 and other cards via a frame bus.)
Refer to Framesync function submenu tab
on page 3-15 for more information.
