9083 Function Submenu List and Descriptions
3-28
9083 PRODUCT MANUAL
9083-OM (V4.5)
(continued)

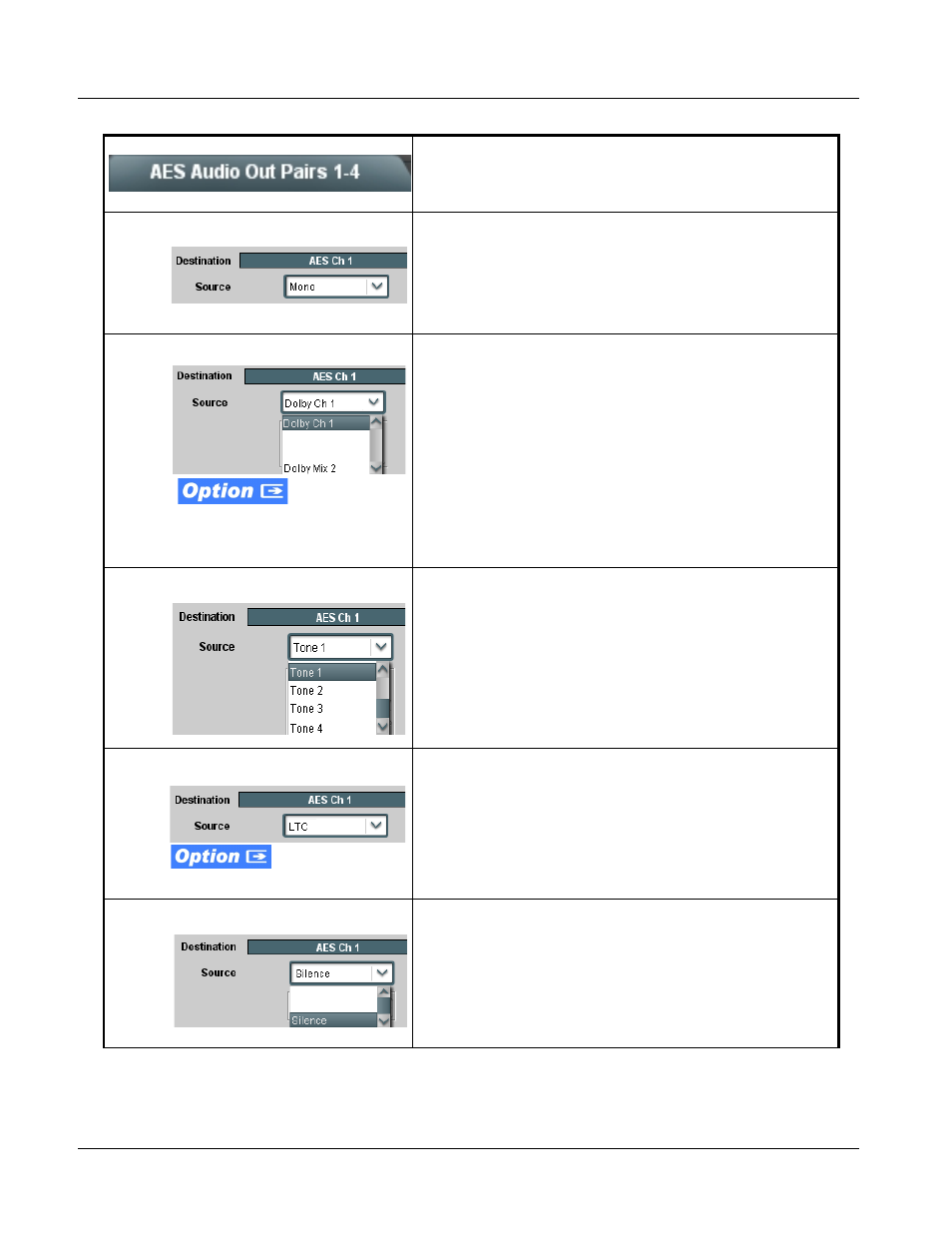

• Mono Mix as Source
Mono selection in Source drop-down list allows mono mix content to be
the source for the selected destination AES channel.
(In this example, the mono content is the source for destination AES Ch 1)
Note: Mono mix content is set up using Mono Mixer Selection in the
Audio Mixing function). Refer to Audio Mixing function
description on page 3-41 for more information.
• Dolby
®
Decoded Channel as Source
(9083-DEC only) Dolby Ch 1 thru Dolby Ch 8 range in Source
drop-down list enables a Dolby
®
decoded channel to be the source for the
selected destination AES channel.
(In this example, Dolby
®
decoded Ch 1 is the source for destination AES
Ch 1)
Note: Drop-down choices of Ch 1 thru Ch 8 and Mix 1/Mix 2 represent
maximum channels available. Actual active channel complement is
per received Dolby
®
format and upstream encoding. Inactive
channels should not be used.
Refer to Dolby Metadata function description on page 3-31 for
more information.
Refer to Dolby
®
E Processing and Routing Example on page 3-52
for an example of using Dolby
®
decoding.
• Tone Generator 1 thru 4 as Source
Tone Generator 1 thru Tone Generator 4 range in Source drop-down list
enables one of four tone generators (Tone 1 thru Tone 4) to be the source
for the selected destination AES channel.
(In this example, Tone 1 (tone generator 1) is the source for destination
AES Ch 1)
Note: Tone generator frequencies can be independently set for the four
tone generator sources.
Refer to Tone Generator function description on page 3-46 for
more information.
• Audio LTC as Source
LTC selection in Source drop-down list allows any timecode format
received by the card to be outputted as audio LTC over an AES audio
output (destination) channel.
(In this example, audio LTC is the source for destination AES Ch 1)
Note: • When LTC is selected as source, Gain and Mute controls are
disabled.
• Refer to Timecode function description on page 3-37 for more
information.
• Silence (Mute) as Source
Silence selection in Source drop-down list mutes the selected destination
AES channel. Use this setting for unused destination channels.
(In this example, silence (muting) is applied to AES Ch 1)
Table 3-2
9083 Function Submenu List — continued
•
•
•
