Accessing the 9362 Card via Remote Control
3-4 9362 PRODUCT MANUAL 9362-OM (V4.1)

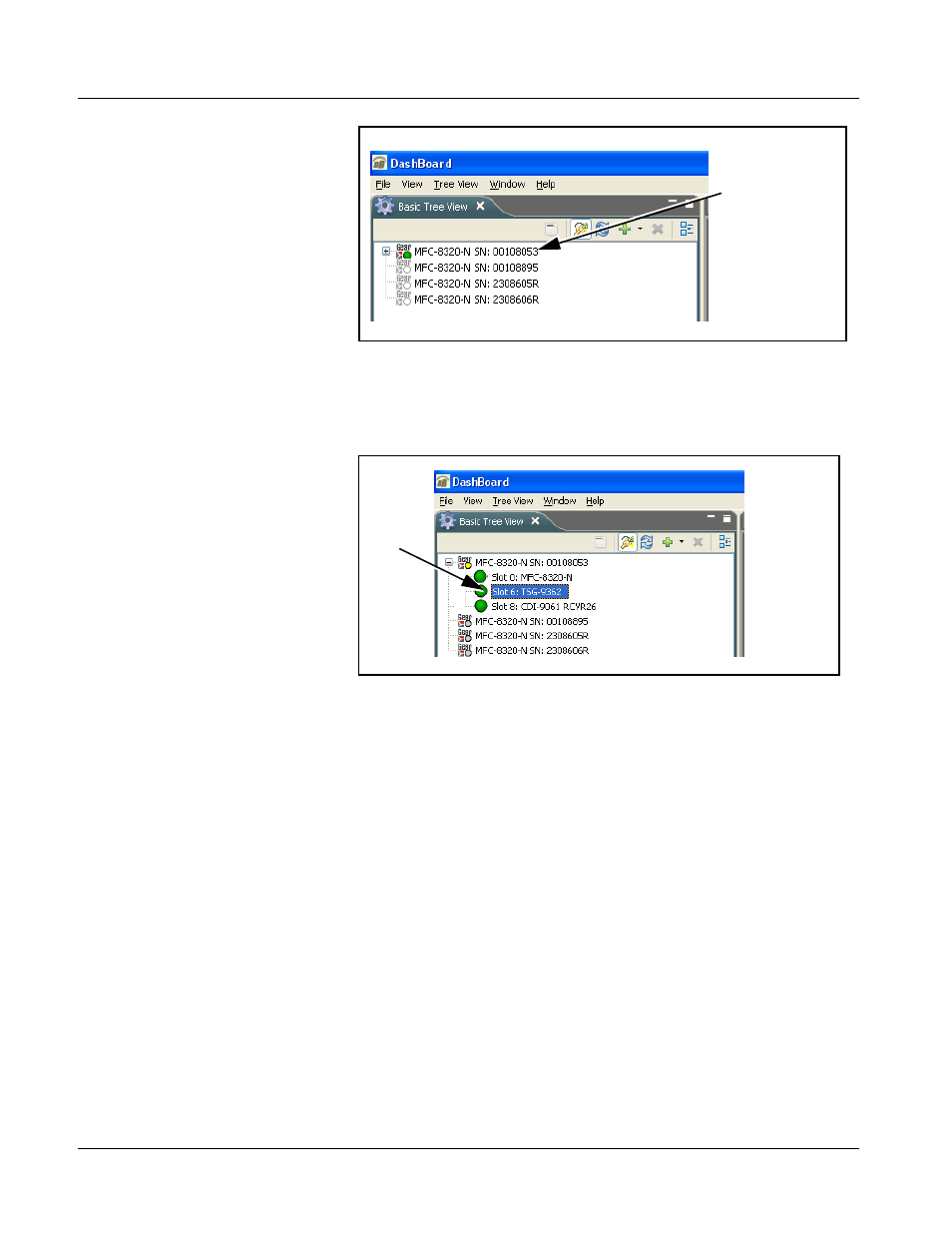

3. As shown below, expand the tree to access the cards within the frame.
Click on the card to be accessed (in this example,
“Slot 6: TSG-9362”).
.
As shown on the next page, when the card is accessed a DashBoard™ its
function submenu screen showing tabs for each function is displayed.
(The particular submenu screen displayed is the previously displayed
screen from the last time the card was accessed by DashBoard™).
